- Page 1 Belvedere Umbrella Operating Instructions Caravita...
- Page 2 Shade Factor specialises in custom made, high-performance shading products. We are proud to be the exclusive agents of Caravita and the Warema Group in Australia and engage in projects around the world. Caravita is an international leading brand of high-grade, customisable outdoor umbrellas, known for quality and design.
- Page 3 Foreword Foreword Thank you for choosing our product. By selecting a CARAVITA product, you purchased a quality product that was designed to highest standards with the best materials. Read the instructions in this document carefully in order to set up the product safely. Be sure to comply with the safety instructions described here and do not make changes to the product without permission.
-
Page 4: Basic Safety Instructions
It is important to follow these instructions in the interest of personal safety. Failure to comply with these instructions when operating the product may result in personal injury and/or property damage. Failure to comply with these instructions relieves CARAVITA of liability. Warnings are marked in the instructions with this symbol or a similar symbol. - Page 5 Introduction DANGER Danger of suffocation from packaging materials Plastic film, polystyrene parts and small parts from the packaging, etc., can be dangerous for children to play with. Keep children away from small parts. Do not leave the packaging material lying about. CAUTION Danger of injury from tipping over Lack of care can cause the parasol to tip over on account of its high weight.
-
Page 6: Product Information

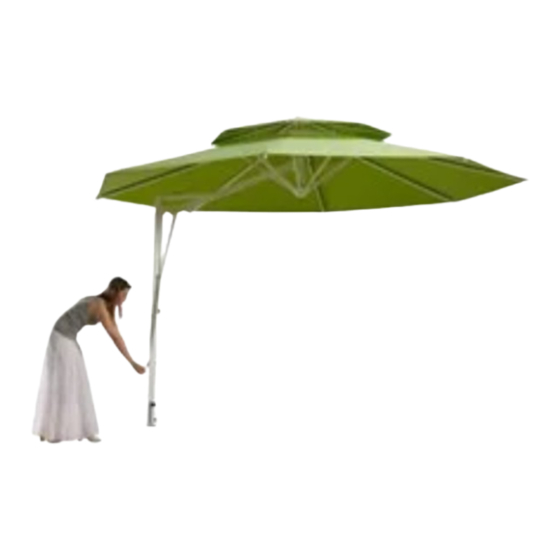

Product information Product description The Belvedere parasol provides protection against direct sunlight and some protection against inclement weather. The product is installed in a fixed stainless steel base and, depending on the model, is operated using a crank-operated cable winch or a lever mechanism. -
Page 7: Operation
Operation Operation Opening the canopy The plastic nets attached to the ribs are intended to protect against transport damage. After the canopy is opened, they can be removed carefully with a knife or scissors. WARNING Danger of injury to bystanders People located within the opening radius of the canopy may be injured when the canopy is opened. - Page 8 Operation 3 Pull the lever down. The canopy opens. 4 Push the lever all the way down. 5 Lock the lever using the locking rotary knob. INFO The locking rotary knob prevents the product from folding together accidentally. Correcting the parasol fabric tension When levelling, the tension in the parasol fabric may decrease or increase.
- Page 9 Operation The counter nuts on the turnbuckle are open. 1 Hold the cable on the threaded terminal using pliers. 2 Turn the adjuster with pliers or a splint. Right-hand rotation = tension increases. Left-hand rotation = tension decreases 3 Secure the adjuster using the counter nuts. Levelling the canopy (optional) The canopy can be levelled.
- Page 10 Property damage from abrasion of the parasol fabric Permanent fluttering in the wind can damage the parasol fabric due to abrasion against the ribs. Claims for compensation cannot be asserted against CARAVITA for this type of damage. Always secure the closed canopy using the strap.
- Page 11 Operation 1 Unlock the locking rotary knob. 2 Push the lever up slowly. The canopy closes. 4 Release the traction cable from the cleat. 5 Keep the traction cable taut with one hand. 6 Pull the locking pin out of the mechanism with the other hand. 4000258 [v0]/2022-01-01 37 | 88...
- Page 12 Operation 7 Pull the parasol fabric out from between the ribs to prevent the fabric from being pinched or damaged. 8 Always secure the closed canopy using the strap. 9 Pull the protective cover over the canopy. INFO The telescope rod helps perform operating tasks such as pulling on the protective cover.
- Page 13 Operation 2 Open the knurled screw on the telescope rod. 3 Extend the telescope rod to the necessary length. 4 Tighten the knurled screw on the telescope rod. 5 Insert the telescope rod into the pocket of the protective cover. 4000258 [v0]/2022-01-01 39 | 88...
- Page 14 Operation 6 Lift the protective cover over the parasol using the telescope rod. 7 Attach the ring screw of the telescope rod to the key ring of the zipper of the protective cover. 8 Pull the zipper down. NOTICE Property damage due to pulling too forcefully on the zipper The closure of the protective cover could be damaged.
-
Page 15: Care Instructions
Care instructions Care instructions Parasol fabric NOTICE Property damage to the parasol fabric due to incorrect cleaning procedure and cleaning agent The acrylic fabric of the canopy is impregnated and requires a special cleaning procedure and cleaning agent. Only wash the parasol fabric using cold water. Never use a high pressure washer to clean the parasol fabric. - Page 16 Property damage from abrasion of the parasol fabric Permanent fluttering in the wind can damage the parasol fabric due to abrasion against the ribs. Claims for compensation cannot be asserted against CARAVITA for this type of damage. Always secure the closed canopy using the strap.
-
Page 17: Troubleshooting
Troubleshooting Troubleshooting If the parasol exhibits malfunctions that cannot be eliminated by following the steps below, contact us at the CARAVITA service hotline. The contact data can be found on the first and last pages of these instructions The following malfunctions can occur when using the parasol:... - Page 18 Victoria Updated 25.01.2023 Boonwurrung Country 6 Plane Tree Avenue Dingley Village VIC 3172 03 9558 3006 New South Wales Kuring-gai Country 7A Green Street Brookvale NSW 2100 02 9938 3006 sales@shadefactor.com.au Please note: While we aim to ensure the details are correct at time of release, Shade Factor reserves the right to modify information shown without prior notification.
