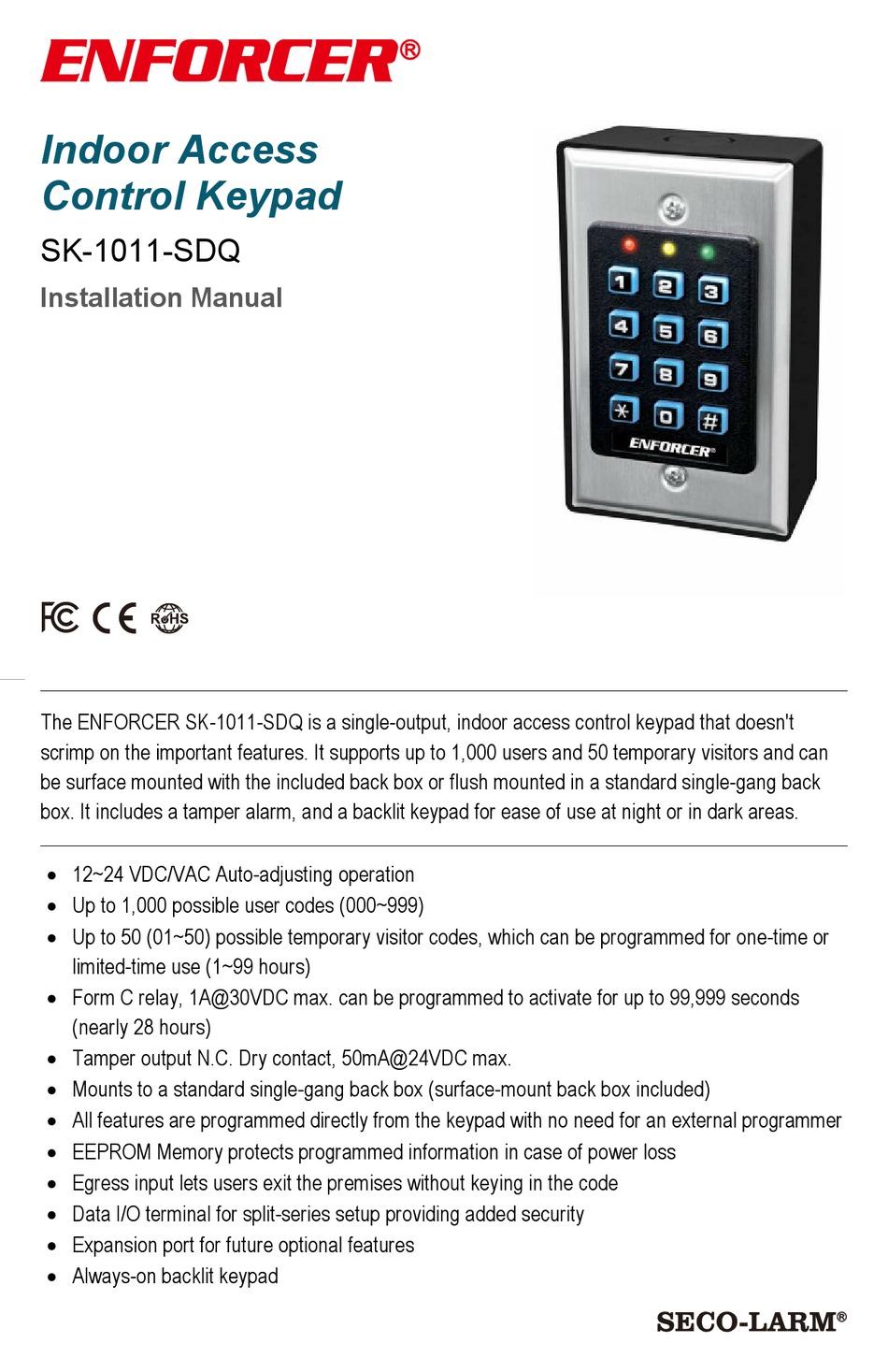

Indoor Access
Control Keypad
SK-1011-SDQ
Installation Manual

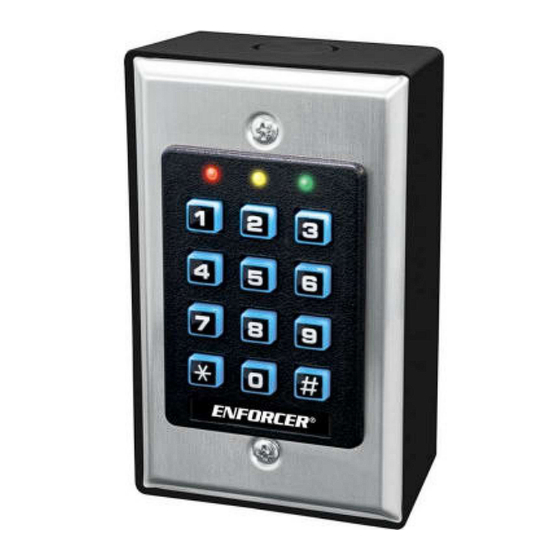

The ENFORCER SK-1011-SDQ is a single-output, indoor access control keypad that doesn't
scrimp on the important features. It supports up to 1,000 users and 50 temporary visitors and can
be surface mounted with the included back box or flush mounted in a standard single-gang back
box. It includes a tamper alarm, and a backlit keypad for ease of use at night or in dark areas.
 12~24 VDC/VAC Auto-adjusting operation
 Up to 1,000 possible user codes (000~999)
 Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or
limited-time use (1~99 hours)
 Form C relay, 1A@30VDC max. can be programmed to activate for up to 99,999 seconds
(nearly 28 hours)
 Tamper output N.C. Dry contact, 50mA@24VDC max.
 Mounts to a standard single-gang back box (surface-mount back box included)
 All features are programmed directly from the keypad with no need for an external programmer
 EEPROM Memory protects programmed information in case of power loss
 Egress input lets users exit the premises without keying in the code
 Data I/O terminal for split-series setup providing added security
 Expansion port for future optional features
 Always-on backlit keypad

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM ENFORCER SK-1011-SDQ

Summary of Contents for SECO-LARM ENFORCER SK-1011-SDQ

  • Page 1 SK-1011-SDQ Installation Manual The ENFORCER SK-1011-SDQ is a single-output, indoor access control keypad that doesn't scrimp on the important features. It supports up to 1,000 users and 50 temporary visitors and can be surface mounted with the included back box or flush mounted in a standard single-gang back box.

  • Page 2: Quick Installation Guide

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 3: Quick Programming Guide

    ID #1. 5. Set output delay time (skip this step if the default value of 5 seconds is acceptable) NOTE: sets the output delay time for 3 seconds. 6. Exit programming mode SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Total (max.) 90mA Output 1, Form C 1A@30VDC Outputs Tamper 50mA@24VDC Egress input N.O. Ground Operating humidity 5~95%, non-condensing Operating temperature -4°~154° F (-20°~70° C) Dimensions (including back box) "x2 "x1 " (117x73x49 mm) Weight 6-oz (170g) SECO-LARM U.S.A., Inc.

  • Page 5: Overview

    Keypad sounds can be programmed ON or OFF (see pg. 19). † Output relay activation sounds can be programmed for 1-second long beep, 2 short beeps, or OFF (see pg. 20). ‡ Amber LED flashing during standby mode can be programmed ON or OFF (see pg. 20). SECO-LARM U.S.A., Inc.

  • Page 6: Installation

    3. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. 4. The user’s guide for this keypad is located on pg. 24 of this manual. 5. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc.

  • Page 7: Wiring Diagram

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 8: Getting Ready To Program

    LED will return to flashing, indicating standby mode, upon exiting programming mode. NOTE: DO NOT DISCONNECT THE KEYPAD FROM POWER WHILE IN PROGRAMMING MODE. Disconnecting the keypad while in programming mode could cause a keypad memory error. SECO-LARM U.S.A., Inc.

  • Page 9: Programming Format And Default Programming Values

    Center LED flashes on standby Egress delay/warning/alarm Egress output happens immediately NOTE The direct access to programming (DAP) code 2828 (see pg. 22) and the system restore code 9999 (see pg. 10) are fixed and cannot be changed, even via programming. SECO-LARM U.S.A., Inc.

  • Page 10: System Restore

     The master code, super user code, and user codes cannot be the same.  If the keypad is set for auto-entry mode, user codes will need to be the same number of digits as the master code (see Programming the User Code Entry Mode on pg. 19). SECO-LARM U.S.A., Inc.

  • Page 11: The Super User Code

    1. Make sure the keypad is in programming mode (see pg. 8). 2. Enter Using the Super User Code In these examples, assume the super user code is 2580. Activate or deactivate the output (timed or toggle, depending on programming). SECO-LARM U.S.A., Inc.
  • Page 12  For safety reasons, the egress button works regardless of whether the output is enabled or disabled via the super user code.  The super user code continues to operate the output even while that output is disabled. SECO-LARM U.S.A., Inc.

  • Page 13: Programming User Codes

     The master, super user, and user codes cannot be the same. Examples 1. Program user code 2275 for user ID #010 for the output. 2. Delete user code stored in position #002 for the output. Delete all users for the output. SECO-LARM U.S.A., Inc.

  • Page 14: Programming Visitor Codes

    1. Set the visitor code for ID #1 to 1268 and make it a one-time code. 2. Set the visitor code for ID #2 to 1378 and make it valid for three hours. Delete the visitor code for ID #2 from memory. SECO-LARM U.S.A., Inc.

  • Page 15: Programming The Output Mode And Duration

    Examples In these examples, assume that the super user code is 2580. 1. In programming mode, set the output to toggle. 2. In programming mode, set the output to 60 seconds. 3. Reset the output timer. SECO-LARM U.S.A., Inc.

  • Page 16: Programming The Real-Time Clock

     If the auto-disable time is programmed, losing power will cause the keypad to beep 3 times every 5 seconds. To deactivate this alert, either reset the real-time clock or clear the auto- disable time.  If the auto-disable time is not programmed, losing power will not cause the keypad to beep. SECO-LARM U.S.A., Inc.

  • Page 17: Programming The Auto-Disable Time

    (24-hour) time format, from 00:00 to 23:59. End Time  End time for the auto-disable time. represents hours and represents minutes in the military (24-hour) time format, from 00:00 to 23:59. SECO-LARM U.S.A., Inc.

  • Page 18: Programming The Wrong-Code System Lockup

    15 minutes or until the super user code is used as follows. SUPER USER CODE – No system lock-up will happen.  NOTE: The keypad’s red LED will remain lit to show that the keypad is locked. SECO-LARM U.S.A., Inc.

  • Page 19: Programming The User Code Entry Mode

     To enable keypad-audible mode (default)  To enable keypad-silent mode NOTE: This programming function only impacts the keypad sounds. It does not impact the output relay activation sounds (see Programming the Output Relay Activation Sounds on pg. 20). SECO-LARM U.S.A., Inc.

  • Page 20: Programming The Output Relay Activation Sounds

    Programming the Amber LED in Standby Mode The keypad’s amber LED typically flashes while the keypad is in standby mode but can be programmed off if needed. Enable amber LED flashing during standby mode (default). Disable amber LED flashing during standby mode. SECO-LARM U.S.A., Inc.

  • Page 21: Programming The Egress Delay/Warning

    The output operates immediately when the egress button is pressed. – Egress button delay duration  The delay duration can be set from 1 to 99 seconds. This tells the keypad how long to wait after the egress button is pressed before activating the output. SECO-LARM U.S.A., Inc.

  • Page 22: Direct Access To Programming

     See Programming the Master Code on pg. 10 for how to program a new master code.  Direct Access to Programming (DAP) will not reset the keypad’s programming. It will only enter programming mode to program a new master code.  For a complete system reset, see System Restore on pg. 10. SECO-LARM U.S.A., Inc.

  • Page 23: Installer Notes

    Indoor Access Control Keypad Installer Notes ______________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ SECO-LARM U.S.A., Inc.

  • Page 24: Users' Guide To Operating The Keypad

    This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
