FontanaShowers
FontanaShowers
©
©
BST-D627GM

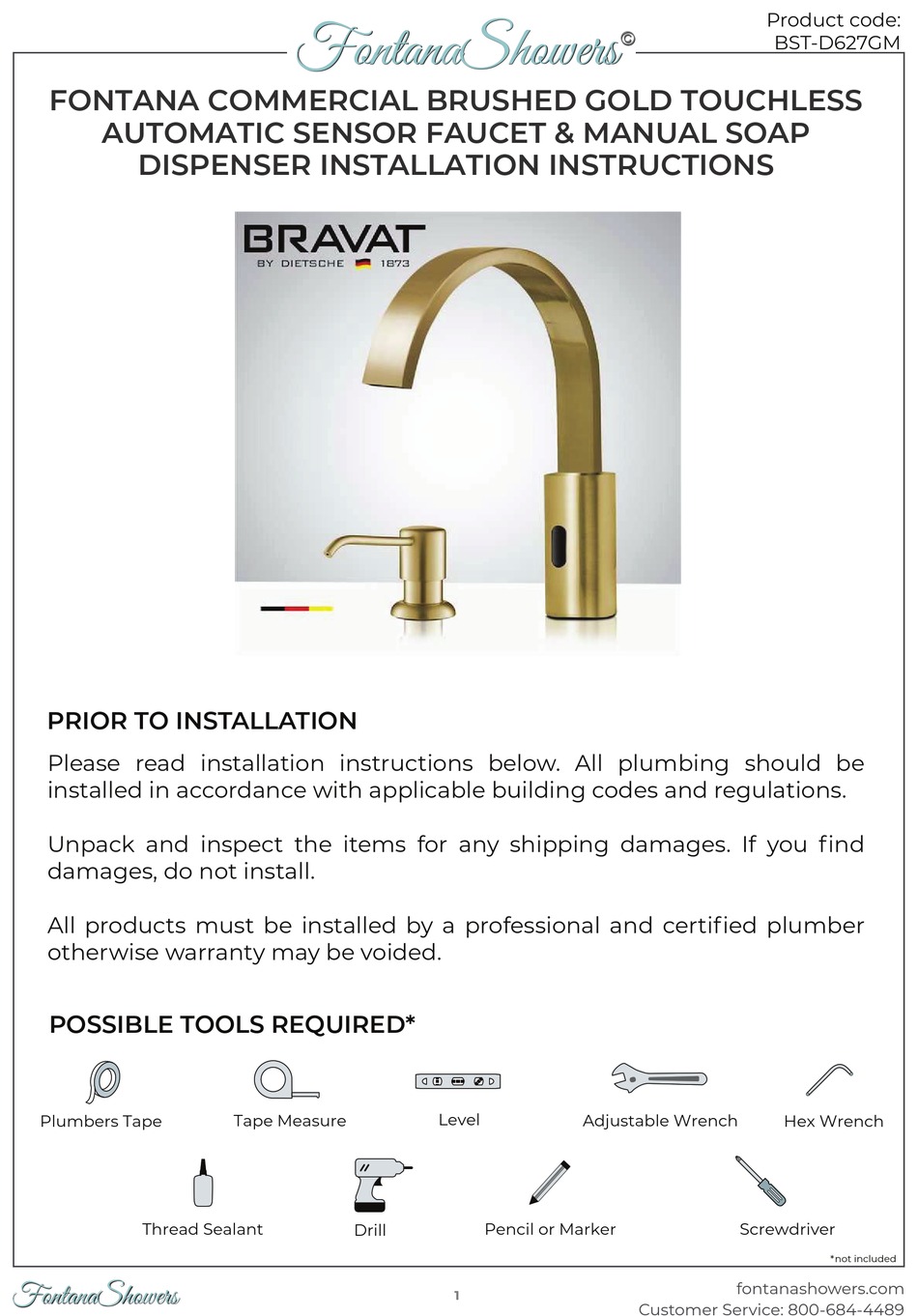

FONTANA COMMERCIAL BRUSHED GOLD TOUCHLESS
AUTOMATIC SENSOR FAUCET & MANUAL SOAP
DISPENSER INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
