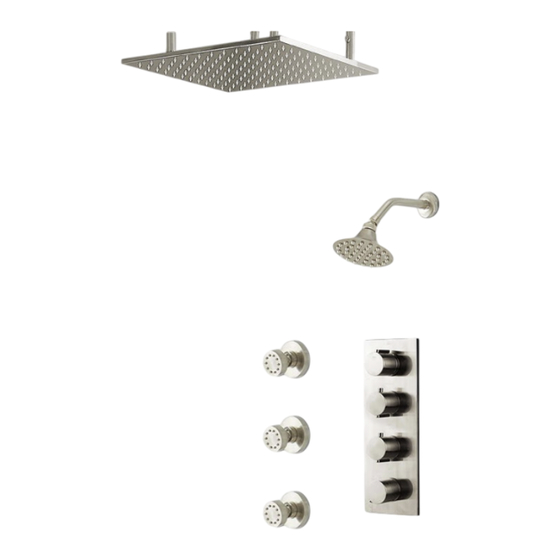

BRUSHED NICKEL CEILING MOUNT RAINFALL DUAL
SHOWER HEAD SET WITH JET SPRAYS AND HANDSHOWER
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
INSTALLATION INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: FS1522D
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included
Advertisement
Table of Contents
Related Manuals for Fontana Showers FS1522D
Summary of Contents for Fontana Showers FS1522D

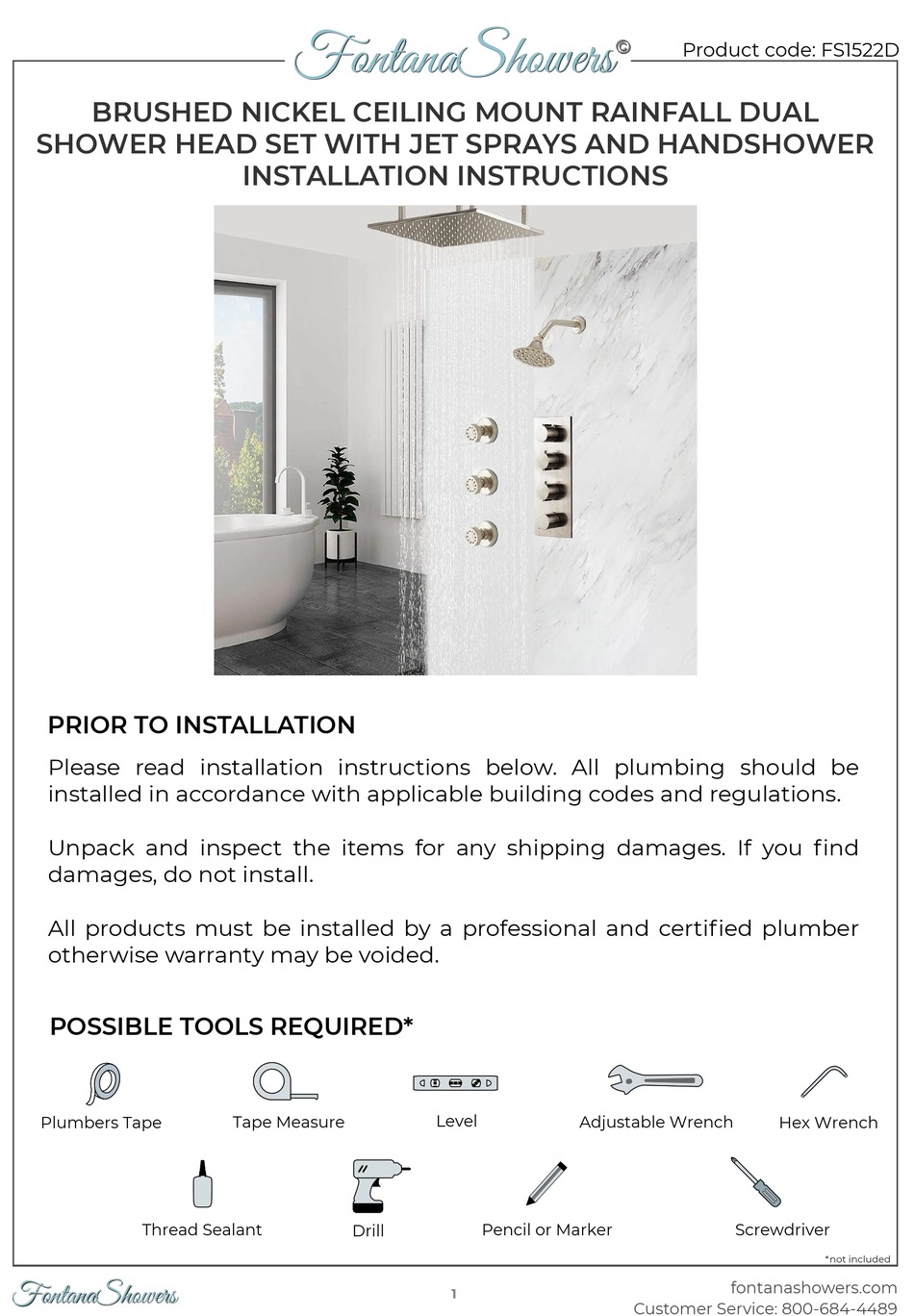

- Page 1 FontanaShowers FontanaShowers © © Product code: FS1522D BRUSHED NICKEL CEILING MOUNT RAINFALL DUAL SHOWER HEAD SET WITH JET SPRAYS AND HANDSHOWER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installation Instructions Parts: Step 1: Mark the 4 drilling positions then use the Ø6 mm drill to drill holes on the wall according to the marked hole position. Step 2: Step 3: Inset the plug(D) into the hole, hold the fix Fixed the top shower with the top base (C) use the tapping screw (D) through shower fixed bar (E) , then connect with...
- Page 3 FontanaShowers FontanaShowers © © Step 4: Step 5: Rainfall Rainfall Water Inlet 2 water inlets for rainfalll are provided in big shower heads so the water disperses equally throughout the showerhead. Step 6: The installation is completed. (If you have opted for LED option) The LED light will change its color by detecting water temperature: 0-30°C (32-86°F): Blue LED 30-40°C (86-104°F): Green LED...
- Page 4 FontanaShowers FontanaShowers © © Wall Mount Shower Installations Instructions Step 1: Step 2: Step 3: Step 4: Step 5: Step 6: fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 5 FontanaShowers FontanaShowers © © Step 7: Step 8: Step 9 (Note): (If you have opted for LED option) The LED light will change its color by detecting water temperature: 0-30°C (32-86°F): Blue LED 30-40°C (86-104°F): Green LED 40-50°C (104-122°F): Red LED 50-100°C (122-212°F): Flashing Red LED Note: The LED lights are powered by water flow, and will be activated once the water is turned on.
- Page 6 FontanaShowers FontanaShowers © © Body Jets Spray Installations Instruction Step 1: Attach the escutcheon to the body Step 2: Apply teflon tape to threaded tail pipe spray. of the body spray Step 3: Press the escutcheon against the Step 4: Screw the Body spray tightly into the finished wall female of water Supply Pressure Balancing Loop:...
- Page 7 FontanaShowers FontanaShowers © © Mixer Installations Instructions Step 1 Step 2 Anchor Positioning Tapping Screw 1 Tapping Screw 2 Button Cover Screw 1 Diverter Handle Temp. Handle Rough-in Body On/Off Plate Handle Hex Wrench Step 3 ( Connection) Function 1 Function 2 Hot water Function 3...
- Page 8 FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected. Care &...
