Product Name:
Product Description:
Product Number:
------------------------------------------------------------------------------------------------------------------------

ABOUT THIS PRODUCT

Thank you for purchasing your new Turbosmart Boost Tee. This new model now has some great new features. These include:
2 ramp rates of boost to give you the option of a fast rise in boost or a slightly tame rise for more sensitive setups.
A wider boost adjustment range for wastegates with low spring base pressures.
A new mounting bracket to make it easier to mount.

IMPORTANT NOTES ON YOUR BOOST CONTROLLER

Use only silicone hose that is the correct size and pressure rating for your application when fitting your boost controller – other
hoses will be effected by heat and will eventually crack or split which could cause excessive boost pressure and engine damage
Ensure that all plumbing is secured with clamps
Your boost controller should be mounted at least 100mm from any heat source
A Turbosmart Fuel Cut Defender may need to be used in conjunction with your boost controller – refer to www.turbosmart.com.au
The boost dial has a left handed thread, be sure not to over tighten as this will damage the boost controller

RECOMMENDATIONS

Turbosmart recommends that the Air Fuel ratio is checked once boost pressure is set
Turbosmart recommends that boost pressure is set using a Dynamometer and not on the street
Turbosmart recommends that a accurate boost gauge be permanently fitted to the vehicle
Turbosmart recommends that your boost controller is fitted and adjusted by an appropriately qualified technician
------------------------------------------------------------------------------------------------------------------------
TOOLS REQUIRED
General mechanic tools

1) INTERNAL WASTEGATE SETUP

Allow the engine to cool down before installing your boost controller
Locate the pressure source port and the wastegate actuator port on the turbocharger assembly (refer drawing 1)
Remove the factory boost control solenoid if fitted from the boost pressure supply port while leaving the solenoid connected to the
ECU
Install your boost controller in the wastegate pressure line with the wastegate arrow pointing towards the wastegate actuator
If your wastegate actuator has additional ports, these will need to be blocked
Secure all silicone hose ends with hose clamps
Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws
Make sure the boost dial is turned completely anti-clockwise before making adjustments.

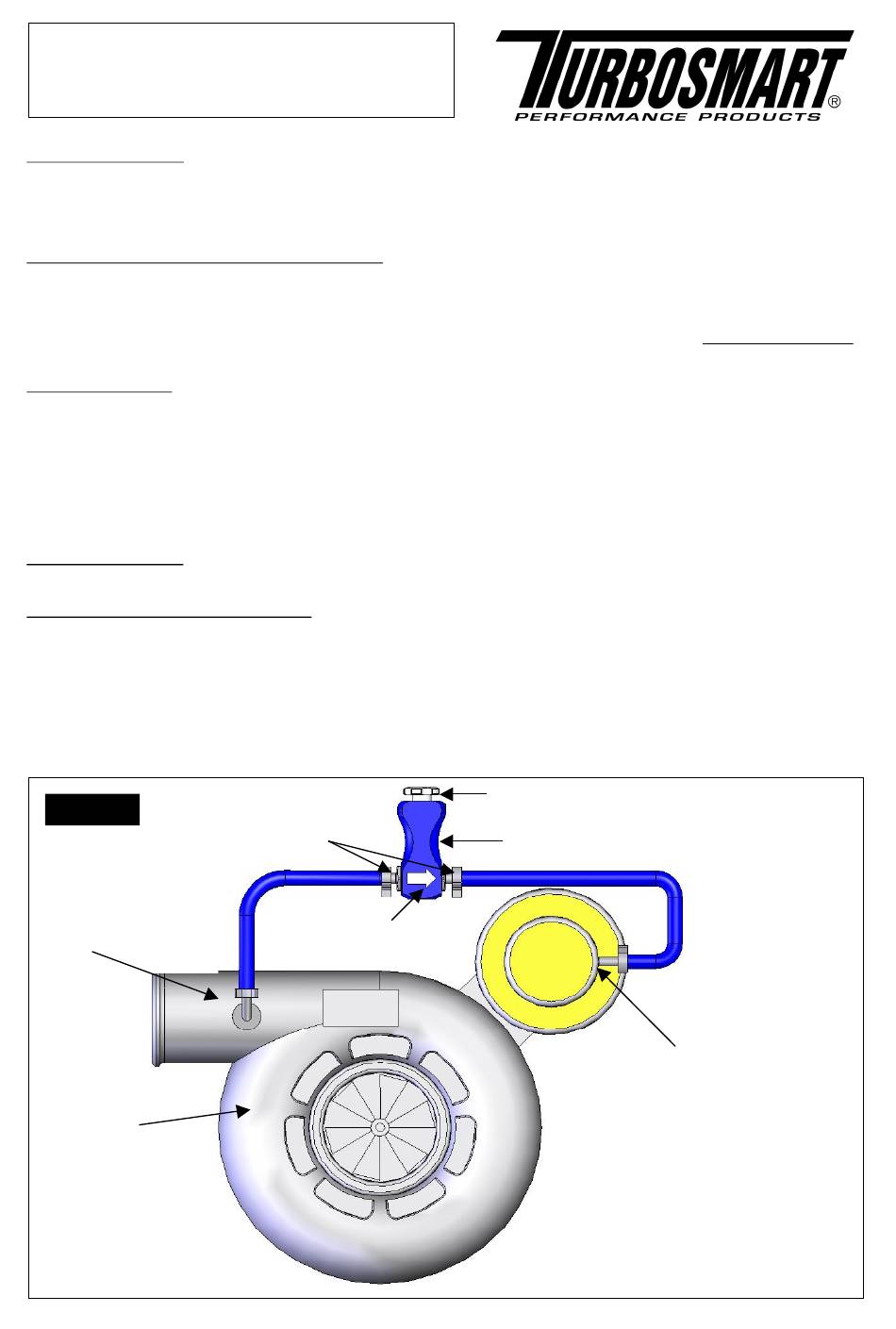

Drawing 1
Pressure source port
(Located before the
throttle body)
Compressor
BOOST TEE
Manual Boost Controller
TS-0101-1001

HOW TO INSTALL YOUR BOOST CONTROLLER

Hose clamps
Wastegate Arrow
Boost dial
Boost Tee
Wastegate actuator port
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOOST TEE and is the answer not in the manual?

Questions and answers

Summary of Contents for Turbosmart BOOST TEE

  • Page 1 ------------------------------------------------------------------------------------------------------------------------ ABOUT THIS PRODUCT Thank you for purchasing your new Turbosmart Boost Tee. This new model now has some great new features. These include: • 2 ramp rates of boost to give you the option of a fast rise in boost or a slightly tame rise for more sensitive setups.
  • Page 2 Hose clamps Pressure source (Located before the throttle body) T Piece Wastegate actuators ports Turbochargers *Note for sequential turbo systems: Sequential turbo setups can be complex and vary from car to car. Please contact your local Turbosmart dealer for more details...
  • Page 3 Perform this modification on a clean bench so that the ball and spring are not lost • Allow the engine to cool down before removing the Boost Tee from your vehicle • Identify the input nipple with the restrictor at the end. Loosen the input nipple and remove the ball and spring.
  • Page 4 Turbosmart Pty Ltd warranties the quality of the products it designs and manufactures to be free of defects in material and workmanship. This limited warranty is extended only to the original purchaser and may not be transferred or assigned. This limited warranty applies to any product, which after careful inspection by Turbosmart Pty Ltd, after receipt of the product from our authorised reseller, is found to have a defect in either material or workmanship.
