Turbosmart e-Boost-40 Instructions Manual

Electronic boost controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
e-Boost 40psi version 1.47
e-Boost-40 Instructions
e-Boost-40 Instructions
INTELLIGENT BOOST

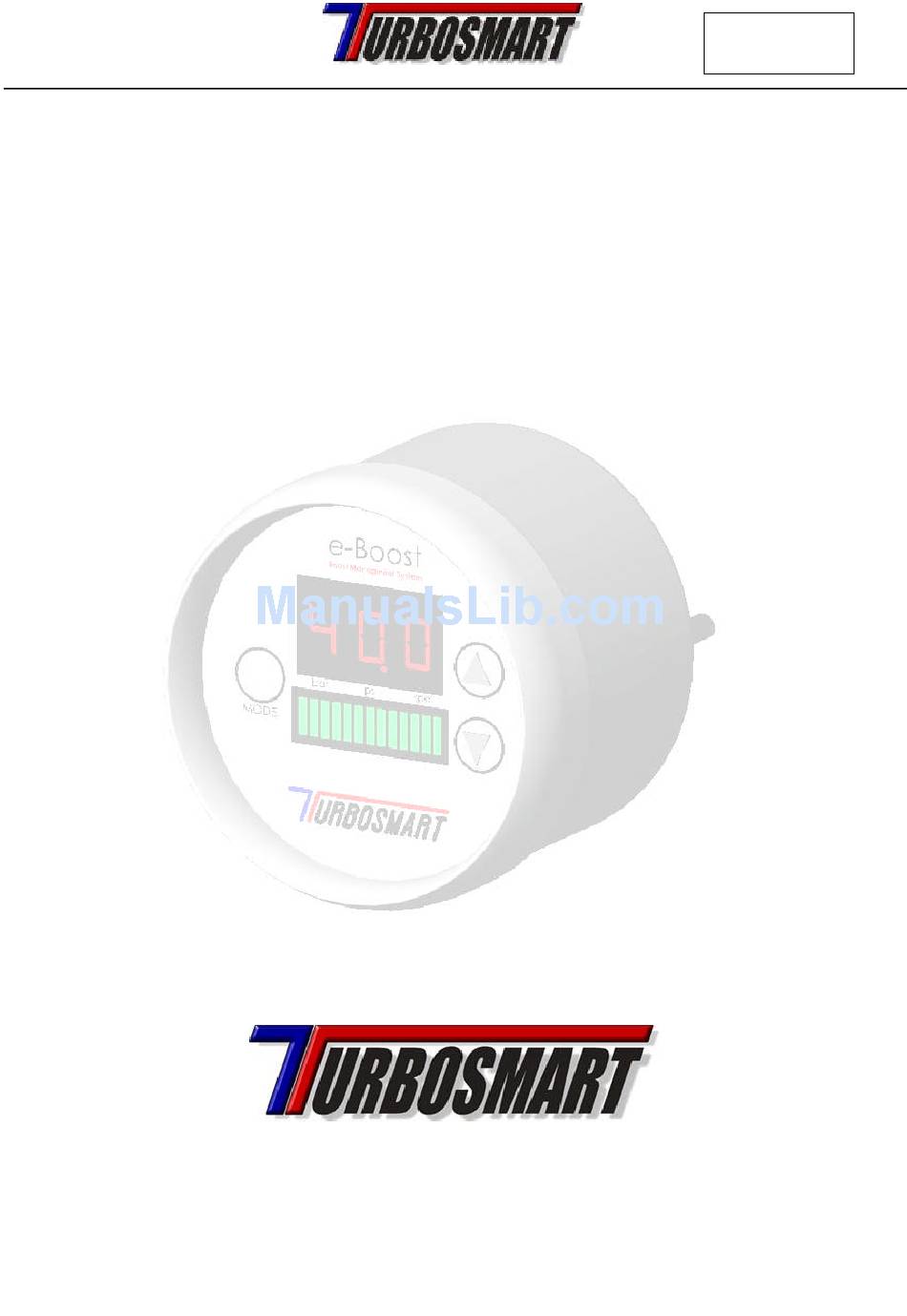

Page 1
PART NUMBER
FG-EBOOST-40
FG-EBOOST-40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-Boost-40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbosmart e-Boost-40

Summary of Contents for Turbosmart e-Boost-40

  • Page 1 PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions e-Boost 40psi version 1.47 INTELLIGENT BOOST Page 1...

  • Page 2: Table Of Contents

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions TABLE OF CONTENTS 1. BEFORE YOU START - IMPORTANT TIPS..............3 INSTALLATION....................3 2a. Packing list ....................................... 3 2b. Mounting the e-Boost................................... 4 2c. Installing the e-Boost solenoid ..............................5 Wiring........................................ 6 3.

  • Page 3: Before You Start - Important Tips

    Setting boost beyond your engines capability can result in severe engine damage or failure! Turbosmart recommends that the engines Air/Fuel ratio is checked once the desired boost pressure is set, any increase in boost pressure can cause the engine to run LEAN To safeguard against pinging or detonation, always use the highest octane fuel available A Turbosmart Fuel Cut Defender may need to be used in conjunction with your e-Boost, Please check out the www.turbosmart.com.au or...

  • Page 4: 2B. Mounting The E-Boost

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 2b. Mounting the e-Boost The e-Boost is designed to be panel mounted with the bracket supplied. Alternatively the e-Boost can be mounted in a 66mm (2 5/8 inch) gauge cup. The e-boost is not waterproof and must be mounted accordingly, i.e. inside the cabin.

  • Page 5: 2C. Installing The E-Boost Solenoid

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 2c. Installing the e-Boost solenoid Mount the e-Boost solenoid in an appropriate position in the engine bay with the screws supplied. The e-Boost solenoid is rated to 100 degrees Celsius (212 degrees Fahrenheit), ensure that it is mounted a minimum of 250mm away from the turbo or exhaust manifold, otherwise heat-shielding maybe required.

  • Page 6: 2D. Wiring

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 2d. Wiring Refer to the following table and diagram for detail on wiring the e-Boost. Wire Connect to + 12 Volts switched through ignition – connect via 5 Amp fuse supplied BLACK Chassis, earth or ground Solenoid wire 1 –...

  • Page 7: Basic Operation

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 3. BASIC OPERATION 3a. Live Mode When the e-Boost is powered up it will automatically go to Live Mode. In this Mode the readout and bar graph will display accurate Live boost or vacuum readings.

  • Page 8: Setting Up Your E-Boost

    Extreme care should be taken when setting this parameter, Turbosmart recommends that you seek advise from an appropriately qualified technician with regard to the OBS setting.

  • Page 9: 4C. Bar Graph

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 4c. Bar Graph The e-Boost bar graph can be configured to indicate a pressure between zero and full scale, depending on your Model this will be either 2.7 bar / 40 psi or 4.1 bar / 60 psi. The bar graph has ten segments, seven green segments and three red segments. When seven segments are illuminated you have reached the pressure that has been programmed in this parameter.

  • Page 10: 4E. Sensitivity

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions Step 1: To access the boost parameter menu press and hold the Mode button and the down arrow simultaneously. The readout will begin to flash between the parameter and its value, select SP1 by pressing the up or down arrows.

  • Page 11: Advanced Set-Up

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 5. ADVANCED SET-UP 5a. Setting Gate Pressure Gate pressure control is a unique feature to the e-Boost. The Gate pressure function allows you to determine the pressure at which the wastegate begins to open. By optimising the gate pressure and keeping the wastegate closed as long as possible, your desired boost will be achieved faster and at lower RPM.

  • Page 12: 5C. Audible Alarm

    PART NUMBER FG-EBOOST-40 FG-EBOOST-40 e-Boost-40 Instructions e-Boost-40 Instructions 5c. Audible Alarm The e-Boost has an audible alarm function that sounds the internal buzzer once a certain boost pressure is achieved. This alarm can be used to confirm that full boost has been reached or as an over boost warning and can be programmed for any boost pressure. The audible alarm has been factory set to 1 bar (14.7 psi or 100 kpa).

  • Page 13: Troubleshooting

    Turbosmart will accept no responsibility for the incorrect use of this product. Disclaimer! Turbosmart will not be held responsible for any damage caused to property or person, directly or indirectly related to the use of an e-Boost. Page 13...

  • Page 14: Fg-Eboost-40 Fg-Eboost

    If all the above procedures are followed, and the product is found to be defective in either workmanship or material, Turbosmart Pty Ltd shall either repair or replace the product, at its sole discretion, and sole cost. This limited warranty does not cover or apply to any personal injury, labour charges or any other incidental costs or damages caused by the defective product.
