Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com.
1. DESCRIPTION

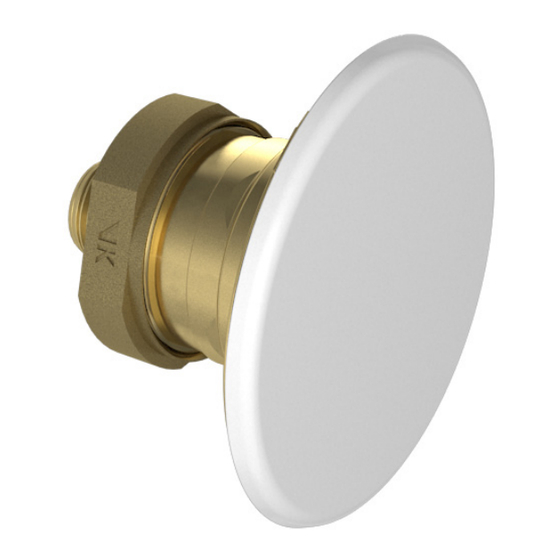

Viking Freedom® Residential Concealed Horizontal Sidewall Lead Free
VK4800 is a small high-sensitivity solder link and lever residential sprinkler
designed for installation on concealed pipe systems, where the appearance of a
smooth wall is desired. The orifice design, with a K-Factor of 4.0 (57.7 metric
allows the sprinkler's efficient use of available water supplies for the hydraulically
designed fire-protection system. The operating element and special deflector
characteristics meet the challenges of residential sprinkler standards.
The sprinkler is hidden from view by a low profile, small diameter cover plate
installed flush to the wall. The cover plate is available in several decorative
finishes to meet design requirements. The two-piece design allows installation
and testing of the sprinkler prior to installation of the cover plate. After the system
has been tested and wall finish has been applied, the push-on design of the cover
plate assembly allows easy installation of the cover plate with up to 1/4" (6.4 mm)
adjustment. Sprinkler VK4800 is provided with a pipe guide to properly locate the
sprinkler and allow the 1/4" adjustment of the cover plate.
*
Lead content complies with the definition of 'Lead Free' established in the Reduction of Lead
in Drinking Water Act (S.3874) endorsed by AWWA's Water Utility Council, and California
Assembly Bill #1953.
2. LISTINGS AND APPROVALS
UL Listed (C-UL-US-EU): Category VKKW (VK4800)
UL Classified to: NSF/ANSI/CAN Standard 61, Drinking Water System Components and NSF/ANSI 372 (MH48034).
Refer to the Approval Chart and Design Criteria for C-UL-US-EU Listing requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2010.
Minimum Operating Pressure: Refer to the Approval Chart.
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1/2" (15 mm) NPT
Nominal K-Factor: 4.0 U.S. (57.7 metric*)
Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
2
Available Cover Plate Horizontal Adjustment: 1/4" (6 mm)
Overall Length (Sprinkler Body): 2" (50 mm)
Covered by the following US Patent Numbers: 7,712,218 and 8,960,319
Material Standards:
Sprinkler Body: Brass UNS-C89833
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Seat: Brass UNS-C64200
Deflector Ring: Brass UNS-C23000
Deflector Pins: Stainless Steel UNS-S30200
Halo: Phoshpor Bronze UNS-C51000, e-coating available upon request
Flow Shaper: Phosphor Bronze UNS-C51000
Lever Bar Ring: Brass UNS-C84400 or UNS-C31600
Compression Screw: 18-8 Stainless Steel
Fusible Link Assembly: Nickel Alloy and Eutectic Solder
Fusible Link Levers: Stainless Steel UNS-S31600
Guide Pin: Stainless Steel UNS-S43000, ENT coating available upon request
Shipping Cap: Polyethylene
Form No. F_100810
Rev 02
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
May 2023
FREEDOM
CONCEALED LEAD FREE
HORIZONTAL SIDEWALL
SPRINKLER VK4800
Sprinkler
*
),
2
Replaces Form No. F_100810 Rev 01
(revised UL approval statement.)
Page 1 of 7
RESIDENTIAL
®
