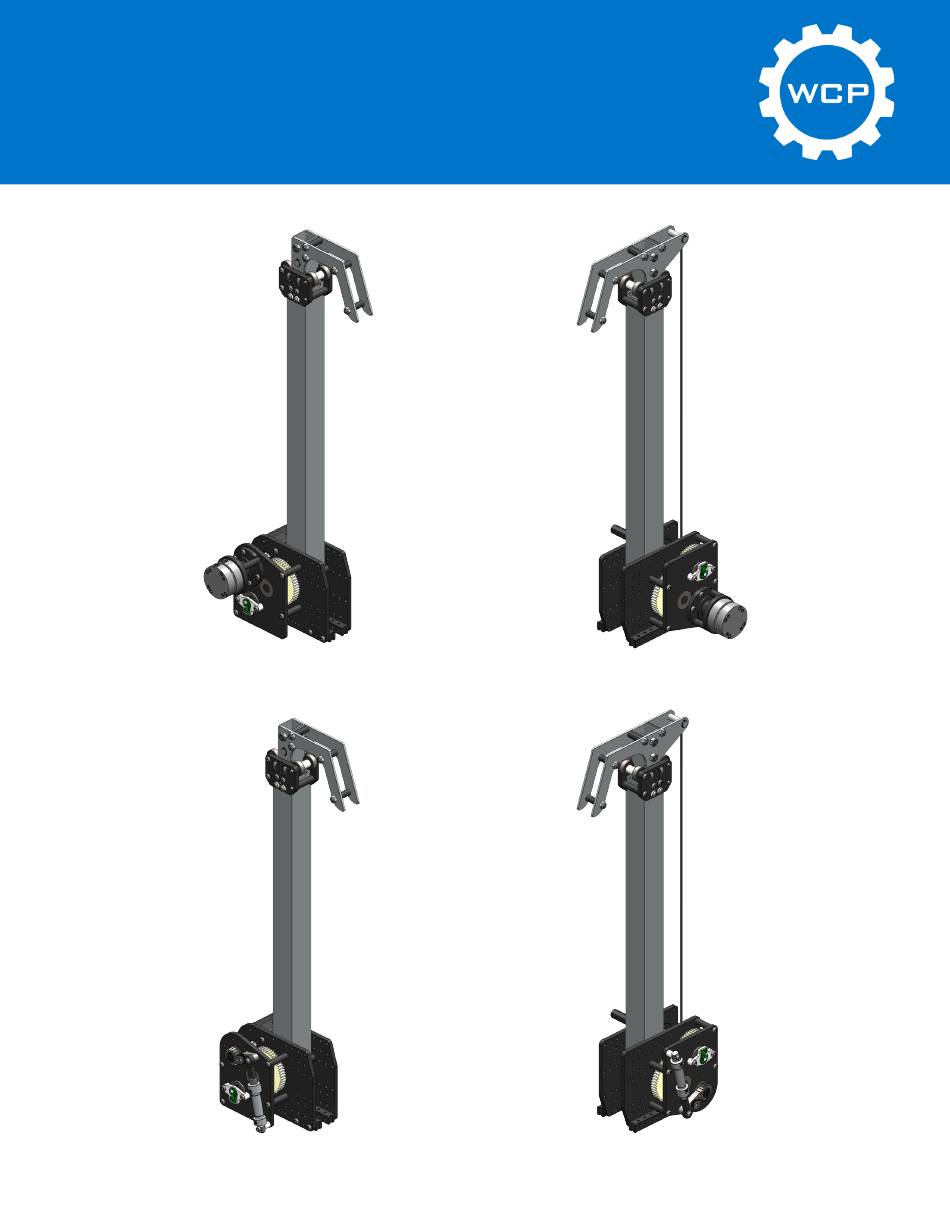

- Page 1 WCP-EX-0005 - Application Guide (Rev 1) Table of Contents Page 1 wcproducts.com...
- Page 2 WCP-EX-0005 - Application Guide (Rev 1) Table of Contents What is the GreyT Telescope? ���������������������������������������������������������������������������3 Non-Flipped Hooks ��������������������������������������������������������������������������������������������4 Flipped Hooks ����������������������������������������������������������������������������������������������������5 Flipped Mounting Example ��������������������������������������������������������������������������������6 Revision Table ����������������������������������������������������������������������������������������������������7 Table of Contents Page 2 wcproducts.com...
- Page 3 Up to 40 inches per stage, up to 4 stages, and more than enough power from the Falcon 500 motor. Lock your telescope in place with either the Ratchet & Pawl or the WCP Friction Brake. Use it for fast and secure climbs, or any other fine-controlled linear mechanisms.
- Page 4 WCP-EX-0005 - Application Guide (Rev 1) Non-Flipped Hooks In the image below are example hooks that could be used for hanging. The hooks are made from 1/8” thick aluminum and are bolted together using 1”L spacers. These will help keep the hooks from bending.
- Page 5 WCP-EX-0005 - Application Guide (Rev 1) Flipped Hooks The image below shows example hooks that could be used for either of the Flipped configurations. The hooks are made from 1/8” thick aluminum and are bolted together using 1”L spacers. These will help keep the hooks from bending.
- Page 6 WCP-EX-0005 - Application Guide (Rev 1) Flipped Mounting Example For this mounting example, you will need 2 Aluminum Nutstrips cut to 3”. For one of the nuststrips, drill out the two holes marked in green to #9. Remove the two #10-32 x 2”L bolts indicated in the image below. Drill out the corresponding tapped holes on the Gearbox Plate clearance for #10-32 bolts.
- Page 7 WCP-EX-0005 - Application Guide (Rev 1) Revision Table Revision Date Revision # Description 11/24/2021 First revision created. Table of Contents Page 7 wcproducts.com...
