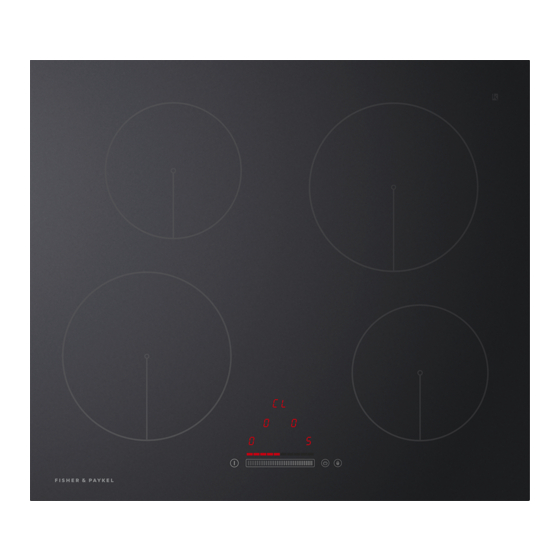

- Page 1 INDUCTION COOKTOP CI604CTPB1 and CI904CTPB1 models INSTALLATION GUIDE NZ AU...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! General Use Electric Shock Hazard Read these instructions carefully before installing this product. Save these instructions for the local electrical inspector’s use. Failure to follow this advice may result in Installation must comply with your local building and local electricity regulations. electric shock or death. -
Page 4: Initial Considerations
INITIAL CONSIDERATIONS BEFORE INSTALLATION MULTIPLE PRODUCT INSTALLATION Before installation, please ensure the following: A suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. A means of disconnection with at least a 3 mm air gap contact separation in all poles must be incorporated into the fixed wiring in accordance with the wiring rules, unless the local wiring rules allow for alternative means. -
Page 5: Supplied Parts
SUPPLIED PARTS TOOLS REQUIRED Keep all packing materials until the unit has been inspected. Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS — 600MM MODEL PRODUCT DIMENSIONS A Overall height of cooktop B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis PLAN ISOMETRIC F Depth of chassis G Height of cooktop surface H Depth of front overhang of cooktop surface I Depth of rear overhang of cooktop surface J Depth of side overhang of cooktop surface... - Page 7 PRODUCT DIMENSIONS — 900MM MODEL PRODUCT DIMENSIONS A Overall height of cooktop B Overall width of cooktop C Overall depth of cooktop PLAN ISOMETRIC D Height of chassis E Width of chassis F Depth of chassis G Height of cooktop surface H Depth of front overhang of cooktop surface I Depth of rear overhang of cooktop surface J Depth of side overhang of cooktop surface...
-
Page 8: Flush Installation
CUTOUT DIMENSIONS — 600MM MODEL PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 C Height of routered recess D Width of cutout... - Page 9 CUTOUT DIMENSIONS — 900MM MODEL PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CI904CTB CI904CTB CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 C Height of routered recess...
-
Page 10: Clearance Dimensions
CLEARANCE DIMENSIONS — 600MM MODEL CLEARANCE DIMENSIONS A Minimum clearance from glass surface to rangehood B Minimum clearance below top of countertop to top of any appliance*, companion product or obstruction below cooktop C Minimum clearance from side edges of cutout to nearest combustible surface D Minimum clearance from countertop to overhead cabinet (not directly above the cooktop) - Page 11 CLEARANCE DIMENSIONS — 900MM MODEL CLEARANCE DIMENSIONS A Minimum clearance from glass surface to rangehood B Minimum clearance below top of countertop to top of any appliance*, companion product or obstruction below cooktop C Minimum clearance from side edges of cutout to nearest combustible surface D Minimum clearance from countertop to overhead cabinet (not directly above wwthe cooktop)
-
Page 12: Venting Clearances
VENTING CLEARANCES DRAWER OR OTHER OBSTRUCTION OVEN WITH COOLING FAN This cooktop requires adequate supply of cool air to fully function. The base of the cooktop must have direct unrestricted ventilation to the room where the cooktop is installed. There must be a 4mm air gap at the front of the cooktop. - Page 13 PROUD INSTALLATION Gently lower the cooktop into the Turn the cooktop upside down cutout ensuring you have access on a protective cover. below the countertop to fit and secure the brackets. Apply adhesive foam seal around Locate the side brackets to the the glass overhang, 5mm from appropriate slots on the cooktop the edge of the glass.
- Page 14 FLUSH INSTALLATION Prepare the countertop for flush installation. Use a router to cut Tighten all screws to secure the out the edges of the countertop cooktop to the countertop. to specified depth (5mm). Ensure cooktop is level. Attach an adhesive tape along Adhesive tape the edges of the routered recess.
-
Page 15: Electrical Connection
The voltage corresponds to the value given in the rating plate. The power supply cable sections can withstand the load specified on the rating plate. RECOMMENDED MODEL RATED LOAD VOLTAGE DEDICATED CIRCUIT CI604CTPB1 4400W 230V 1N CI904CTPB1 4400W 230V 1N... -
Page 16: Installer Checklist
INSTALLER CHECKLIST Read all installation guidance in this document to see if the unit has been correctly installed. Ensure that installation has been completed correctly before use. TO BE COMPLETED BY THE INSTALLER Ensure that: Is the cooktop earthed? Are all touch controls and displays functioning? Check that there is an adequate and constant flow of cool air from the cabinetry to To check that the ‘hot surface’... - Page 19 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
