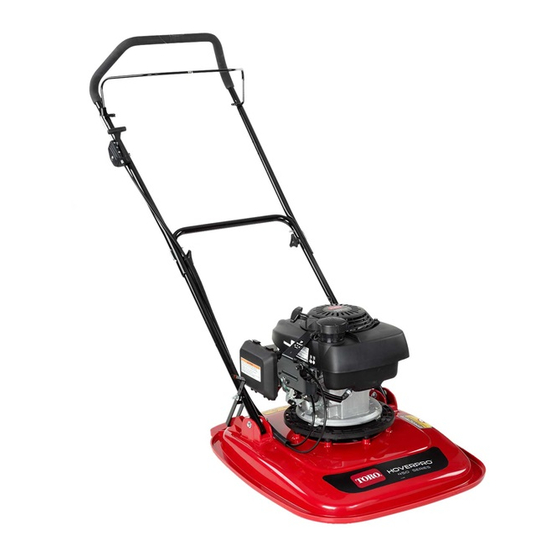

Toro HoverPro 450 Installation Instructions

Swing Tip Kit
HoverPro
Model No. 02627

Installation

Loose Parts

Use the chart below to verify that all parts have been shipped.
Description
Disc
Plastic blade
Washer
Shoulder bolt
Allen wrench
1. Position the machine on a level surface, shut off
the engine, and wait for all moving parts to stop
before leaving the operator's position.
2. Turn the fuel switch to the O
disconnect the spark-plug wire from the spark
plug; refer to your machine Operator's Manual.
3. Tip the machine onto its side with the dipstick
down and remove the existing blade and
hardware from the machine; refer to your
machine Operator's Manual.
4. Install the disc to the machine as shown in
Figure 1.
Note:
Adjust the spacers for the desired cutting
height; refer to your machine Operator's Manual.
5. Use a torque wrench to tighten the bolt removed
in step 3 to 25 N∙m (18 ft-lb).
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
® 450 Machine
Qty.
1
3
3
3
1
position and
FF
Register at www.Toro.com.

Figure 1

1. Large spacer
2. Spacers
3. Disc
Original Instructions (EN) All Rights Reserved *3437-275* A
Printed in the USA
Form No. 3437-275 Rev A
Installation Instructions
Use
4. Retainer
5. Bolt
g309198
