Summary of Contents for Finerfilters DFT8

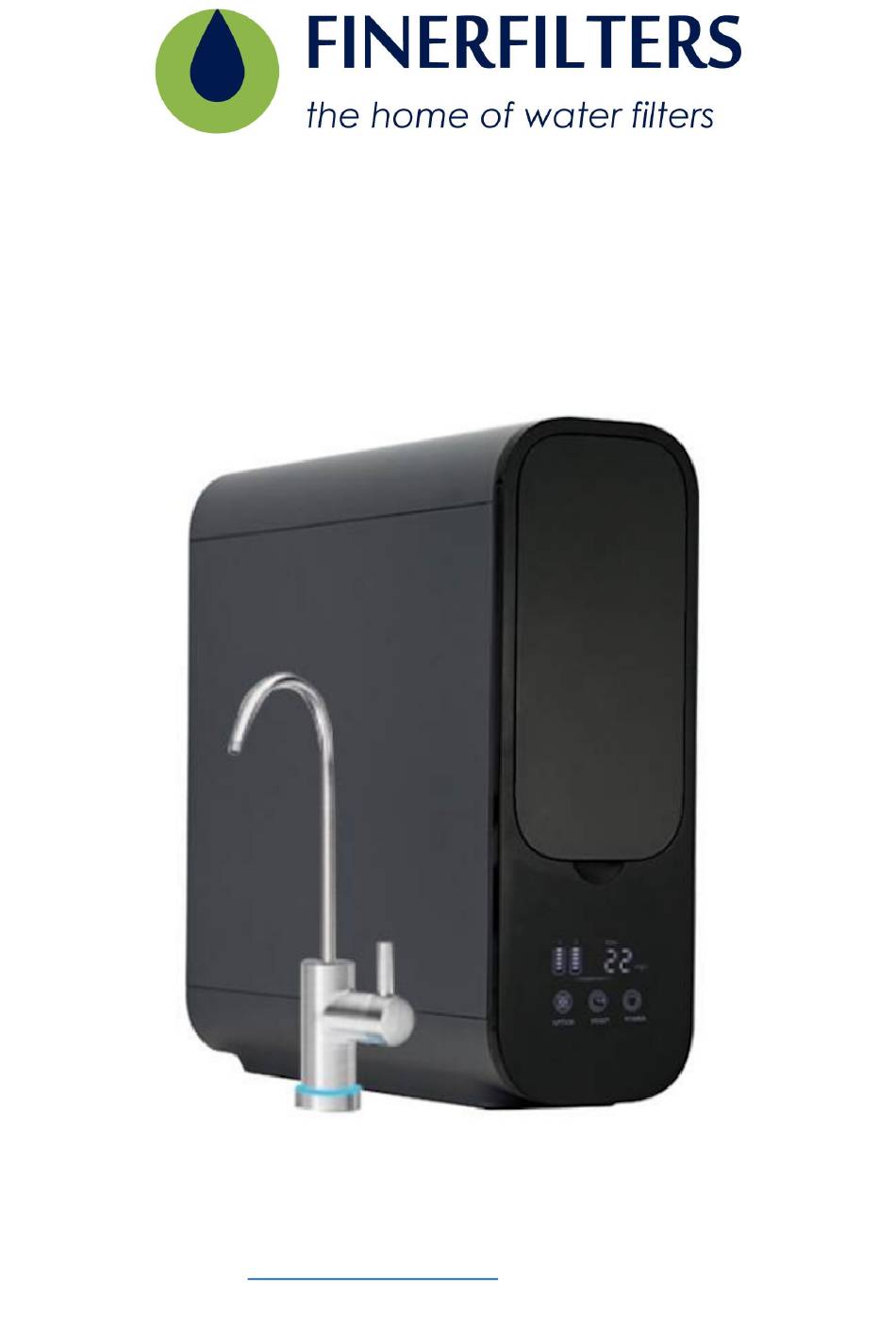

- Page 1 DFT8 Reverse Osmosis Filter Instruction and Maintenance Manual Finerfilters Limited Unit 21, A K Business Park Russell Road Southport Merseyside PR9 7SA Enquiries@finerfilters.co.uk / 01704 807600...
- Page 2 DFT8 Reverse Osmosis Filter Contents 1) General Information 2) System Layout and Components 3) Preparation and Installation 4) User Guide 5) Maintenance 6) Filter Replacements 7) Precautions and Parameters Page 1...
-
Page 3: General Information
DFT8 Reverse Osmosis Filter General Information Installation Guidelines This Reverse Osmosis (RO) system is engineered for easy Model DFT8 - 600 installation by someone with basic DIY and plumbing skills. It should be connected to the home's primary water supply. -
Page 4: System Layout And Components
DFT8 Reverse Osmosis Filter System Layout and Components Page 3... -
Page 5: Preparation And Installation
A video is available on our “Finerfilters LTD” YouTube channel – “How to remove tubing from a Pushfit water filter – Finerfilters” for a visual representation. - Page 6 DFT8 Reverse Osmosis Filter Preparation and Installation Connecting to the Main Water Supply Please refer to the accompanying diagram labelled "Fig 3" for visual guidance. 1. Preparing the Shut-off Valve Assembly: Attach the ball valve to the female nut connection of the shut-off valve and secure it by tightening the nut.
- Page 7 DFT8 Reverse Osmosis Filter Preparation and Installation Connecting to the Waste Water Pipe Refer to the diagram labelled "Fig 4" for visual guidance. 1. Locating the Drain Clamp: Position the drain clamp either on a horizontal or vertical section of the pipe above the under- sink waste trap.
- Page 8 DFT8 Reverse Osmosis Filter Preparation and Installation Smart Light Display Faucet Instructions: Upon powering on the unit, the light ring on the faucet will flash three times, displaying colours in the sequence of blue, orange, and blue. Filter Element Life Indicator:...
- Page 9 DFT8 Reverse Osmosis Filter Preparation and Installation Connecting to the RO unit. • Push the main water, wastewater, filtered water tubes and the smart tap plug into their appropriate positions on the back of the unit. Page 8...
- Page 10 DFT8 Reverse Osmosis Filter Preparation and Installation Setting Up and Debugging Instructions for Tankless Reverse Osmosis System Installation Completion Verification: • Once the installation of the system is completed, open the three-way ball valve. • Check for any water leakage at the connections between the system and other fittings.
- Page 11 DFT8 Reverse Osmosis Filter User Guide Full Water State: Display Screen (Light Belt): The display will remain brightly lit to indicate a full water state. If the high voltage switch is turned off, the system enters the full water state.
- Page 12 DFT8 Reverse Osmosis Filter User Guide Functionality: This unit is designed for household use or similar settings, utilizing a multi-stage filtration system based on reverse osmosis membrane technology. Once installed, simply power on the unit, and you can initiate or halt water production by opening or closing the faucet.
- Page 13 DFT8 Reverse Osmosis Filter User Guide Function Descriptions: Flushing Status: Display Screen (Light Belt): Indicates flushing mode by flashing. • Upon power on, an automatic 30-second flush initiates. • Press and hold the select key for 3 seconds for an 18-second flush.
- Page 14 Page 13...
- Page 15 DFT8 Reverse Osmosis Filter Filter Replacements Filter Element Replacement Cycle (Recommended): Over time, the filter element in the system accumulates impurities which can slow down the water flow. To maintain a normal effluent rate, it's essential to replace the filter element regularly.
- Page 16 DFT8 Reverse Osmosis Filter Filter Replacements Filter Element Replacement Cycle Indicators for Replacement: Consider replacing the filter element under the following circumstances: The quality or taste of the filtered water deteriorates. There's a noticeable reduction in the water flow rate. Check for potential blockages in the filter element or membrane (ensure this isn't due to a drop in water temperature).
- Page 17 DFT8 Reverse Osmosis Filter Filter Replacements Filter Element Replacement Cycle Installing the New Filter Element: Step 1: Position the new filter element so that the arrow logo on the filter element aligns with the unlock indicator on the filter housing.
- Page 18 Page 17...
- Page 19 Page 18...
- Page 20 Page 19...
