Summary of Contents for Hallman HRBIBM30PR

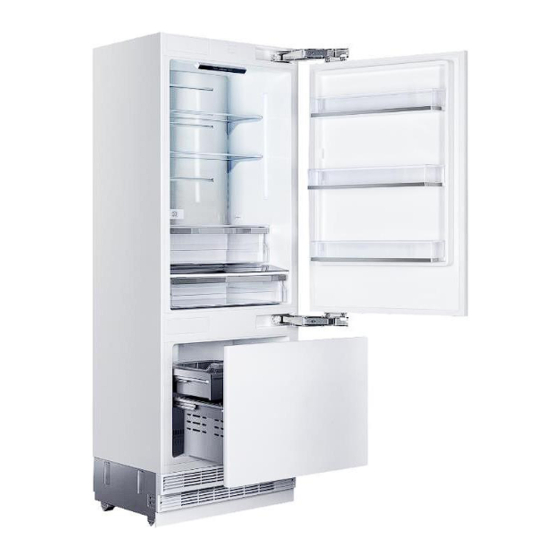

- Page 1 Built In Refrigerator User Manual HRBIBM30PR HRBISBM36PR...
- Page 2 Please read this manual before using the product! Dear Valued Customer, We wish you to get the best results from your product that has been manufactured meticulously at modern plants and tested with detailed quality control checks. For this reason, we recommend that you read this user manual thoroughly before starting the product.
-
Page 3: Important Instructions Regarding Safety And Environment
1 Important Instructions Regarding Safety and Environment This chapter contains safety information that will help you avoid the risk personal injury or property damage. Failure to follow these instructions shall render any product warranty void. 1.1 General Safety • This product can be used by children at age 8 and above and those people who have limited physical, sensory or mental capabilities and people who lack experience and information on the condition that they have been given the instructions about the safe use of the product,... - Page 4 1 Important Instructions Regarding Safety and Environment • Never use steam or steam cleaners to clean or defrost the refrigerator. Steam gets into contact with the live parts in your refrigerator, causing short circuit or electric shock! • Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
- Page 5 1 Important Instructions Regarding Safety and Environment 1.2 Intended Use • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • It must be used only for storing food. •...
- Page 6 1 Important Instructions Regarding Safety and Environment 1.5 Compliance with the RoHS Directive: The unit you have purchased conforms to the EU RoHS Directive (2011/65/AB). It does not contain harmful or prohibited materials specified in the Directive. 1.6 Packaging Information •...
- Page 7 1 Important Instructions Regarding Safety and Environment If the product is damaged and if you see gas leak, please keep away from the gas. It may cause frostbite when it gets into contact with the skin. (including R134 Ignore this warning if the cooling system of your product contains R134a.
- Page 8 2 Refrigerator Components List 9.Special temperature compartment 1.Water filter (if applicable) 2.Door bin 10.Ice machine (if applicable) 3.Body shelf (adjustable height) 11.Icebox applies to high spec models 4.Water dispenser 12.Upper drawer 5.Gallon door bin 13.Lower drawer (adjustable height) 14.Condenser 6.Odour filter 7.Crisper 8.Control display May not be available in all models...

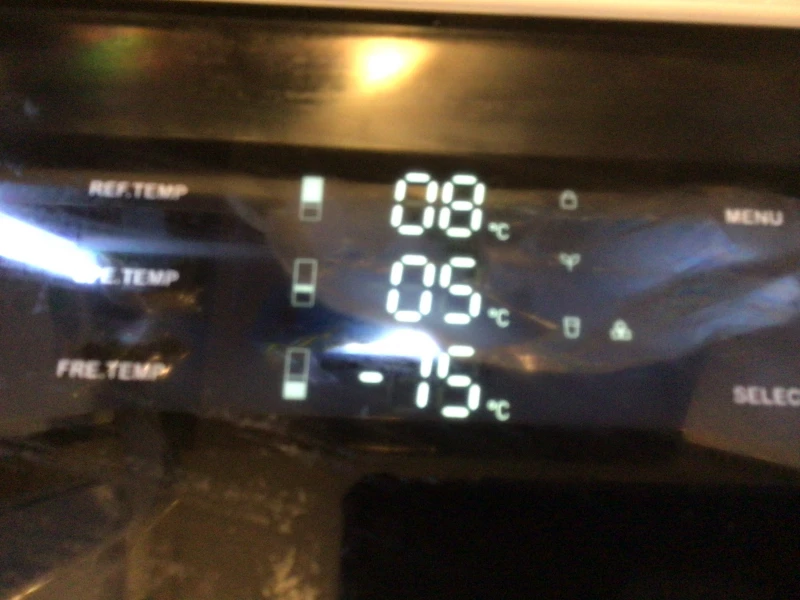

- Page 9 3 Display Panel Set Up Instructions Refrigerator compartment On/Off Function election / temperature adjustment button button Child lock button Confirm button Special fridge compartment Freezer compartment temperature temperature adjustment button adjustment button May not be available in all models Figures in this user manual are schematic and may not match the product exactly.
- Page 10 3 Display Panel Set Up Instructions 1. On/Off button Serves to switch the whole appliance On and Off. Press the button to switch on the product, the product will be switched on in 5 seconds. Press the on/off button for 1.5 seconds to switch off. 2.
- Page 11 3 Display Panel Set Up Instructions 7. Sabbath Mode Press the MENU button till the Sabbath mode symbol illuminates, then press the SELECT button to enable the function. When the Sabbath mode function is enabled, all lights, buzzers, display panels will be switch off. 8 Eco Mode Press the MENU button till the Eco Mode illuminates, then press the SELECT button to enable the function.
-
Page 12: Before Using The Refrigerator
4 Before Using the Refrigerator 4.1 Thingsto do for energy saving Connecting your refrigerator to systems that save energy is dangerous as they may cause damage on the product. • Do not leave the doors of your refrigerator open for a long time. •... - Page 13 4 Before Using the Refrigerator 4.3 Initial use Before using the product, make sure that all preparations have been made in accordance with the instructions given in the "Important instructions regarding safety and environment" and "Installation Instruction" chapters. • Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning”...
-
Page 14: Operating The Product
5 Operating the product 5.1 Dual Cooling System Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, the air and odor in the fresh food compartment and the frozen food compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher than that of other refrigerators. - Page 15 5 Operating the product 5.4 Placing the food Freezer compartment Various frozen food such as meat, fish, shelves ice cream, vegetables etc. Egg tray Eggs Food in pans, covered plates and closed Fridge compartment containers shelves Door shelves of fridge Small and packaged foods or beverages compartment (such as milk, fruit juice, beer and etc.)
- Page 16 5 Operating the product Door bin To remove, lift up the door bin and then pull out straight. Glass shelves To remove a shelf - Fully open the corresponding door. - Hold the front of the shelf, and then gently lift up and slide out. To reinsert - hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch.
- Page 17 5 Operating the product Crisper compartment To remove the crisper - Pull the crisper until it stops. - Slightly unclip the front section of the drawer and take it out completely. To install the crisper - Pull the rails completely. - Place the gap at the rear corners of the crisper to the detail located at the rear corners of the rails.
- Page 18 5 Operating the product Special fridge compartment You can control the temperature in this section to store your food such as fish, meat, vegetables and delicatessen products for a longtime. Removal/installation procedures of the special fridge compartment are same as that of the crisper. 5.10 Freezer Crisper The freezer compartment store your foods at a temperature between -24°C and -18°C to keep them fresh for a long time.
-
Page 19: Care And Cleaning
6 Care and Cleaning Service life of the product will extend and frequently encountered problems will decrease if the product is cleaned periodically. Never use gasoline, benzene or similar substances for cleaning purposes. Never use any sharp abrasive instruments, soap, household cleaners, detergent or wax polish for cleaning. - Page 20 6 Care and Cleaning 6.3 Cleaning the Inner Surface To clean the inner surfaces and all removable parts, wash them with a mild solution comprising soap, water and carbonate. Rinse and dry thoroughly. Prevent the water from contacting the lighting means and control panel. 6.4 Stainless Steel Outer Surfaces Use a stainless steel cleaning agent that is non- abrasive and apply it with a lint-free, soft cloth.
-
Page 21: Troubleshooting
7 Trouble Shooting Please review this list before calling the service. This will save you time and money. This list contains frequently encountered problems that are not results of faulty workmanship or material use. Your product may not have some of the features described here. The refrigerator is not operating. - Page 22 7 Trouble Shooting The operation noise increases when the refrigerator is running. Operating performance of the refrigerator may vary based on the ambient temperature changes. This is normal and not a fault. Vibration or noise. • The floor may not be stable or level. >>>If the refrigerator shakes when moved slightly feed to balance it.
- Page 23 7 Trouble Shooting There is a bad odour inside the refrigerator. • No regular cleaning may have been performed. >>>Clean the inside of the refrigerator sponge, lukewarm water or carbonated water. • Some vessels or packaging materials may cause the odour. >>>Use another vessel, or packaging materials from another brand.
Need help?
Do you have a question about the HRBIBM30PR and is the answer not in the manual?
Questions and answers
My ice maker and water spigot has stopped functioning
The ice maker and water spigot on the Hallman HRBIBM30PR may not be functioning due to several possible reasons:
1. Low Water Pressure – If the water pressure is below 1 bar, an auxiliary pump may be needed.
2. High Water Pressure – If the cold water mains pressure is 5.5 bars (80 psi) or above, it may cause issues.
3. Improper Installation – The unit should not be connected to the hot water inlet.
4. Frozen Water Lines – If the hoses are exposed to freezing conditions, they may be blocked.
5. Water Impact Issues – If there is water impact in the installation, a water impact protection device should be used.
6. Filter Issues – If the refrigerator has a water filter, it may need replacement.
Checking these factors and consulting a professional plumber if needed can help resolve the issue.
This answer is automatically generated
