Confidential
Refrigerator
Installation Manual
All Freezer :
HRBIAF18PR, HRBIAF24PR
All Refrigerator : HRBIAR24PR, HRBIAR30PR
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRBIAF18PR and is the answer not in the manual?

Questions and answers

Related Manuals for Hallman HRBIAF18PR

Summary of Contents for Hallman HRBIAF18PR

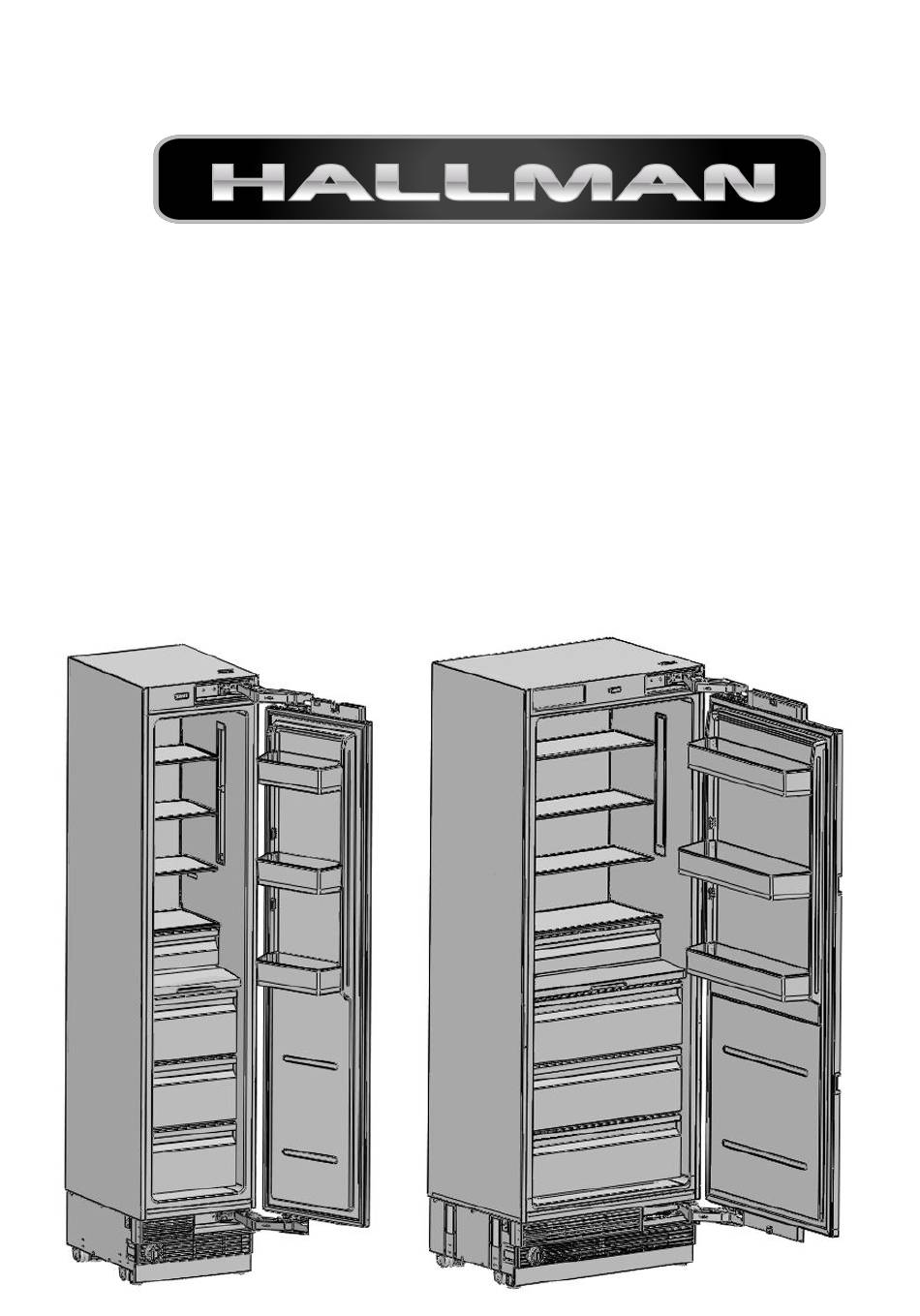

  • Page 1 Confidential Refrigerator Installation Manual All Freezer : HRBIAF18PR, HRBIAF24PR All Refrigerator : HRBIAR24PR, HRBIAR30PR...

  • Page 2: Table Of Contents

    Confidential Table of Contents Symbols and Their meanings ............................4 Installation place ................................7 Tool list ................................... 10 ALTERNATIVES FOR INSTALLATION............................11 PREPARATION FOR INSTALLATION ............................12 Cabin dimensions ................................12 Location of the electrical wiring ............................. 13 Location of the water system............................14 Product dimensions………………………………………………………………………………………………………………………………………………..16 Unpacking ..................................
  • Page 3 Confidential HINGE ADJUSTMENT ................................64 Adjusting the hardness of the hinges ..........................64 CHANGING THE DOOR OPENING DIRECTION ........................65 Removing the furniture door ............................65 Removing and preparing the Inner door ........................70 Replacing the hinges ..............................72 Air vent upper part direction change..........................74 Installing the door ................................

  • Page 4: Symbols And Their Meanings

    Confidential Symbols and Their Meanings Symbols used in the installation manual are as follows. Important information or useful usage tips WARNING: Conditions that may damage the product or its operating functions ATTENTION: Conditions containing serious injury risk Conditions containing electric shock risk Packaging materials of the product have been manufactured from recyclable materials in accordance with our National Environment Regulations.
  • Page 5 Confidential • Minimum clearances between product parts and surrounding structures must be suitable. • Minimum dimensions and proper organization of ventilation holes must be observed. • The product must be connected to the mains power, and corresponding connections of other components must be suitable. •...
  • Page 6 Confidential Load bearing capacity of the door bins Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Max load 22Ibs (10kg) 33Ibs (15kg) 33Ibs (15kg) 55Ibs (20kg)

  • Page 7: Installation Place

    Confidential Installation place You must follow the instructions below: • The floor on which the product will be installed must be capable of bearing 1,200 pounds (544 kg) minimum. • Kitchen floor and the bottom of the product must be at the same level. Otherwise, problems may occur with the air suction of the product.
  • Page 8 Confidential To avoid the risk of electric shock: • Connect the plug to a grounded 3-pin socket. • Do not remove the ground terminal of the plug. • Do not use adapters. • Do not use extension cables. ATTENTION: Failure to follow these instructions may result in death, fire or electric shock. Connecting the grounding conductor of the equipment to an improper place may lead to electric shock.
  • Page 9 Confidential There is a stainless steel door and stainless kick plate option. Please consult the authored service. Ventilation: Vent holes where the air enters and exits the unit must not be blocked or obstructed. In addition, you must periodically clean the dust and dirt that accumulate on these holes in time. Electrical Connection: •...

  • Page 10: Tool List

    Confidential Tool list Tools to be used when installing the product are as follows: Safety ½" Cordless Goggles Wrench Drill ammer Ladder Ø2.4 Drill bit Ø8.0 Safety Drill bit Cutter Gloves ¼" Tape Star bit measure Wrench Flat Bubble Tape Wheelbarrow Level Tool...

  • Page 11: Alternatives For Installation

    Confidential ALTERNATIVES FOR INSTALLATION The product can be placed in various ways based on the kitchen design. It must be installed at a place where it is ensured that the door can be opened and closed properly. If the doors cannot be opened 90 degrees at least, you cannot completely open the drawers inside the product.

  • Page 12: Preparation For Installation

    Built-in: The Appliance and Panels fully seat into the gap, and a material that can be their own box is jammed between the two kitchen cabinets or decorative columns. This is the most common installation scenario. Cabin dimensions • Cabin dimensions below must be checked before starting the installation. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Category 18" (457mm) 24"...

  • Page 13: Location Of The Electrical Wiring

    Confidential Location of the electrical wiring Location of the electrical wiring must be within the range given below. ATTENTION: Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable. ATTENTION: A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct.

  • Page 14: Location Of The Water System

    Confidential Location of the water system The water connected to the water mains must be potable. Location of the water system must be within the range given below. Water system of the refrigerator must be connected to the water mains system in the house. The user must be able to switch it on/off with the valve when necessary.
  • Page 15 Confidential WARNING: • Flatness of the floor where the product will be installed must be checked with a Bubble Level Tool. • Uprightness of the furniture flanges must be checked with a Bubble Level tool. • If the flatness and uprightness of the product is not proper, problems may arise with the installation.

  • Page 16: Product Dimensions

    Confidential Product dimensions HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Category 17 3/4" (451mm) 23 3/4" (603mm) 23 3/4" (603mm) 29 3/4” (756mm) without panel : 23 5/16” (592mm) with panel : 24 ¼” (616mm) 3 5/8” (93mm)
  • Page 17 Confidential INSTALLATION DIMENSION HRBIAF24PR HRBIAR24PR Category HRBIAF18PR HRBIAR30PR 20” (508) 26” (660) 26” (660) 32” (813) 4 3/8” (110) 4 3/8” (110) 4 3/8” (110) 4 3/8” (110) 11” (280) 14” (356) 14” (356) 16” (406) A : Depth of door (90°open）measured from front of door B : Minimum door clearance to adjacent wall ( 90°- reduced internal access)
  • Page 18 Confidential Anti tip bracket location 3/4” (19mm) Remaining space after install Minimum height adjustment for leveling 22 19/32” (574mm) 1 21/32” (42mm)
  • Page 19 Confidential Gap：1/8” (3mm) (3mm) Gap：1/8” (3mm) (3mm) Height of the kitchen countertop based on the min/max. height of the cabin; standard 4” (101mm) 84” (2134mm) minimum 3 3/4”(96mm) 83 13/16“ （2129mm） maximum 5 3/8“（136mm） 85 3/8“（2169mm）...
  • Page 20 Confidential Category HRBIAF18PR BRBIAF24PR HRBIAR24PR HRBIAR30PR 30” (762mm) 18" (457mm) 24" (609mm) 24" (609mm) 17 3/4" (451mm) 23 3/4" (603mm) 23 3/4" (603mm) 29 3/4” (756mm)

  • Page 21: Unpacking

    Confidential Unpacking WARNING: At least two persons must carry the refrigerator. • Use a box cutter to remove the tapes. • Cut the Packaging Board with a Box Cutter through the section illustrated in dotted lines and remove it.
  • Page 22 Confidential • Remove the Packaging Polystyrene material. ATTENTION: Do not remove the tape of the upper door on the product until the refrigerator is placed into the cabin. Risk of tipping over.

  • Page 23: Removing Connectors On The Rear Wall

    Removing the connectors on the rear wall Part name Spec PVC extrusion L=457 Trim furniture top PVC extrusion L=609 PVC extrusion L=762 PVC extrusion L=1,259 Trim furniture side PVC extrusion L=617 Trim door side PVC extrusion L=1,781 Conference √ Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Abbreviation...

  • Page 24: Removing Mounting Parts In The Drawer Compartment

    Confidential Removing mounting parts in the drawer compartment Part name Spec Remark Anti-tip bracket T4.0, Cr+zn-coating Anti tip bracket screws and dowels M8*L60 Position adjustment jig Cover furniture door bracket Truss washer head M4*12 Bracket furniture door T1.0, Cr+zn-coating Counter sunk head screw ST4x14 Truss washer head M4*12...

  • Page 25: Removing The Vent Hole Assembly

    Removing the vent hole assembly • Remove 5 screws to take out the Vent Hole Assembly.

  • Page 26: Pre-Installation

    Please remember to use the necessary protective equipment when drilling holes on the wall and performing installation. • Mark the wall for anti-tip brackets (item No.1). Anti-tip brackets on the wall Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR 18” (457mm) 24” (609mm) 24”...
  • Page 27 Confidential • Use a drill to create holes for dowels (item No.2) at the marked points. (5/16” -Ø8) • Use the hammer to fit the dowels (item No.2)
  • Page 28 Confidential • Fit the brackets (item No.1) into their places, using 4 screws for each. You must use all of the 2 brackets to ensure safety of the product. WARNING: If you are not sure whether the existing connection parts are fit to the wall as securely as they should be, you can use alternative anti-tip methods.

  • Page 29: Alternative Anti-Tip Method

    Confidential Alternative anti-tip method If the anti-tip brackets cannot be connected securely, you must use the alternative method below. In this method, you can use wooden girders to avoid the risk of tipping over. It must be installed as illustrated in the figure below. There must be no clearance between the product and the wooden girder.

  • Page 30: Preparing The Water Hose And The Power Plug

    Confidential Preparing the water hose and the power plug You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼" for water connections of the product during installation. A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the product. You can choose the method A or method B below to prevent the cable from gettting jammed.

  • Page 31: Installation To The Cabin

    Confidential INSTALLATION TO THE CABIN Taking the refrigerator from the wooden pallet • Remove the brackets that connect the refrigerator to the Wooden Pallet. • Recline the refrigerator slowly and pull back with the help of the cart, and then land it. ATTENTION: The risk of tipping over is high as of this point.

  • Page 32: Placing The Refrigerator Into The Cabin

    Confidential Placing the refrigerator into the cabin • Insert the mains water hose into the duct at the back and take it out from the front.
  • Page 33 Confidential IMPORTANT INFORMATION: • Apply the below method to prevent the cable from getting jammed. Power cord Nylon string Move to wall Water hose • Start the refrigerator and make sure it is energized. (You can check if the lamps compartment are on or off to see if the product is operating). IMPORTANT INFORMATION: You can use tape and similar protectors on parts you think this is necessary to protect the edges of the furniture when placing the product.
  • Page 34 Confidential IMPORTANT INFORMATION: You must use the upper edges of the door when aligning the product with the furniture. Adjustment of other edges are explained in the following pages. 1/8” (3mm)

  • Page 35: Adjusting The Height Of The Refrigerator In The Cabin

    Confidential Adjusting the height of the refrigerator in the cabin • Adjust the refrigerator height using the adjustable feet. WARNING: First of all, raise the front feet to reduce the risk of the cabin falling frontward. A/D –Turn the key clockwise to lift the front B/C –Turn the key clockwise to lift the rear ⚫...

  • Page 36: Adjusting The Refrigerator According To The Cabin Flange

    Confidential Adjusting the refrigerator according to the cabin flange • For product with furniture door, the position of the Refrigerator is adjusted so that the door and the furniture surface are flush. You can also use gage if necessary.
  • Page 37 Confidential ⚫ For products without furniture door, the product is placed using the adjustment part as shown in the figure below. • Position of the level adjustment part (10) must be adjusted according to the thickness of the door. It can adjust the level for 4 different door thickness levels.

  • Page 38: Screwing The Side And Upper Brackets

    Confidential Screwing the side and upper brackets • Fix the bracket furnitures (Item No12) to the unit, where 2 on the top, and 3 on every side. Use the truss washer head screws (Item No14) to tighten. WARNING: Before starting to screw the Side and Upper brackets, please make sure that water is supplied to the product and there is no water leakage.
  • Page 39 Confidential IMPORTANT INFORMATION: If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier. Screwing the bracket furniture on the cabin side wall • Attach the bracket furniture to the furniture with 12screws (Item No13). IMPORTANT INFORMATION: If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier Screwing the bracket furniture on the cabin top wall...

  • Page 40: Installing The Cabin Bottom

    Confidential INSTALLING THE CABIN BOTTOM Water connection • Use the box cutter to cut the water hose from the end of the pipe it comes out, leaving a section of 10" length. • Use the 2 wrenches to firmly connect the hose coming from the mains and the hose coming from the valve.
  • Page 41 Confidential WARNING: Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar). IMPORTANT INFORMATION: Once the connection is complete, you must turn on the mains valve and make sure that there is no leakage at that point.

  • Page 42: Attaching The Vent Hole Assembly

    Confidential Attaching the vent hole assembly • Use 5 screws to attach the vent hole assembly. IMPORTANT INFORMATION: You can move the lower vent hole forward-backward to adjust it to the kick plate in the kitchen. WARNING: Forward-backward travel distance of the lower kick plate must be 15/16" (23 mm). As you can see in the figure, the decorative kick plate must not be in front of the upper vent hole level.

  • Page 43: Attaching The Decorative Parts

    Confidential Attaching the decorative parts • Attach the side closing parts (trim furniture side Item No2) onto the right/left connection brackets. • Attach the upper closing part (trim furniture top Item No1) onto the upper connection bracket.

  • Page 44: Furniture Door Preparation

    FURNITURE DOOR PREPARATION This section contains information about preparing the furniture doors and mounting them to the product. WARNING: Maximum weights of the furniture to be mounted to the product are as follows. Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Weight 66.0 lbs. (30 kg) 66.0 lbs.
  • Page 45 Confidential • You can limit the opening degree of your door to 90° If you want • 90°limit pin (item No.17) is located in the mouting part kit of the drawer box. • Pin must be fully seated in the bracket or the door will not close properly. 90°limit pin should be inserted to upper hinge and lower hinge...

  • Page 46: Removing The Mechanism Covers

    Confidential Removing the mechanism Covers • Remove screws to take out the top hanger bracket cover. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR WARNING: There is a magnet on the top hanger bracket cover. This is a functional part for the operation of the product.
  • Page 47 Confidential • Remove screw to take out the low hanger bracket cover. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR...

  • Page 48: Removing The Panel-Adjustment Mechanisms On The Refrigerator

    Confidential Removing the panel-adjustment mechanisms on the refrigerator • Remove the upper and lower adjusting mechanism assemblies from the door. HRBIAF18PR...
  • Page 49 Confidential TF-18BINFIA HRBIAF24PR HRBIAR24PR HRBIAR30PR...

  • Page 50: Preparing Furniture Door

    Preparing furniture door IMPORTANT INFORMATION: You must take the dimensions into account when grouping the cradle parts on the furniture door. When marking, you can use the "Furniture door preparation template" provided with the product. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR WARNING: Handle connection holes must be adjusted according to the handles to be used in kitchen design.
  • Page 51 1/2 “(12mm) 1 1/16 “(27mm) 7/10 “(18.2mm) 7/10 “(18.2mm) 24” : 23 3/4“(603mm) 30” : 29 3/4”(756mm) 17 3/4“ (451mm) 1/2 “(12mm) 1 1/16 “(27mm) HRBIAF24PR HRBIAF18PR HRBIAR24PR HRBIAR30PR Furniture door cutout dimension √ Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR 451 * 2030...
  • Page 52 You must use screws(item No.15). suitable for the door thickness. • Install cradles using the chipboard screws. You can also use the template provided with the product to align these parts. It is recommended to keep this template for future reference. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR...
  • Page 53 Confidential • Attach the door handle. Screws holding the door handle must not protrude. • Attach the door handle to the furniture door.. Screws holding the door handle must not protrude. WARNING: Handle connection holes must be adjusted according to the handles to be used in kitchen design. WARNING: Minimum thickness of the door must be ¾"...

  • Page 54: Installing The Furniture Door

    Confidential Installing the furniture door 1. Attach the furniture door to the door...
  • Page 55 Confidential • How to align the furniture door upper part with bolts. Position of the Furniture Doors to the kitchen furniture must be flush. To achieve this, you should adjust 3D direction using by two fixing bolt to perform fine adjustments. First of all, review the position of the grouped Furniture Doors against the kitchen furniture.
  • Page 56 Confidential • How to align the furniture door lower part with bolts. Front&back Up & down Fixing furniture door completely Left & right...
  • Page 57 Confidential • Use the bracket furniture door(Item No6) to join the furniture door • Use 2screws (Item No7) and 1screw(Item No5) to fix. HRBIAF24PR HRBIAR24PR HRBIAR30PR...
  • Page 58 Confidential • Clip the cover furniture door bracket. HRBIAF24PR HRBIAR24PR HRBIAR30PR...
  • Page 59 Confidential • Attach and screw the upper/lower decoration cover. HRBIAF18PR...
  • Page 60 Confidential • Attach and screw the upper/lower decoration cover. HRBIAF24PR HRBIAR24PR...
  • Page 61 Confidential • Attach and screw the upper/lower decoration cover. HRBIAR30PR WARNING: You must keep these parts for future use. You will need them if you want to change the door directions.
  • Page 62 Confidential ⚫ After the top and bottom door panel brackets are secured by installing screws, use screw(Item No8) and square washer(Item No9) to secure the center mounting bracket.
  • Page 63 Confidential • Attach the Trim door side (Item No3)

  • Page 64: Hinge Adjustment

    Confidential HINGE ADJUSTMENT Adjusting the hardness of the hinges • Use a drill to adjust the hardness of the upper and lower hinges of the Door. • Set the hinge adjustment screw from position "O" to position "I". WARNING: The door must be fully open during this adjustment. WARNING: This adjustment must definitely be performed after the door has been adjusted.

  • Page 65: Changing The Door Opening Direction

    Confidential CHANGING THE DOOR OPENING DIRECTION Removing the funiture door • Set the hardness level of the hinge to "0". ATTENTION: Failure to set the hinge to "0" and continuing the installation like that may cause injury. • Remove the side closing seals.
  • Page 66 Confidential • Loosen screws of the Upper Cover of the door and remove it. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR...
  • Page 67 Confidential • Loosen screws of the lower cover of the door and remove it. HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR...
  • Page 68 Confidential • Remove the upper adjustment kits. HRBIAF18PR...
  • Page 69 Confidential HRBIAF24PR HRBIAR24PR HRBIAR30PR WARNING: The clad door will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the Furniture Door to the Inner Door or ask for help from another person. •...

  • Page 70: Removing And Preparing The Inner Door

    Confidential Removing and preparing the inner door • Remove the hinge connection screws of the Hinge Brackets. ATTENTION: The clad door will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the Furniture Door to the Inner Door or ask for help from another person.
  • Page 71 Confidential ⚫ Take out door and lay it down on a table. ⚫ Remove the hinge brackets on the fridge door and screw them as shown figure.

  • Page 72: Replacing The Hinges

    Confidential Replacing the hinges • Remove the Hinge Caps located at the other side where you will fix the hi n ges.
  • Page 73 Confidential • Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.

  • Page 74: Air Vent Upper Part Direction Change

    Confidential Air vent upper part direction change Remove the air vent part and change direction as shown figure How to change air vent upper part direction - Air vent upper part for the right hinge Air vent hinge part right Air vent cover - Air vent upper part for the left hinge Rotate air vent cover by 180°...
  • Page 75 Confidential • pper right hinge by loosening its 2 screws and fix it to its slot at the lower left side. Remove the u...
  • Page 76 Confidential • Attach the Hinge Slot Caps removed from the left side to the Hinge Caps to the right side.

  • Page 77: Installing The Door

    Confidential Installing the door ⚫ Place the door to the refrigerator and fix it with 4 screws.
  • Page 78 Cabin dimensions below must be checked before starting the installation. “A” Dual cabin dimension √ Category 18+24 18+30 24+24 24+30 30+30 “A” Dimension 42” (1066mm) 48” (1219mm) 48” (1219mm) 54” (1371mm) 60” (1524mm) Conference √ Category HRBIAF18PR HRBIAF24PR HRBIAR24PR HRBIAR30PR Abbreviation...
  • Page 79 Confidential Location of the Electrical Wiring Location of the electrical wiring must be within the range given below. ATTENTION: Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable. ATTENTION: A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct.
  • Page 80 Confidential Location of the water system The water connected to the water mains must be potable. Location of the water system must be within the range given below. Water system of the refrigerator must be connected to the water mains system in the house. The user must be able to switch it on/off with the valve when necessary.
  • Page 81 Confidential Part name Spec Q’ty Remark Insulation sponge Sponge, gray, T3.0*400*1750 Connecting bracket T2.0, Cr+zn-coating Truss washer head M4*12 Fastener Trim furniture middle PVC extrusion L=1876 Truss washer head screw Spec : M4x12 Fixing Refrigerator Such as cabinet and door (press part)
  • Page 82 Confidential Attaching the fasteners and connecting bracket Screw (3) the Fasteners (4) that are going to be used to connect two refrigerators together to the locations shown in the figure. Fastener Connecting bracket...
  • Page 83 Confidential Stick the Insulation Sponge (1) to the side panel so that the sponge remains in between two cabins.
  • Page 84 Confidential Bring the two refrigerators side by side. After making sure that they are in alignment, screw the fasteners (4) to the other refrigerator.
  • Page 85 Confidential Make power and water connections of the refrigerator as explained before. Push the refrigerators into the cabin.
  • Page 86 Confidential Adjusting the height of the refrigerator in the cabin Adjust the refrigerator height using the adjustable feet. WARNING: First of all, raise the front feet to reduce the risk of the cabin falling frontward. A/D –Turn the key clockwise to lift the front B/C –Turn the key clockwise to lift the rear...
  • Page 87 Confidential Screwing the bracket furniture on the cabin side wall Attach the bracket furniture to the furniture with 12screws.
  • Page 88 Confidential Screwing the bracket furniture on the cabin top wall • Attach the bracket furniture to the furniture with 4screws.
  • Page 89 Confidential Attaching the decorative parts Attach the side closing parts onto the right/left connection brackets. Attach the upper closing part onto the upper connection bracket.
  • Page 90 Confidential Attach the middle closing parts (trim furniture middle Item No5) between two refrigerators.
  • Page 91 Confidential You can see previous pages for other installation procedures.
