OPERATION AND INSTRUCTION MANUAL
Swivel Anchor
Model: DAS-5K
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
V3.0
Advertisement
Table of Contents
Related Manuals for Gemtor DAS-5K
Summary of Contents for Gemtor DAS-5K

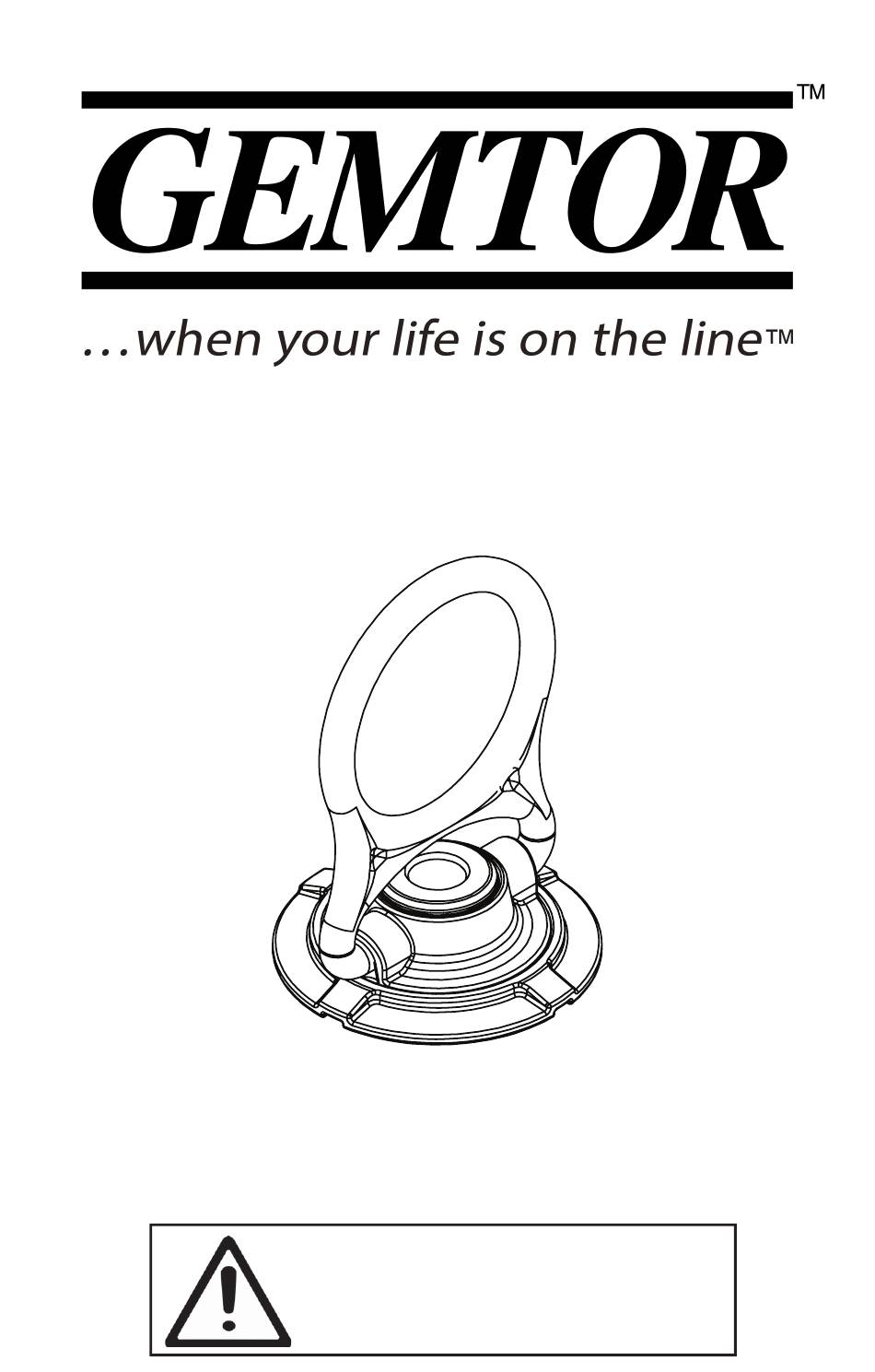

- Page 1 OPERATION AND INSTRUCTION MANUAL Swivel Anchor Model: DAS-5K WARNING: ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
- Page 2 PURPOSE The DAS-5K is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”...
- Page 3 LABEL LOCATIONS 180˚ 2.25”ø (57.15mm) 8.0”ø (203.2mm) 5.5” (139.7mm) 360˚ 3.0” (76.2mm) Tensile Strength (UTS): 5,000-lbf (22kN) Working Load (WLL): 1,000-lbs (454kg) Max Capacity: 310-lbs (140kg) Weight: 1 2-lbs (544.3g) Materials: Zinc Plated Steel Regulatory Compliance: Meets or exceeds ANSI Z359.1(07), ANSI Z359.7(11), OSHA 1926.502, OSHA 1910.66 LOADING CONDITIONS DIAGRAM LOAD...
- Page 4 CONCRETE MOUNTING - Use a proper drill & bit for concrete. (SDS drill bit) - Drill a .5” (13mm) hole no less than 4.5” (114mm) deep and 8” (203mm) away from any edge. - Hole must be straight and perpendicular to surface. - Hole must be free of debris.
- Page 5 PART NUMBER KIT CONTENTS DAS-5K (Anchor Swivel 5K) DAS-5KS-KIT (Steel Mounting Hardware Kit) DAS-5KS (Swivel with Steel Mounting kit) DAS-5KC-KIT (Concrete Hardware Kit) DAS-5KC (Swivel with Concrete Mounting Kit) For more information:...
- Page 6 *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8 kN (1800-lbf ). (ANCHOR POINT) WORK SURFACE *The structure the anchorage is attached to must be able to support 5,000-lbf (22kN) and installed...
- Page 7 MAINTENANCE, CLEANING AND STORAGE Cleaning periodically will prolong the life and proper functioning of the product. The frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a stiff brush using plain water or a mild soap and water solution. Do not use any corrosive chemicals that could damage the product.
- Page 8 LIMITED REMEDY: Upon notice in writing, Gemtor, Inc. will repair or replace all defective items at Gemtor, Inc. ’ s sole discretion. Gemtor, Inc. reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course action. Warranty does not cover equipment damage resulting from wear, abuse, damage in transit, failure to maintain the product or other damage beyond the control of Gemtor, Inc.
