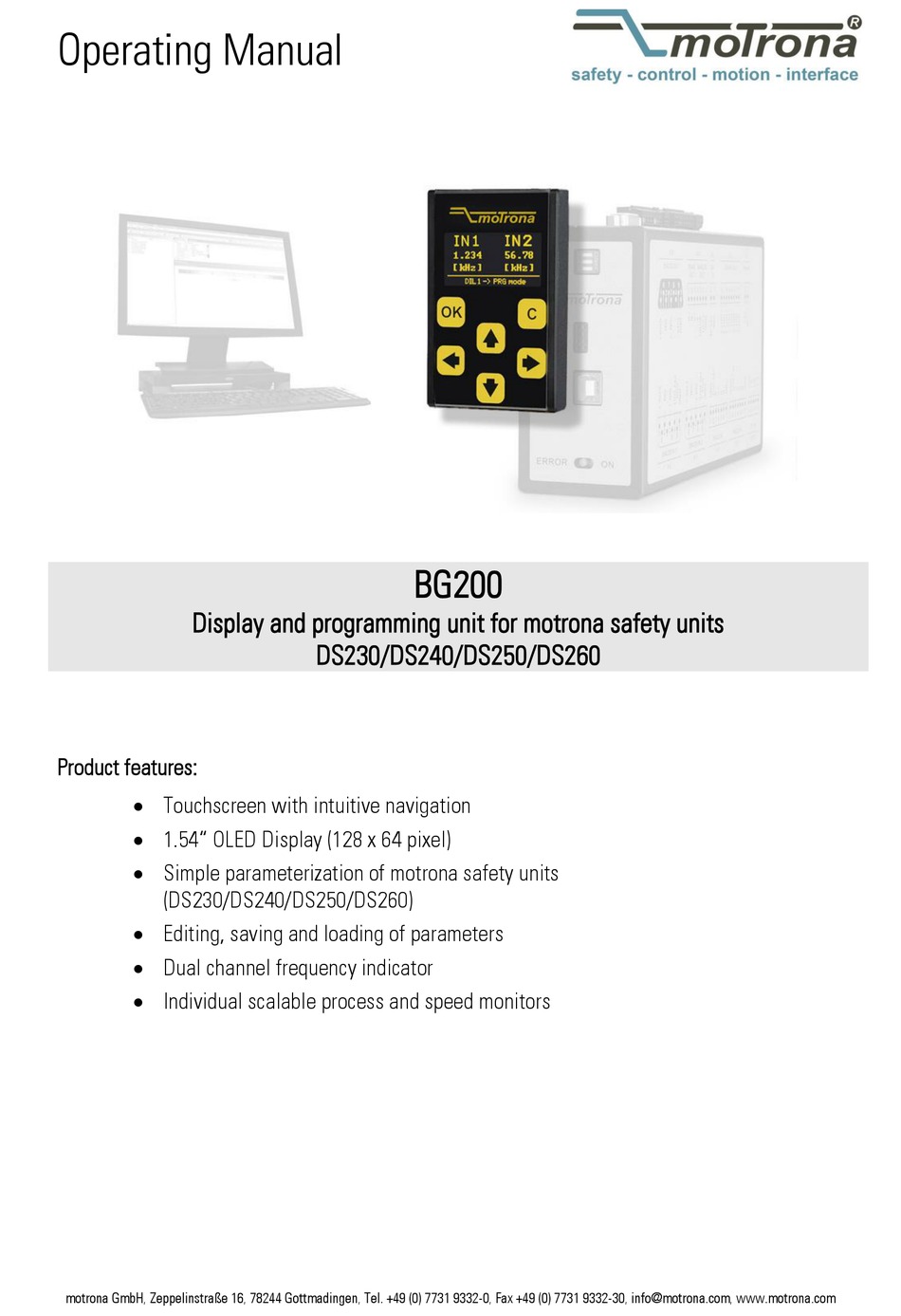

Operating Manual
Display and programming unit for motrona safety units
Product features:
 Touchscreen with intuitive navigation
 1.54" OLED Display (128 x 64 pixel)
 Simple parameterization of motrona safety units
(DS230/DS240/DS250/DS260)
 Editing, saving and loading of parameters
 Dual channel frequency indicator
 Individual scalable process and speed monitors
motrona GmbH, Zeppelinstraße 16, 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
BG200
DS230/DS240/DS250/DS260

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motrona BG200

  • Page 1  Simple parameterization of motrona safety units (DS230/DS240/DS250/DS260)  Editing, saving and loading of parameters  Dual channel frequency indicator  Individual scalable process and speed monitors motrona GmbH, Zeppelinstraße 16, 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com...
  • Page 2 First edition Legal notices: All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any reproduction, modification, usage or publication in other electronic and printed media as well as in the internet requires prior written authorization by motrona GmbH.
  • Page 3: Table Of Contents

    7. Example of an individual scalable Display ..............22 8. Error Messages ......................23 8.1. Error Messages from the Safety Unit ..............23 8.2. Status Messages from the BG200 ................ 24 9. Technical Specifications ..................... 25 Bg200_01a_oi_e.docx Page 3 / 27...
  • Page 4: Safety Instructions And Responsibility

    Dimensions ......................26 10. Installation Form ......................27 1. Safety Instructions and Responsibility 0.0. General Safety Instructions This operation manual is a significant component of the unit and includes important rules and hints about the installation, function and usage. Non-observance can result in damage and/or impairment of the functions to the unit or the machine or even in injury to persons using the equipment! Please read the following instructions carefully before operating the device and observe all safety...
  • Page 5: Installation

    Please find all respective hints and rules on „ www.motrona.com/download.html --> [General EMC Rules for Wiring, Screening and Earthing]”. 0.3. Cleaning, Maintenance and Service Notes To clean the front of the unit please use only a slightly damp (not wet!), soft cloth.
  • Page 6: Functional Description

    With its intuitive operation, the BG200 is quick, easy and flexible to handle. The unit can be used via PC or directly connected with the safety unit. The BG200 offers a wide range of functions and features (depending on the type of safety device and the DIL switch setting).
  • Page 7: Mounting On Safety Unit

    3. Mounting On Safety Unit The mounting of the programming unit BG200 can be done by simply plugging the programming unit at the safety device. Via the 8-position pin strip, both units will be connected. A mechanical polarity protection ensures that the device cannot be plugged wrong. Neodymium magnets ensure a safe connection.
  • Page 8: Parameterizing The Safety Unit

    5. Parameterizing the Safety Unit The BG200 is operated by using the 6 buttons of the touchscreen key panel. The button OK is used to confirm entries The „Cancel“ resp. „ESC“ button is used to leave the menu or go back one menu-level.
  • Page 9: Unit Mode „Normal Operation

    5.1. Unit Mode „NORMAL OPERATION“ The DIL-switch positions of the safety unit are: By using the arrow buttons, this mode allows to change the displays of the BG200 as follows: 5.1.1. Display 1: Frequencies (Hz) Both input frequencies of sensor1 and sensor2 are indicated with one decimal place (see “Operational Mode”...
  • Page 10: Modus „Factory Settings

    In order to keep the actual parameter settings safety, these can be stored in the flash memory of the BG200 unit. At first the parameters must be transmitted from the safety unit into the BG200 (see chapter 5.4). Then the parameters can be stored (see chapter 5.6).
  • Page 11: Programming Mode

    5.3. „PROGRAMMING MODE“ The DIL-switch positions of the safety unit are: In this mode the parameters of the programming unit BG200 or the parameters of the safety unit can be editing by the touch panel. If the programming unit is protected by a PIN-Code, first of all enter the required PIN (see chapter 5.7).
  • Page 12: Menu Structure Of The Safety Unit

    Please find the relevant parameter list of the safety units in the respective operation manual! The first menu level serves for selection of the parameters to be edited (BG200 or Safety Unit). To edit the safety unit, please select “Safety Unit”.
  • Page 13: Load Parameter

    5.4.2. BG200 Parameters The „Load Data From …“ menu is only for safety unit parameters available. The parameters for the BG200 unit are loaded directly after „Display Unit“ was selected in the first menu level. Bg200_01a_oi_e.docx Page 13 / 27...
  • Page 14: Edit Parameter

    C to leave the entry. After changing parameters these must be saved. This is important to ensure, that the changes took effect also after power-off or when the BG200 has been removed from the safety unit (see chapter 5.6).
  • Page 15: Save Parameter

    Then press OK to confirm. Select „Save Data To Flash Memory“ to save parameters of the safety unit into the flash memory of the BG200. Then press OK to confirm. 5.6.2. Save Parameter to Display Unit To save parameters in the BG200, please select „Save Data To Display Unit“...
  • Page 16: Master Pin And User Pin

    You can enter a 4-digit PIN code of your choice. After confirming with OK, the change must still be saved (see chapter 5.6) so that next time the BG200 control unit is protected by a PIN code. When using a "User PIN", a "Master PIN" should always be assigned too so that access to the BG200 parameters is retained.
  • Page 17: Bg200 Parameter List

    Serial Baud Rate Serial Format *) If the version of the safety device is lower 04A, scaling parameters are in BG200. When safety device version is higher DS23004A scaling parameters are in the “OPU Menu” of the safety device. Bg200_01a_oi_e.docx...
  • Page 18 Bg200_01a_oi_e.docx Page 18 / 27...
  • Page 19: Input Scaling For Display 3 And 4

    6.1. Input Scaling for Display 3 and 4 This Menu is in safety device as OPU Menu, when safety device version is higher DS23004A! Parameter Max Default X Factor 1: -999999 +999999 By this value, the input frequency 1 is multiplied and visualized in the display mode 3.
  • Page 20: Unit Settings

    Defines a PIN code for access. With setting “0000“ the PIN request is not active. Any other value will be overtaken as PIN code with the next power-on of the BG200. Touch Tones: This value is used to set keypad tones active / inactive.
  • Page 21: Serial Settings

    This parameter determines the baud rate for the transmission of the initialization values to the operator surface OS6.0 respectively to the BG200 programming- and display unit. 0: The initialization values will be transmitted with 9600 baud. After initialization the unit works with the user settings again.
  • Page 22: Example Of An Individual Scalable Display

    “Operational Mode” of the safety unit. *) If the version of the safety device is lower 04A, scaling parameters are in BG200. When safety device version is higher DS23004A scaling parameters are in the “OPU Menu” of the safety device.
  • Page 23: Error Messages

    8. Error Messages 8.1. Error Messages from the Safety Unit Error- resp. status-messages will be shown below the diving line of the BG200 display. Runtime Error / Initial Error: Error messages from the safety device are indicated as a hexadecimal number (H) given in the status line of the display.
  • Page 24: Status Messages From The Bg200

    Serial Error: In case of errors during the serial transmission (e. g. parity errors or transmission errors), the „Serial Error“ message is released. Then the BG200 must be removed and connected again for a re- initialization of the serial interface.
  • Page 25: Technical Specifications

    9. Technical Specifications Power supply: Input voltage: directly via a motrona safety unit Protection: mechanical polarity protection Power consumption: approx. 100 mA Connection: 8 position pin strip Display elements: Display: 1.54“ OLED display Resolution: 128 x 64 pixels Brightness: digitally adjustable (99 steps)
  • Page 26 9.1 Dimensions Front view Side view Bg200_01a_oi_e.docx Page 26 / 27...
  • Page 27 10. Installation Form Date: Operator: Unit: BG200 Software: Serial No.: Input Scaling X Factor 1 / Divisor 1 +/- Value 1 Units 1 Decimal Point 1 X Factor 2 / Divisor 2 +/- Value 2 Units 2 Decimal Point 2...
