- Page 1 INSTALLATION MANUAL MILANO SERIES GENOVA 120 13 MAR 2018 - V 1.2...
- Page 2 CONGRATULATIONS Congratulations and thank you for choosing a Falmec rangehood. To avoid the risks that are always present when you use an electrical appliance it is important that the rangehood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
- Page 3 PRODUCT DESCRIPTION & CARTON CONTENTS CARTON 1 - HOOD UNIT INTEGRATED HOOD - REMOTE MOTOR Models include: MILANO F3ML60S1, F3ML90S1, F3MLD90S1, F3MLD12S1 and GENOVA F3GV12S1 Included in the carton: 1. Main hood housing including control module and lighting 2. Baffle filters 3.
-
Page 4: Safety Instructions And Warnings
If the equipment is sold or transferred to another person, make sure that the booklet SAFETY INSTRUCTIONS is also supplied so that the new user can be made aware of the hood’ s operation and relative warnings. AND WARNINGS After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. -
Page 5: Operation
OPERATION OPERATING YOUR CONTROL PANEL WITH THE 6 BUTTON TOUCH CONTROL Turning the extraction function ON or OFF: • In standby mode, press button 2 to turn on operating mode, then press buttons 3 through to 5 to change the speed. •... - Page 6 USING THE RADIO CONTROL 2) - PAIRING THE RADIO CONTROL WITH THE HOOD USING THE ELECTRONIC PUSHBUTTON PANEL WARNINGS!: The radio control is optional. press TIMER on the hood pushbutton panel for 2 seconds: Follow the entire procedure described below if purchased. the red LED lights up.
-
Page 7: Maintenance
MAINTENANCE DISPOSAL AFTER END OF LIFE Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch. The crossed-out trash or refuse bin symbol on the appliance means that the Do not use detergents containing abrasive, acidic or corrosive substances product is WEEE, i.e. - Page 8 Please follow the installation instructions carefully. Every FALMEC rangehood must be ducted to the external or in-roof motor unit by the use of non-flammable ducting. The rangehood must not be ducted into a wall cavity or a ceiling space where a build-up of grease can occur and become a potential fire risk.
- Page 9 PART 1: HOOD INSTALLATION GUIDE - INTEGRATED HOODS - REMOTE MOTOR INTEGRATED HOOD Models include MILANO F3ML60S1, F3ML90S1, F3MLD90S1, F3MLD12S1 and GENOVA F3GV12S1 WARNING DIMENSIONS ARE ACCURATE AT THE TIME OF PRINTING, PR KITCHEN & WASHROOM SYSTEMS PTY LTD RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE. FOR BUILDING PURPOSES THE UNIT SHOULD BE PROVIDED TO THE CABINET MAKER / BUILDER / KITCHEN DESIGNER FOR EXACT MEASUREMENTS.
- Page 12 MILANO 60 / 90 379 / 689 505 / 815 560 / 870 512 / 822 CUTOUT DIMENSIONS...
- Page 13 MILANO 90 / 120 DEEP 563 / 852 804 / 1094 870 / 1160 814 / 1104 CUTOUT DIMENSIONS...
- Page 14 GENOVA 120 1095 1160 1110 CUTOUT DIMENSIONS...
- Page 15 REMOTE MOTOR SOLUTIONS EXTERNAL ROOF SOLUTION 765, 1140 & 2010m3/h Ø 403 / 445 1. Fan power supply connects to internal hood unit 2. Tile or metal roof flashing (optional accessory) 3. Rigid duct mount (optional accessory) 4. 200mm flexi ducting (attached to internal hood unit)* *Advise to include gentle bend in duct run as well ensuring ducting is pulled tight and excess removed.

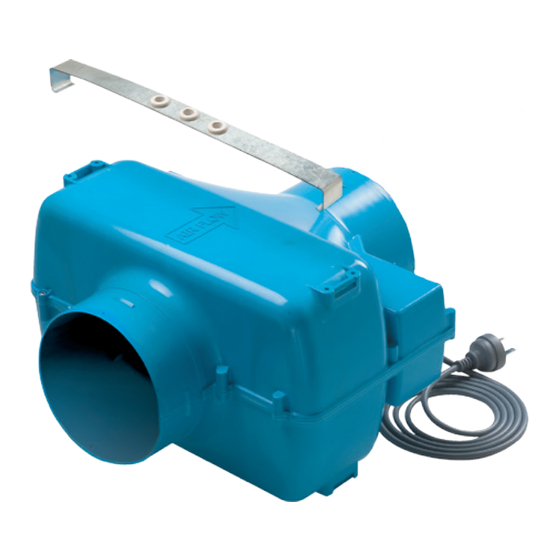

- Page 16 PART 2: MOTOR INSTALLATION GUIDE IN ROOF SOLUTION Mounting Bracket Outlet Positioning your In-Roof Unit: It is recommended that the In-Roof motor unit be mounted in a roof space or wall cavity. Please ensure that the In-Roof motor unit is positioned in an environment that is free of other gases to enable an efficient expulsion of the cooking by-products and to ensure that back draft of...
- Page 17 PART 2: MOTOR INSTALLATION GUIDE EXTERNAL ROOF SOLUTION - METAL ROOF INSTALLATION Inspection: Ensure the unit has arrived in good condition and that the impeller will spin freely. This product is designed to be installed on a roof up to 45° pitch. 1.
- Page 18 PART 2: MOTOR INSTALLATION GUIDE EXTERNAL ROOF SOLUTION - TILE ROOF INSTALLATION Inspection: Ensure the unit has arrived in good condition and that the impeller will spin freely. This product is designed to be installed on a roof up to 45° pitch. 1.
- Page 19 PART 2: MOTOR INSTALLATION GUIDE EXTERNAL WALL SOLUTION Inspection: Ensure the unit has arrived in good condition and that the impeller will spin freely. Installation: 1. Installation of this product should be carried out by appropriately qualified persons. 2. This fan is designed for connection to 200 mm duct using duct tape or clamps. 3.
- Page 20 EW-765 / EW-1140 SPECIFICATIONS 4 holes All measurements in mm EW-2010 SPECIFICATIONS 4 holes All measurements in mm...
- Page 21 You are also entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. The benefits under FALMEC’ s warranty are in addition to other rights you have at law in relation to the appliances or services to which the warranty relates.
- Page 22 Should you ever need to make a warranty related enquiry about your FALMEC product simply call 03 9700 9100 (Australia) or 09 964 0400 (New Zealand) to speak with our friendly customer service consultants. We suggest you have the following information close at...
