EVEBASE MOVE 2000 User Manual

Power station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
POWER STATION MOVE 2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVE 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for EVEBASE MOVE 2000

Summary of Contents for EVEBASE MOVE 2000

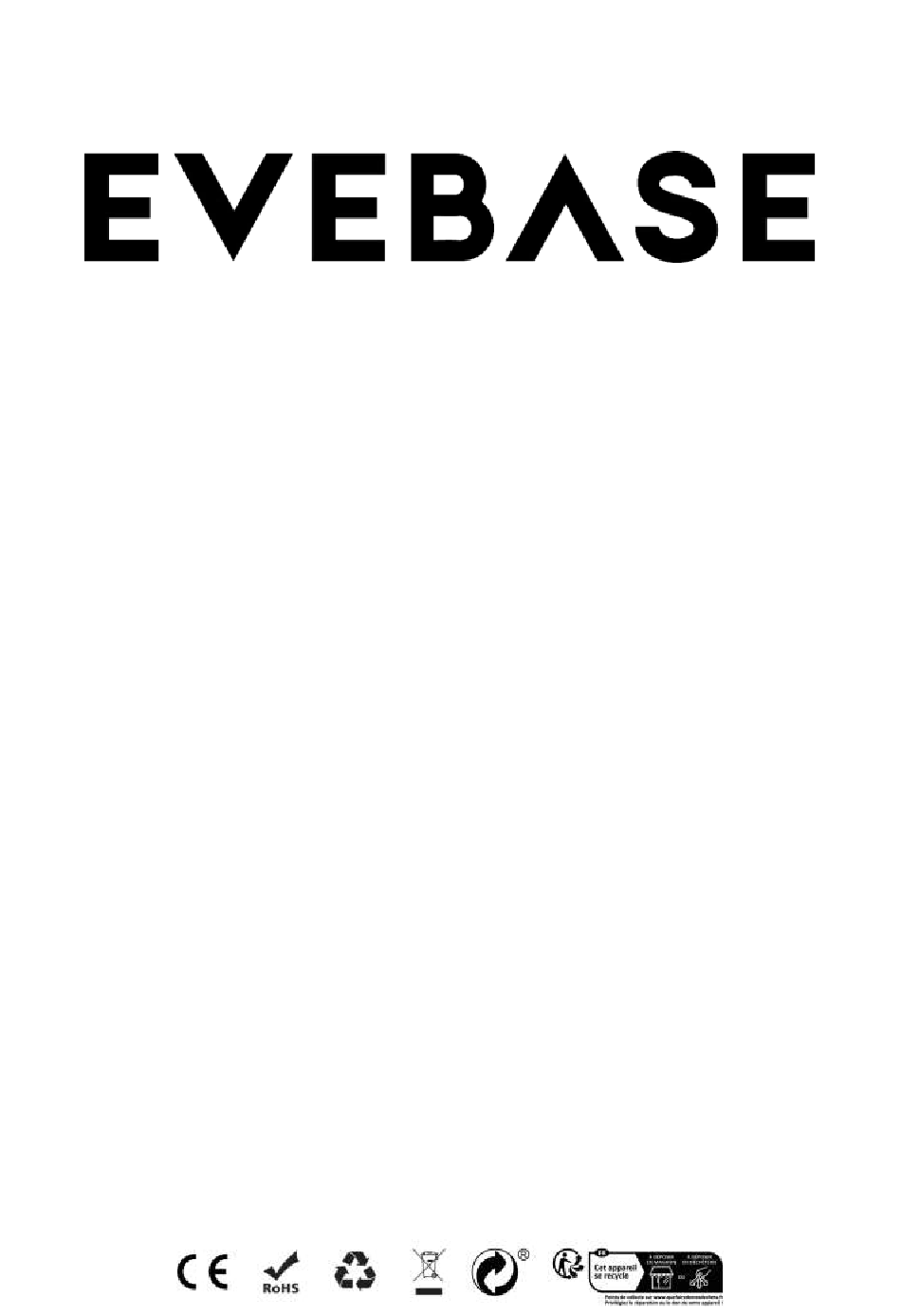

  • Page 1 USER MANUAL POWER STATION MOVE 2000...

  • Page 2: Table Of Contents

    CONTENT SAFETY INSTRUCTIONS AC OUTPUT PARAMETER PRODUCT INTRODUCTION LCD DISPLAY UPS MODE SOLAR PANEL CHARGING CAR CHARGING PRODUCT SPECIFICATIONS BATTERY SPECIFICATIONS PROBLEMS AND RESOLUTIONS...

  • Page 3: Safety Instructions

    Only official parts or accessories can be used with this product. If any accessories need to be replaced, please contact Evebase for more information. Do not charge the product with a charging device that does not meet the specified parameters and please do not use extension cords and cable taps.
  • Page 4 14. Avoid usage/ storage near any heat source (fire, car in direct sunlight etc.). 15. Don’t use any wires or metal objects that can result in a short circuit. 16. No items can be stacked on top of the product. 17.

  • Page 5: Ac Output Parameter

    AC OUTPUT PARAMETER Type of AC port AC output US/JP 100V~120V 50/60Hz 220V 50Hz 230V 50Hz 220V~240V 50Hz 220V 60Hz...

  • Page 6: Product Introduction

    PRODUCT INTRODUCTION This product is a high power portable power station, suitable for family emergency power cuts, outdoor travel, emergency relief, field work and other scenarios. The product has a built-in LiFePO4 battery, which supports adapter, car charger, photo-voltaic panel and other charging methods.
  • Page 7 4. DC button Operate method: short press to turn on/off. 5. LCD display The display shows the remaining power and different using data. 6. Cooling system When the fans are working, please do not block the channel. 7. AC button (AC output, total combined 2000W) Operate method: short press to turn on/off.

  • Page 8: Lcd Display

    LCD DISPLAY Charging/ using time Total output power AC charging Fan state LED light Anderson charging High/low temperature protection AC output DC output Power percentage Type-C output Car port output Total input power USB output XT-60 output When this icon lights up, please keep the air intake/ outlet unobstructed. When this icon lights up, please note that the operating temperature of the device is too high or too low.

  • Page 9: Ups Mode

    When the power grid is cut off, it will immediately switch to the internal battery capacity, in order for you to keep on working. Evebase is not responsible for any abnormal operation or data loss caused by careless use. In case the power station jumps into UPS mode in Europe or the United Kingdom and the AC output exceeds the maximum power of 2000W, the AC output icon will start to flash, indicating overload.

  • Page 10: Solar Panel Charging

    SOLAR PANEL CHARGING The product can be charged through solar panels. Maximum solar panel input is 500W (maximum 50V voltage). The solar panel charging power may fluctuate according to the weather conditions. Solar panel voltage exceeding 50V will damage the equipment and isn’t covered by warranty. CAR CHARGING This power station can be charged by the cigarette lighter in the car, with an ACC cable.

  • Page 11: Product Specifications

    PRODUCT SPECIFICATIONS Product EveBase Power Station Move 2000W Product dimensions L*W*H = 392*279*323mm Product net weight 22 kg Rated capacity 1997Wh AC Charging 50/60Hz 1100W max MPPT input 11.5-50V 20A 500W max 50/60Hz (frequency switch available), rated 2000W, peak 4000W, AC Output pure sine wave.

  • Page 12: Battery Specifications

    BATTERY SPECIFICATIONS Type of battery 32130 LiFePO4 Single cell rated voltage 3.2V Single cell rated capacity 13Ah Battery pack rated voltage 51.2V Battery pack output voltage range 43.2-57.6V Battery pack rated capacity 1997Wh Battery pack maintenance If not used for 3 months, product should be recharged...

  • Page 13: Problems And Resolutions

    2. After checking if all components are Overload protection function normal, turn on the power button. Charging unavailable activated. 3. Press the overload protection button to connect the AC cable to recover AC input. EveBase Tech B.V. Oostwal 2 1747 EZ Tuitjenhorn The Netherlands support@evebase.com www.evebase.com...
