COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd. ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as "EZVIZ"). This user manual (hereinafter
referred to as "the Manual") cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated,
EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to
the Manual.
About this Manual
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information contained
in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please
find the latest version in the
™ website (http://www.ezviz.com).
Revision Record
New release – January, 2023
Trademarks Acknowledgement
™,
™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various
jurisdictions. Other trademarks and logos mentioned below are the properties of their respective
owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH
ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS,
AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH
THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL
LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS
THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER
INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR
PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT
LIMITATION, USING ANY THIRD PARTY'S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG
OTHERS.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,
VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS AND DATA PROTECTION
LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION
BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE
APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH
ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER
PREVAILS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ezviz T35

  • Page 1 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
  • Page 2: Table Of Contents

    1� Package Contents ���������������������������������������������������������������������������������������������������������������������������������������� 1 2� Basics ���������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Get the EZVIZ App ������������������������������������������������������������������������������������3 Basic wiring diagram ��������������������������������������������������������������������������������3 Add Your Device to EZVIZ App �������������������������������������������������������������������4 Device Installation ������������������������������������������������������������������������������������5 1� Cut the Power Off ������������������������������������������������������������������������������������������������������������������������������������������ 5 2� Connect the Cables ���������������������������������������������������������������������������������������������������������������������������������������� 6 3�...
  • Page 3: Overview

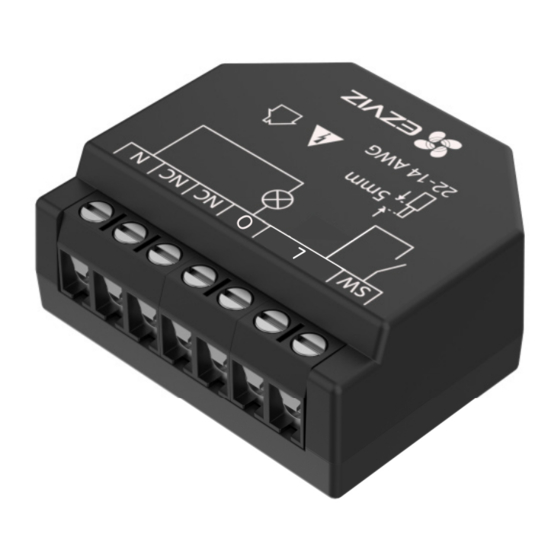

    Overview T35 Wi-Fi Relay is a small form factor smart switch, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
  • Page 4: 2� Basics

    2� Basics The following description takes T35 with power meter as an example. Basic Wiring Diagram Wiring Terminals Front View RESET Button Connection Instruction Back View * RESET Button Use the pin to poke the RESET button for 5s, the device will restore to factory settings.
  • Page 5: Get The Ezviz App

    Get the EZVIZ App 1. Connect your mobile phone to Wi-Fi (suggested). 2. Download and install the EZVIZ app by searching for “EZVIZ” in the App Store or Google Play 3. Launch the app and register an EZVIZ user account.
  • Page 6: Add Your Device To Ezviz App

    Add Your Device to EZVIZ App 1. Log in to your account through EZVIZ app, tap the device adding icon and then the QR code scanning interface will be displayed. 2. Scan the QR code on the back of the device or on the cover of the user manual.
  • Page 7: Device Installation

    Device Installation • Before installation, make sure that there the cable insulation is not damaged. • Please make sure that the installation should be performed by a qualified electrician. • Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals! •...
  • Page 8: 2� Connect The Cables

    2� Connect the Cables 1. Connect both L terminals to the Live cable and the N terminal to the Neutral cable. 2. Connect the load circuit to the O terminal and the Neutral cable. Please connect the device to button or switch as you needed. In case the inputs are configured as buttons: •...
  • Page 9: 3� Install The Device

    3� Install the Device After the wiring is finished, install the device behind the switch or button by referring to the following figure, and then use a screwdriver to tighten the switch or button, and the installation is completed.
  • Page 10: Operations On The Ezviz App

    The App interface may be different due to version update, and the interface of the App you installed on your phone shall prevail. 1� Wi-Fi Relay Page When you launch the EZVIZ app, you can manage your device as needed. Icon Description Settings. View or change the device settings.
  • Page 11 Parameter Description Name Customize the name of your device. Device Information You can see the device information here. Network Settings View the Wi-Fi your device connected. Delete Tap to delete the gateway from EZVIZ App.
  • Page 12: 2� Switch Page

    Share. Share your device with anyone you want. Switch. Tap to Open/close the light. Timer. Tap to set a scheduled plan. Power Meter. Tap to view the power meter. * This feature is only applicable to the T35 with power meter.
  • Page 13 Set power protection, voltage protection, current protection and Security Settings the max value of them. * This feature is only applicable to the T35 with power meter. Tap to export history data to your email box. Export History Data * This feature is only applicable to the T35 with power meter.
  • Page 14: Ezviz Connect

    Before you start, make sure that: 1. EZVIZ devices are connected to the EZVIZ app. 2. In the EZVIZ app, turn off the "Video Encryption" and turn on the "Audio" in the Device Settings page. 3. You have an Alexa-enabled device (i.e. Echo Spot, Echo-Show, All-new Echo-Show, Fire TV (all generations), Fire TV stick (second generation only), or Fire TV Edition smart TVs).
  • Page 15: 2� Use Google Assistant

    The following devices and apps are required: 1. A functional EZVIZ app. 2. In the EZVIZ app, turn off the "Video Encryption" and turn on the "Audio" in the Device Settings page. 3. A TV with functional Chromecast connecting to it.
  • Page 16: Specification

    SPECIFICATION Parameters Descriptions Product Size(H*W*D) 43.8 ×38.5 ×18.5mm Power Supply 100-240 VAC, 50/60 Hz Electrical Consumption <1.5W Working Temperature -10°C-45°C Controlling Elements 16A relay Max Switching Voltage 250V AC Radio Protocol IEEE 802.11b/g/n...
  • Page 17: Information For Private Households

    INFORMATION FOR PRIVATE HOUSEHOLDS 1. Separate collection of waste equipment: Electrical and electronic equipment that has become waste is referred to as waste equipment. Owners of waste equipment must dispose of it separately from unsorted municipal waste. In particular, waste equipment does not belong in household waste, but in special collection and return systems.
