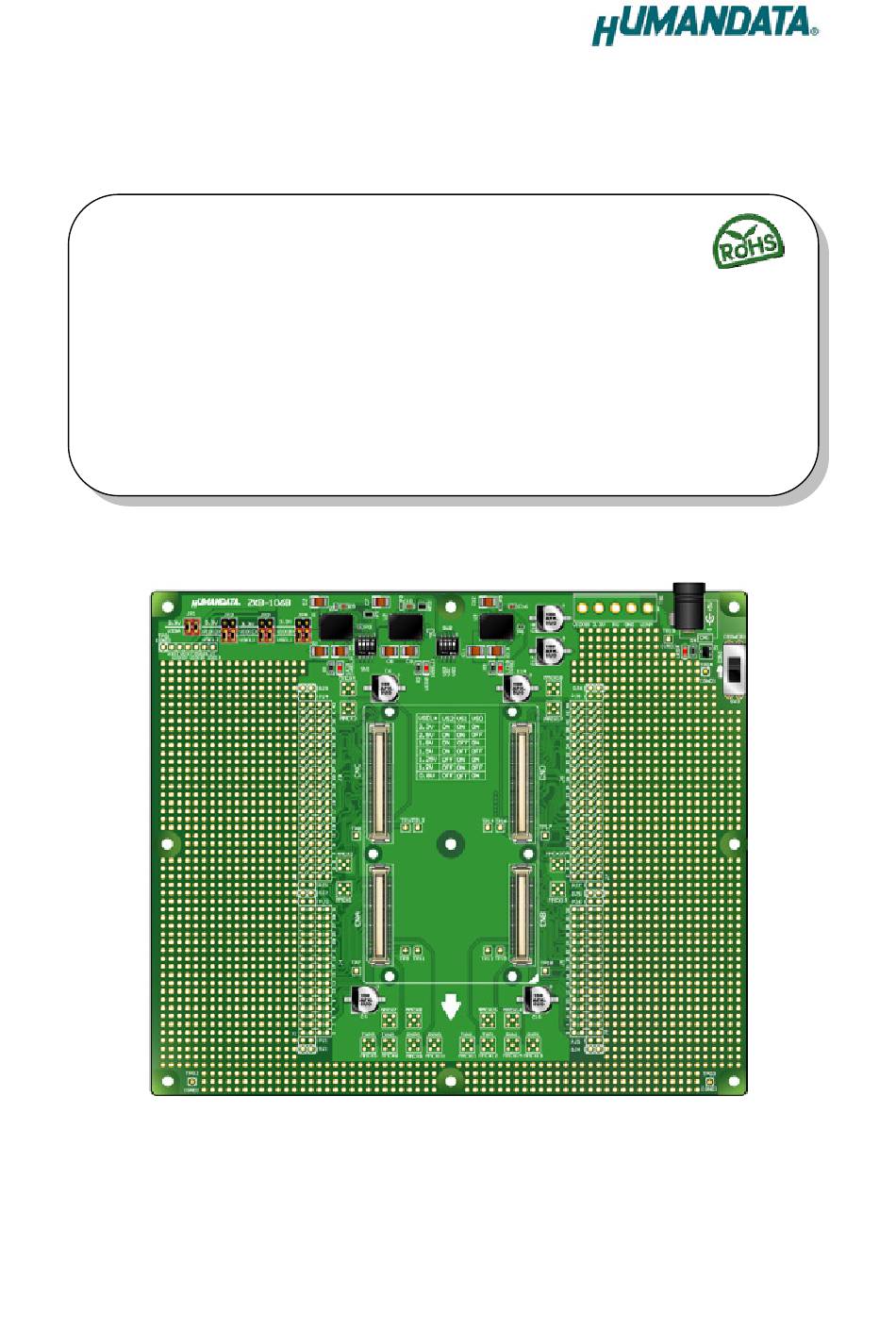

- Page 1 Universal Board for ACM/XCM-2 Series (Type2) ZKB-106 (Rev2) Ver. 2.0 HuMANDATA LTD.
-
Page 2: Table Of Contents
Table of Contents Revision History ....................1 Introduction ....................1 1. Specifications ..................... 2 2. Overview ......................3 2.1. Name of Parts .......................3 2.2. Power Supply ......................4 2.3. DC Jack (CN1) ......................4 2.4. Terminal Block (TB1) ...................4 2.5. Setting Switch (SW2) ...................5 2.6. - Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
-
Page 4: Revision History
Introduction Thank you for purchasing our product. ZKB-106 is a universal board for HuMANDATA ACM/XCM-2 series FPGA board. This board has variable power circuit for VCCIOs of CNB, CNC and CND. The voltage is configurable from 0.8V to 3.3V by setting jumpers. -
Page 5: Specifications
1. Specifications Model Name ZKB-106 DC 5 [V], two-way input : Power Input ・ DC Jack (dia. 2.1 [mm], center plus) ・ Terminal block (option) Power Circuit DC/DC converter: EN5335QI (Empirion, MAX 3A) Dimensions 7.244" x 6.142" (184 x 156 [mm]) Weight 135 [g] Typ. -
Page 6: Overview
2. Overview 2.1. Name of Parts Power Circuit Power Input Power Switch Connectors for ACM/XCM-2 Series * ACM/XCM-1 Series also can be connected Component Side (* no components on the solder side) ZKB-106 v2... -
Page 7: Power Supply
2.2. Power Supply Please use a DC jack connector or a terminal block for power input. This board operates from single DC 5.0V power supply. The power supply should be sufficient and stabilized. 2.3. DC Jack (CN1) Please use center plus cable for DC jack. Center minus cable cannot be used. Dir. -
Page 8: Setting Switch (Sw2)
2.5. VIO Setting (CNB, CNC, CND) Power supply to CNB (VIO(B)), CNC (VIO(C)) and CND(VIO(D)) can be adjusted from 0.8V to 3.3V by setting JP2, JP3 and JP4 jumpers. Example of setting jumpers Short Position BOTTOM VIO(B) VSEL1 VIO(C) VSEL1 VIO(D) VSEL2 * Jumpers are set to bottom by default... -
Page 9: Spacer Set
2.7. Spacer set Please fix ACM/XCM-2 series board to ZKB-106 by accessories shown below. Set Items Qty. Binding head Screw (M2 x 3.5) Plastic spacer (DURACON) 3. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/ACC/zkb-106/ Circuit Schematic ... - Page 10 Universal Board for ACM/XCM-2 Series (Type2) ZKB-106 User’s Manual Ver. 1.0 ........... May. 28, 2014 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
