S

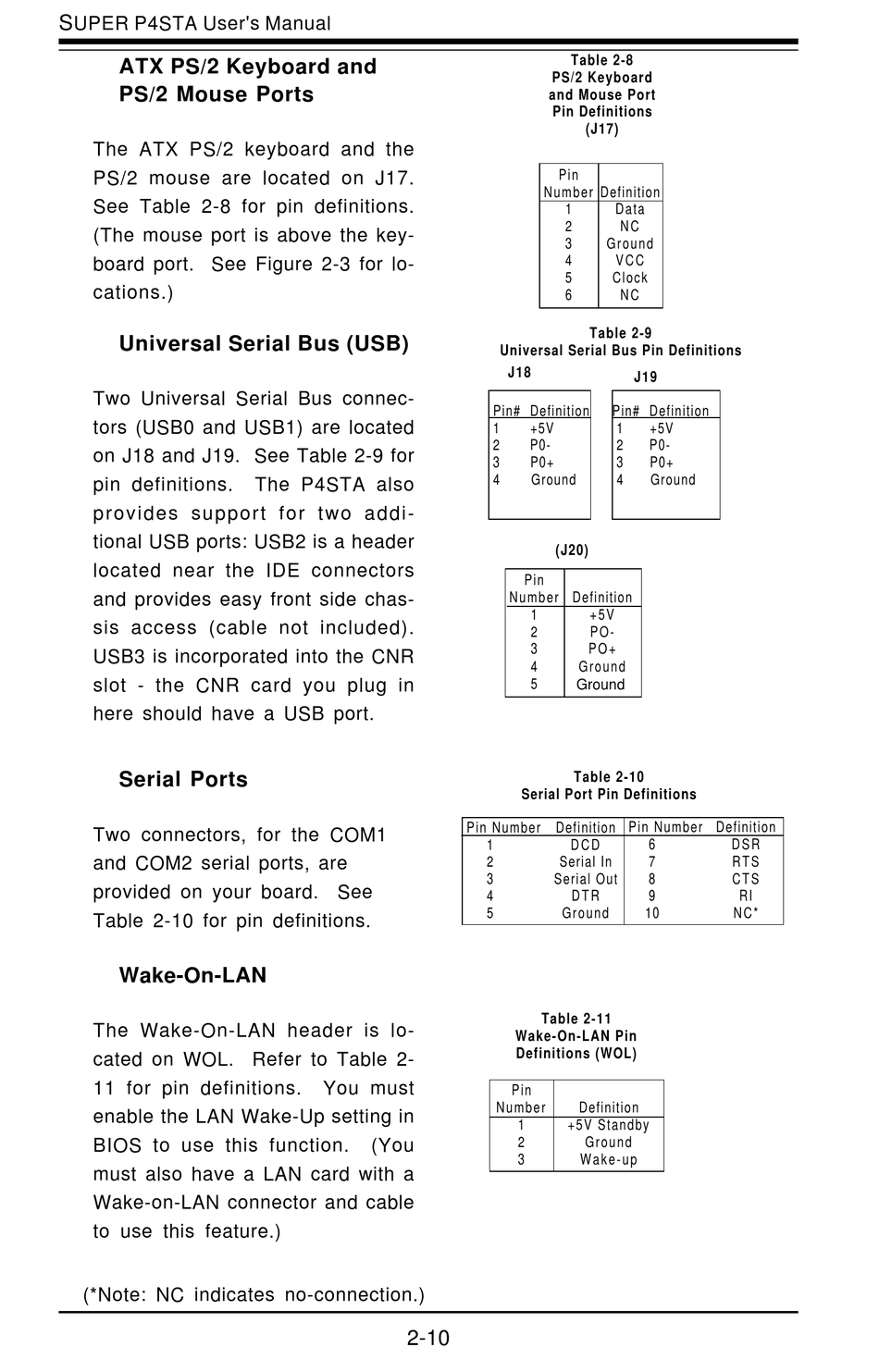

UPER P4STA User's Manual
ATX PS/2 Keyboard and
PS/2 Mouse Ports
The ATX PS/2 keyboard and the
PS/2 mouse are located on J17.
See Table 2-8 for pin definitions.
(The mouse port is above the key-
board port. See Figure 2-3 for lo-
cations.)
Universal Serial Bus (USB)
Two Universal Serial Bus connec-
tors (USB0 and USB1) are located
on J18 and J19. See Table 2-9 for
pin definitions.
provides support for two addi-
tional USB ports: USB2 is a header
located near the IDE connectors
and provides easy front side chas-
sis access (cable not included).
USB3 is incorporated into the CNR
slot - the CNR card you plug in
here should have a USB port.

Serial Ports

Two connectors, for the COM1
and COM2 serial ports, are
provided on your board. See
Table 2-10 for pin definitions.

Wake-On-LAN

The Wake-On-LAN header is lo-
cated on WOL. Refer to Table 2-
11 for pin definitions.
enable the LAN Wake-Up setting in
BIOS to use this function.
must also have a LAN card with a
Wake-on-LAN connector and cable
to use this feature.)
(*Note: NC indicates no-connection.)
The P4STA also
You must
(You
2-10
Table 2-8
PS/2 Keyboard
and Mouse Port
Pin Definitions
(J17)
Pin
N u m b e r Definition
1 Data
2
3 G r o u n d
4 V C C
5 Clock
6
Table 2-9
Universal Serial Bus Pin Definitions
J18
Pin# Definition Pin# Definition
1 +5V 1
2 P0- 2
3 P0+ 3
4 Ground 4
(J20)
Pin
N u m b e r Definition
1 + 5 V
2 P O -
3 P O +
4 G r o u n d
5 K e y
Ground
Table 2-10
Serial Port Pin Definitions
Pin Number Definition
Pin Number Definition Pin Number Definition
1 D C D
1 D C D
2 Serial In
2 D S R
3 Serial Out
3 Serial In
4 D T R
4 R T S
5 G r o u n d
5 Serial Out
Table 2-11
Wake-On-LAN Pin
Definitions (WOL)
Pin
N u m b e r Definition
1 +5V Standby
2 G r o u n d
3 W a k e - u p
N C
N C
J19
+5V
P0-
P0+
Ground
Pin Number Definition
6 D S R
6 C T S
7 R T S
7 D T R
8 C T S
8 RI
9 RI
9 G r o u n d
10 N C *
10 N C
