TROUBLESHOOTING
7) Temperature changing table of ice room
Set item
Reference
Value
Setting value
FZ compartment
compensation
Code
0 0℉(0.0℃)
1 -1℉ (-0.5℃)
2 -2℉ (-1.0℃)
3 -3℉ (-1.5℃)
4 -4℉ (-2.0℃)
5 -5℉ (-2.5℃)
6 -6℉ (-3.0℃)
7 -7℉ (-3.5℃)
8 +1℉ (+0.5℃)
9 +2℉ (+1.0℃)
10 +3℉ (+1.5℃)
11 +4℉ (+2.0℃)
12 +5℉ (+2.5℃)
13 +6℉ (+3.0℃)
14 +7℉ (+3.5℃)
15 +8℉ (+4.0℃)
8) Temperature changing table of Ice Maker Dropping Temperature
Set item Ice Maker Dropping Temperature
Reference
Value
Setting value
FZ compartment
compensation
Code
0
1
2
3
4
5
6
7
Ice Room Temp Shift
Fridge Room 7-SEG
34
Temp.
Fridge Room 7-SEG
35
Temp.
-13 ℃
-12 ℃
-11 ℃
-10 ℃
-14 ℃
-15 ℃
-16 ℃
-17 ℃
Reference Value
Code

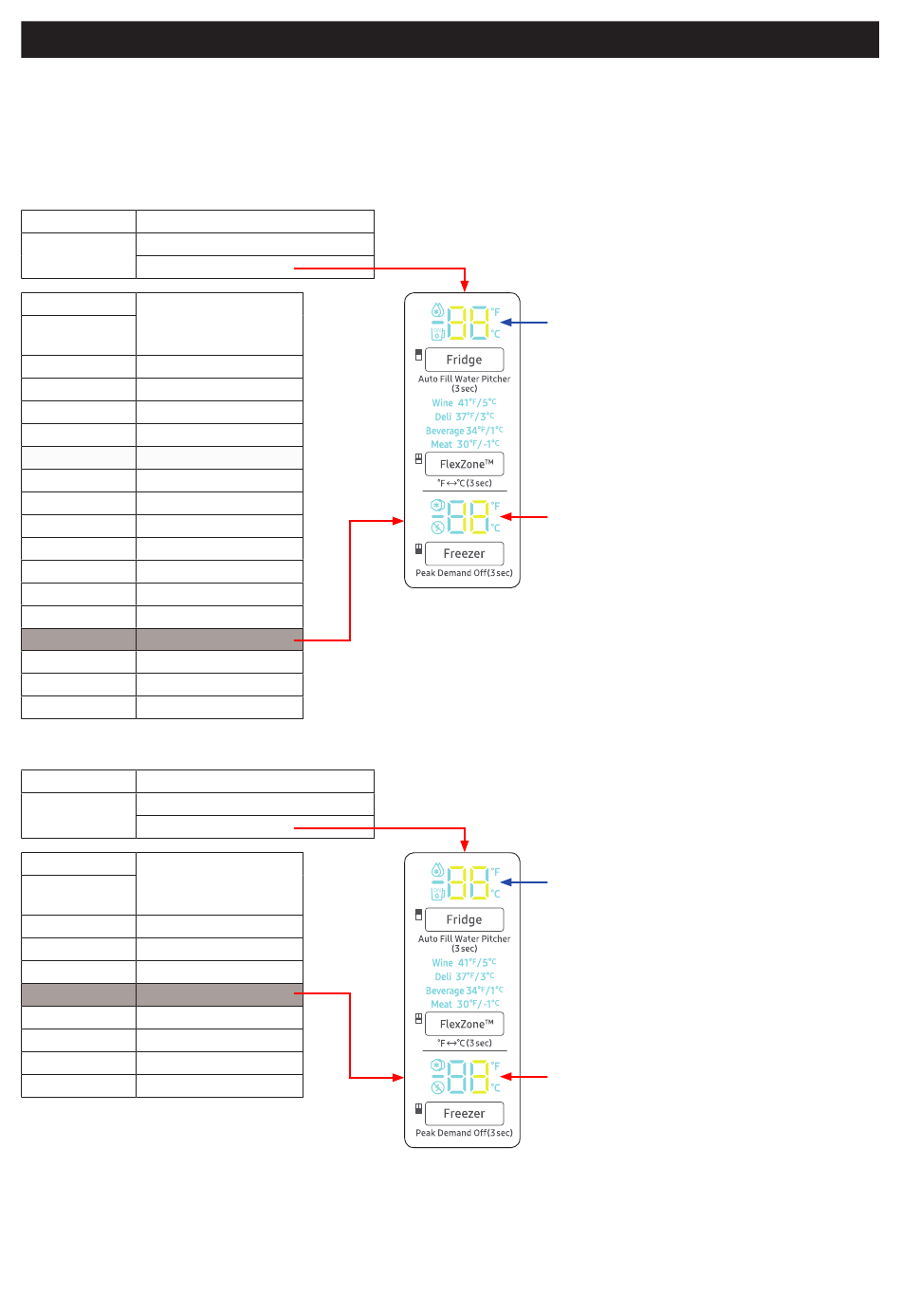

ex) If you want to change the ice room standard
temperature to +5℉(+2.5℃)
Reference Value
Code
ex) If you want to change the mid drawer room
temperature to -2℉ (-1.5℃)
