4-1-6. Option TABLE

1) Temperature changing table of freezer compartment
Set item
Reference
Value
Setting value
FZ compartment
compensation
Code
0 0℉(0.0℃)
1 -1℉ (-0.5℃)
2 -2℉ (-1.0℃)
3 -3℉ (-1.5℃)
4 -4℉ (-2.0℃)
5 -5℉ (-2.5℃)
6 -6℉ (-3.0℃)
7 -7℉ (-3.5℃)
8 +1℉ (+0.5℃)
9 +2℉ (+1.0℃)
10 +3℉ (+1.5℃)
11 +4℉ (+2.0℃)
12 +5℉ (+2.5℃)
13 +6℉ (+3.0℃)
14 +7℉ (+3.5℃)
15 +8℉ (+4.0℃)
2) Temperature changing table of fresh food compartment
Set item
Reference
Value
Setting value
FZ compartment
compensation
Code
0 0℉ (0.0℃)
1 -1℉ (-0.5℃)
2 -2℉ (-1.0℃)
3 -3℉ (-1.5℃)
4 -4℉ (-2.0℃)
5 -5℉ (-2.5℃)
6 -6℉ (-3.0℃)
7 -7℉ (-3.5℃)
8 +1℉ (+0.5℃)
9 +2℉ (+1.0℃)
10 +3℉ (+1.5℃)
11 +4℉ (+2.0℃)
12 +5℉ (+2.5℃)
13 +6℉ (+3.0℃)
14 +7℉ (+3.5℃)
15 +8℉ (+4.0℃)

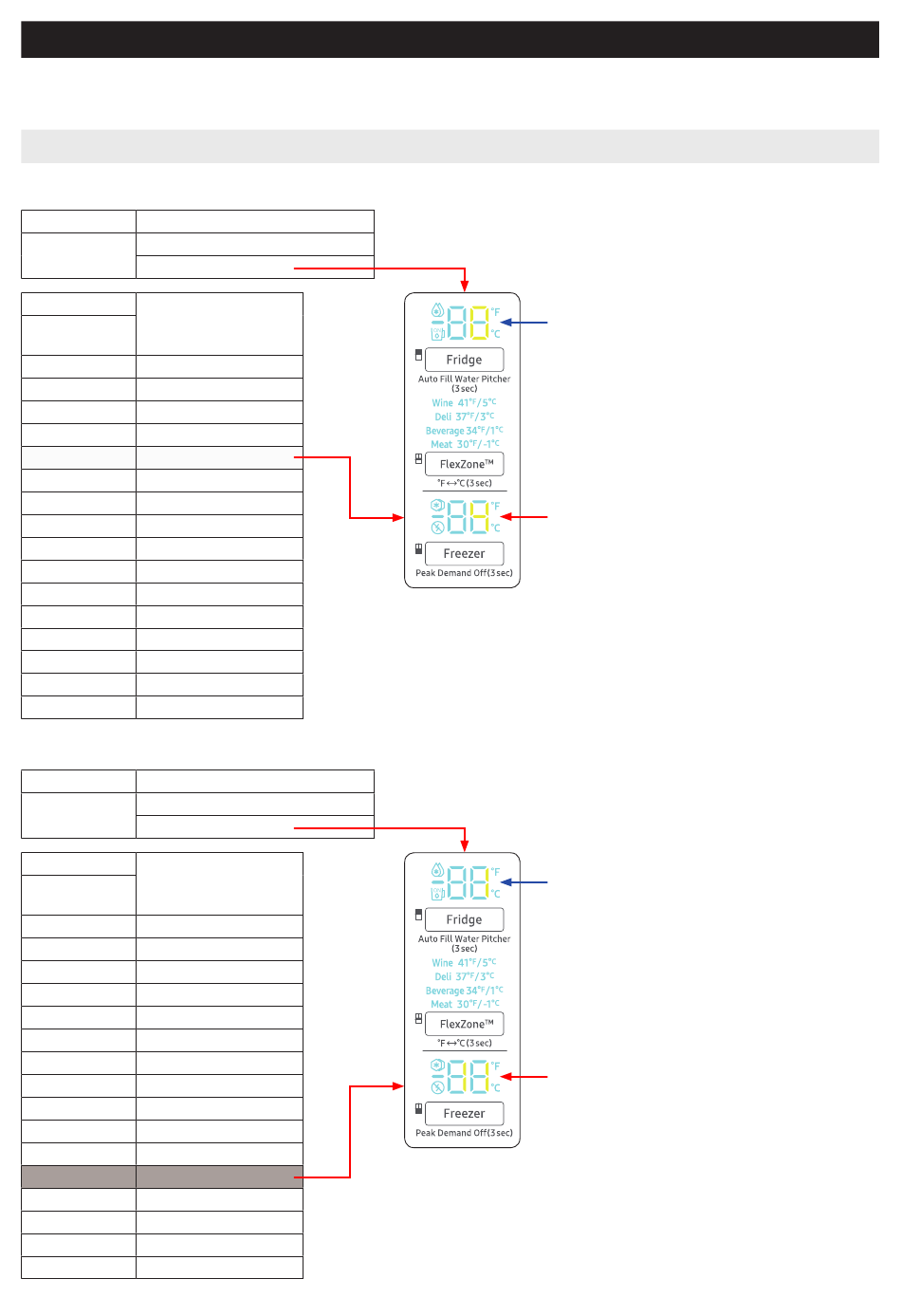

Freezer Temp Shift
Fridge Room 7-SEG
0
Temp.
fresh food Temp Shift
Fridge Room 7-SEG
1
Temp.
Reference Value
Code
ex) If you want to change the freezer standard
temperature to -4℉(-2℃)
Reference Value
Code
ex) If you want to change the fresh food compartment standard
temperature to 4℉(2°C)
