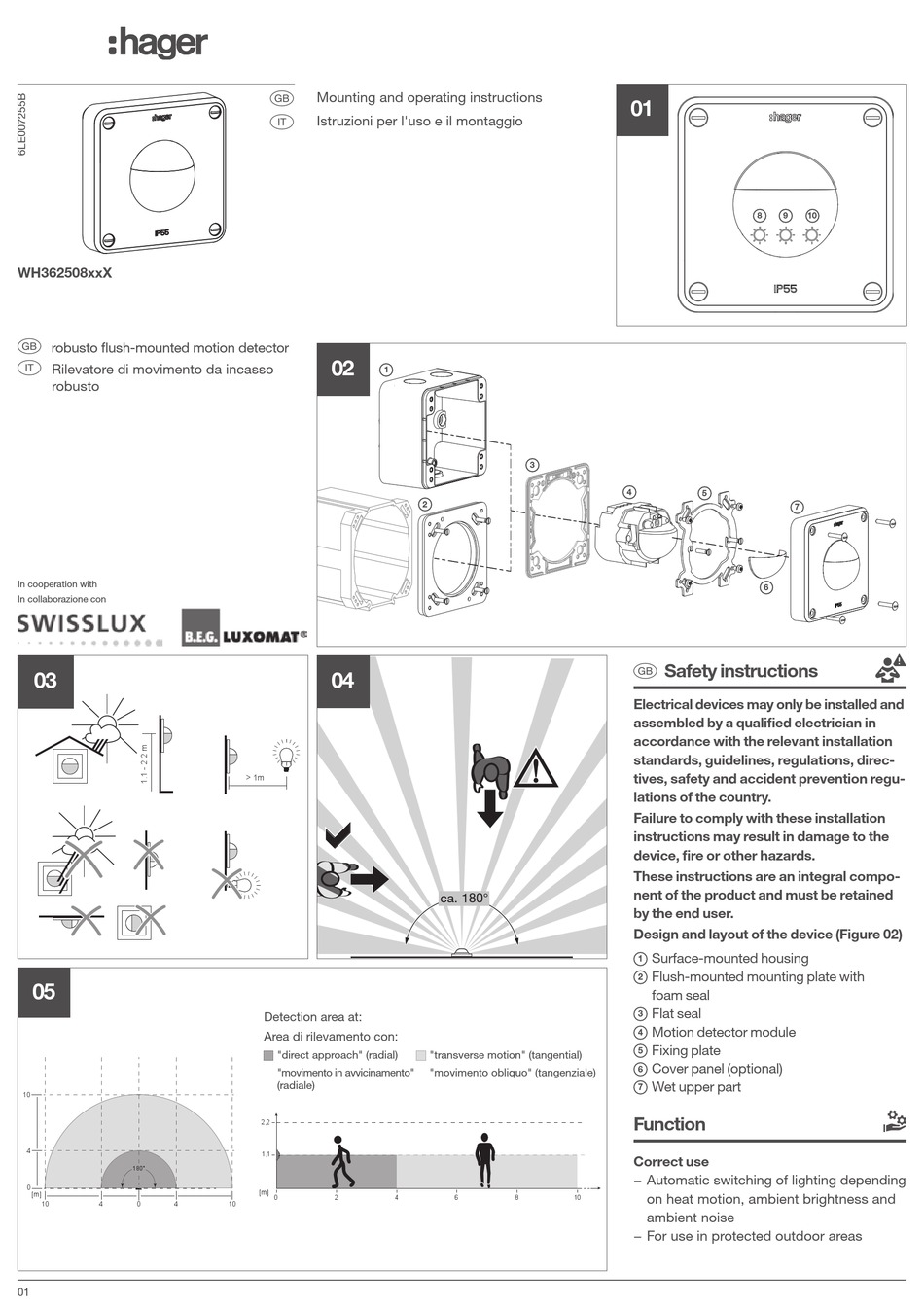

hager WH362508 X Series Mounting And Operating Instructions

WH362508xxX

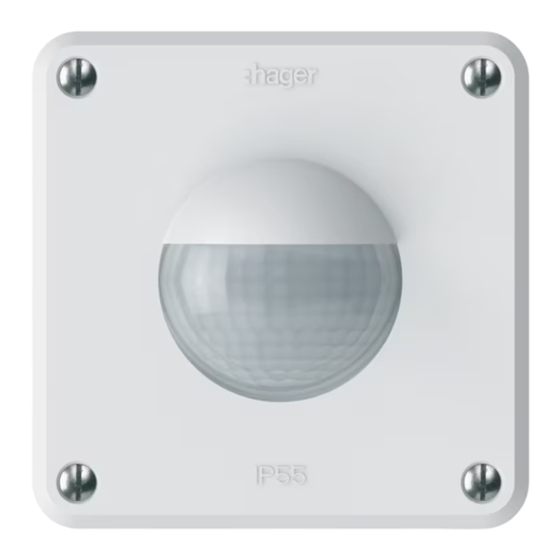

z robusto fl ush-mounted motion detector
y Rilevatore di movimento da incasso
robusto
In cooperation with
In collaborazione con
03
05
10
4
180°
0
[m]
10 4 0 4
01
Mounting and operating instructions
z
Istruzioni per l'uso e il montaggio
y
02
1
04
> 1m
 
Detection area at:
Area di rilevamento con:
"direct approach" (radial)
"movimento in avvicinamento"
(radiale)
2,2
1,1
[m]
0 2 4
10
3
2
ç ç
ca. 180°
"transverse motion" (tangential)
"movimento obliquo" (tangenziale)
6 8 10
01
8 9
4
5
7
6
Safety instructions
z
Electrical devices may only be installed and
assembled by a qualifi ed electrician in
accordance with the relevant installation
standards, guidelines, regulations, direc-
tives, safety and accident prevention regu-
lations of the country.
Failure to comply with these installation
instructions may result in damage to the
device, fi re or other hazards.
These instructions are an integral compo-
nent of the product and must be retained
by the end user.
Design and layout of the device (Figure 02)
Surface-mounted housing
1
Flush-mounted mounting plate with
2
foam seal
Flat seal
3
Motion detector module
4
Fixing plate
5
Cover panel (optional)
6
Wet upper part
7
Function
Correct use
− Automatic switching of lighting depending
on heat motion, ambient brightness and
ambient noise
− For use in protected outdoor areas
10
