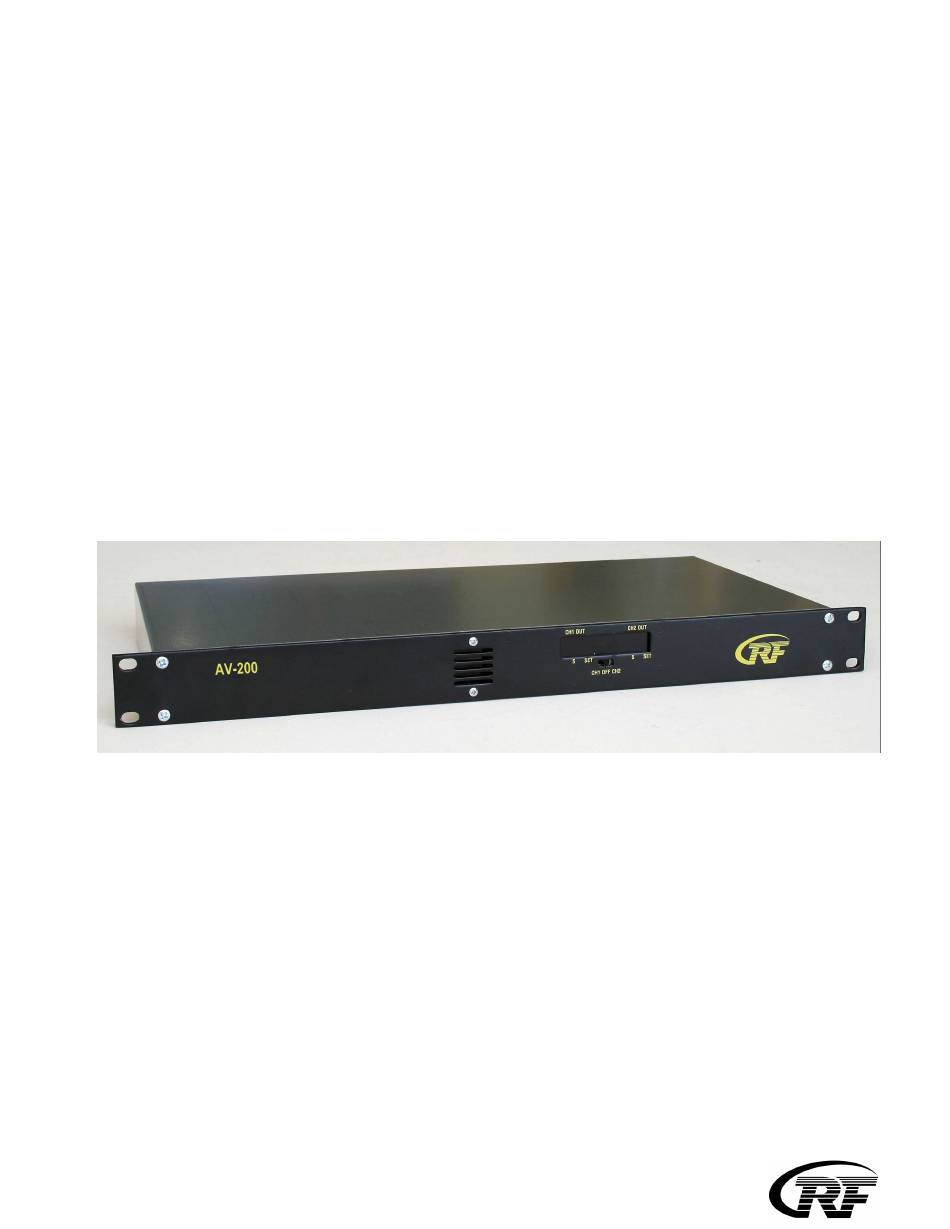

- Page 1 AV-200T Twin Digital Modulator AV to COFDM User Manual RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 2 1. Purpose of use AV-200T is a digital modulator designed for a processing two audio and two video signals into one COFDM (DVB-T) multiplex. 2. Installation The connections and indications are shown in Fig 1. 1. Cable-TV S channel indicator led 2.
- Page 3 The display is switched off after 3 minutes. Two signal led indicate that the unit is powered. The display lights up again by pressing any button of remote controller unit. The selected program info displayed and the channel opened. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 4 DVB-T Bandwidth 7 MHz or 8 MHz Output Level attenuator 0...20 dB (20 is maximum output level) Fine Tune of output frequency with 0,5 MHz steps RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 Audio ES Mode Mono, Dual, Stereo NOTE! The change of parameters are saved with “EXIT”. If “MENU” is selected, the change of parameters is not saved. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 6 NOTE! When programming is ready, check the status of bit rate. “Fill” beam shows how many percentage of the maximum stream is used. 3.4 Other functions In main menu you can select “Set Factory Defaults” . RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 7 Fore more information about where you can drop off your waste equipment for recycling, please contact your local city office, your house disposal service or the shop where you purchased the product. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
