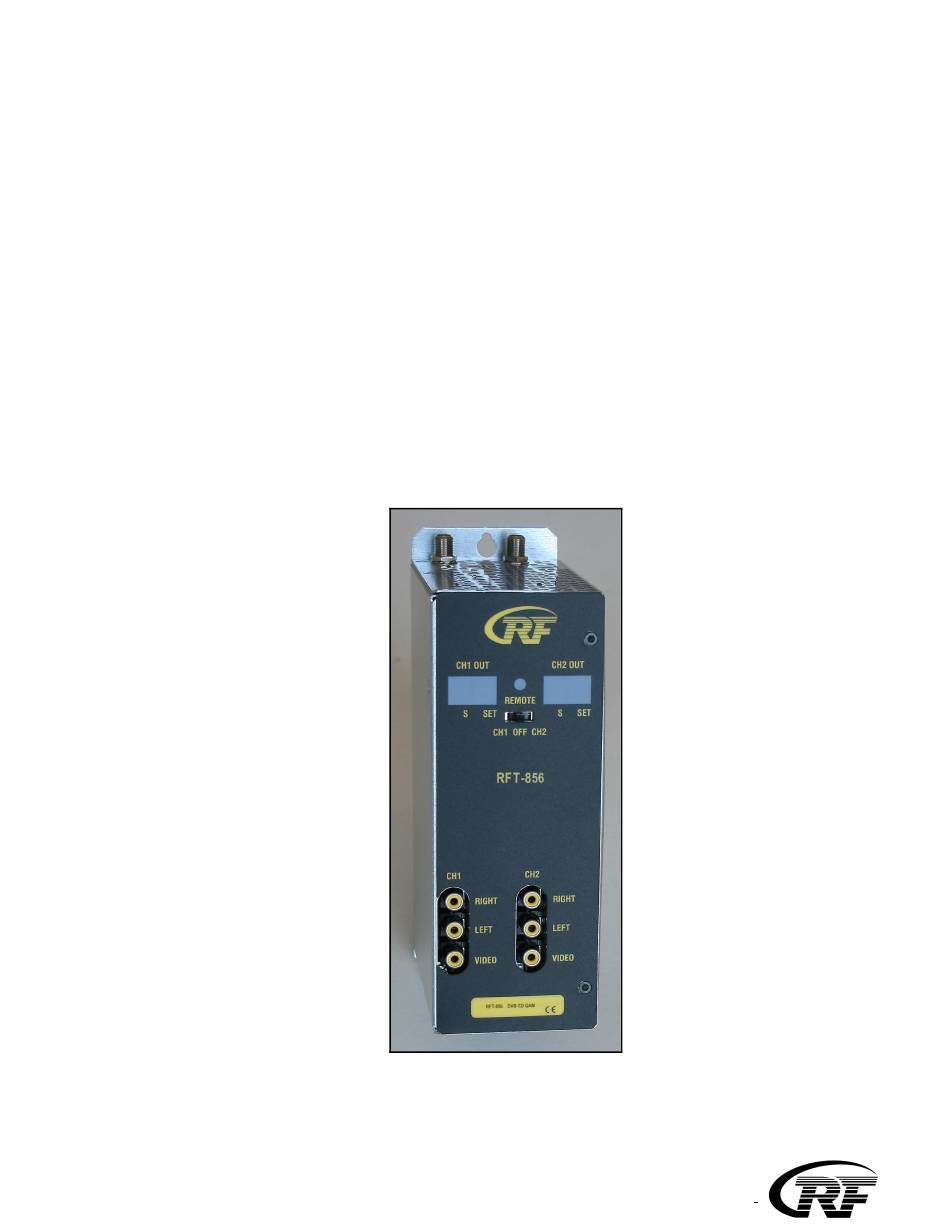

- Page 1 RFT-856HD 2 MUX DVB-T/T2/C --> QAM HD remux modulator User Manual RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
-
Page 2: Installation
1. Purpose of use RFT-856HD is designed for a processing two DVB-T2/-T mux programs into two DVB-C mux. 2. Installation The connections and indications are shown in Fig 1. 1. Control switch to program channel 1 (left) or channel 2 (right). The switch must be set to middle position when programming is ready 2. - Page 3 Please note that opening a channel will take longer time when a conditional access module is inserted. It is recommended to use updated smart card. If the channel list is empty, welcome screen will remain displayed. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 4 Select “Scan Multiplex” and write multiplex frequency. Then select “Scan”. You can adjust frequency using numeric keys, left and right keys or double arrow keys. When scanning is ready Channel List is shown. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 In main menu, select “SW Version Info” and press OK to display receiver and user interface version numbers plus unit serial number info. Menu Language = menu language. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 6 When programming is ready, the front panel switch must be slide to center position. This will prevent accidental changes to be made while controlling other units. The display, except two led, are switched off in 6 minutes after programming is finished. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 7 Data interface 2* USB 1 Input connectors F-female 75 ohm Output connectors F-male 75 ohm Power consumption 16VDC/1,2A Dimensions W*H*D 72mm*218mm*129mm Mounting RFT-800 system or stand alone RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 8 Fore more information about where you can drop off your waste equipment for recycling, please contact your local city office, your house disposal service or the shop where you purchased the product. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
