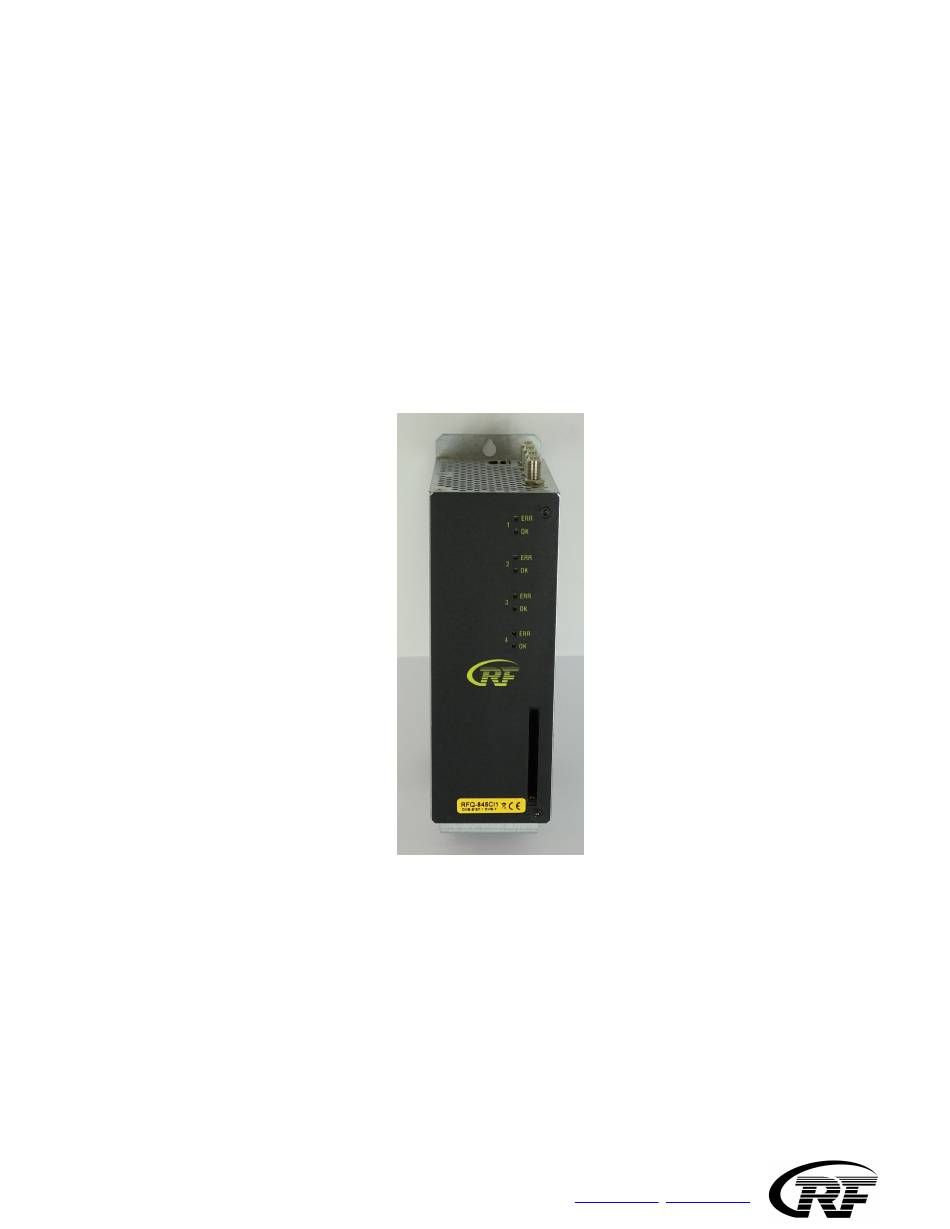

- Page 1 RFQ-845CI1 Quadtro DVB-T/T2/C/S/S2/S2X to COFDM HD remux modulator User Manual RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 2 14. RF OUTPUT 15. CA-module slot RFQ-845CI1 is mounted directly on the wall or RFB-804 base. Do not cover the air passage holes. Signal from LNB or antenna is fed to F-female connectors A1,2,3 and 4. Maximum total current of LNB connector is 250 mA.
- Page 3 3. Write to address field 192.168.0.145 and then enter. 4. Unit asks the password. The factory default password is Ramsen8262 5. After right password is fed following screen displays. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 4 To set tuner parameters go to INITIALIZATION. For satellite signal set all parameters, for terrestrial/cable signal only frequency is needed. Set the correct parameters for tuner 1. and select SCAN. Repeat same for tuners 2, 3 and 4. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 Select the programs to output by pressing the symbol of wanted modulator 1 – 4. Then the symbol is highlighted. Then set the wanted LCN and audio language. LCN setting works only in the set-top-boxes which support LCN function. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 6 You can set also TS ID and NETWORK ID. Region selection may be needed for some set-top-boxes for LCN setting to work properly. When all parameters are selected press SAVE CHANGES. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 7 Here you can select output channel, constellation, FEC coderate, bandwidth, guard interval, transmission mode and output level. If necessary you can also fine tune output frequency. You can see also fullness degree of each modulator. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 8 Fore more information about where you can drop off your waste equipment for recycling, please contact your local city office, your house disposal service or the shop where you purchased the product. RF-Tuote Oy,Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
