KRUG+PRIESTER IDEAL 7260 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Guillotines
EN
Operating Instructions
IDEAL 7260
IDEAL 7260 EN 9700241 9700181
08-2022 20230616zm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDEAL 7260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KRUG+PRIESTER IDEAL 7260

Summary of Contents for KRUG+PRIESTER IDEAL 7260

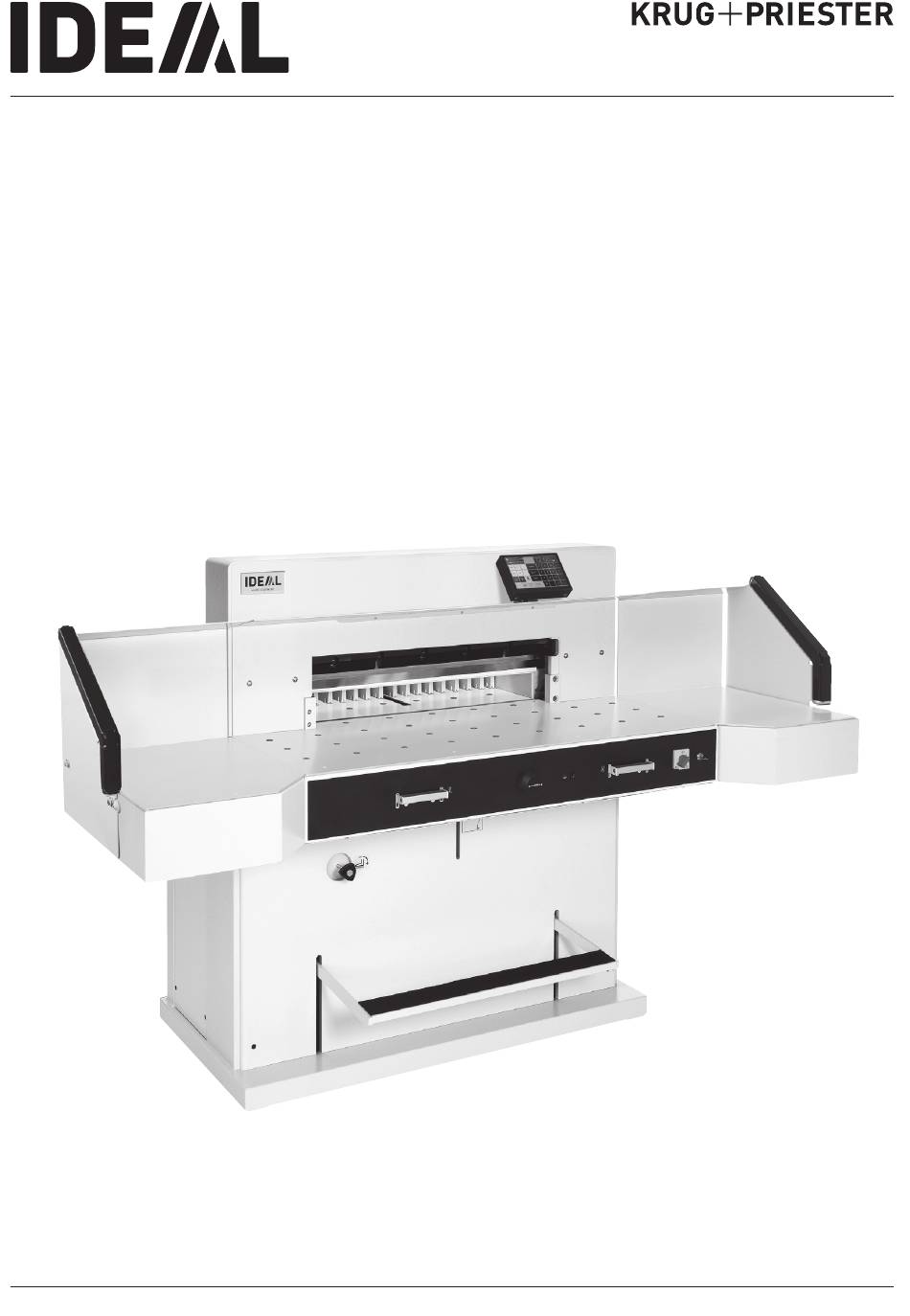

  • Page 1 Guillotines Operating Instructions IDEAL 7260 IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 2: Table Of Contents

    Table of Contents Safety precautions Intended use Installation Startup Operation Operating elements Blade and cutting stick replacement Maintenance and cleaning Annual inspection / Safety test Possible malfunctions Accessories Technical data EC-declaration of conformity IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 3: Safety Precautions

    Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 27 and 29). Danger! Risk of injury! Do not cut hard materials or materials which may splinter! IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 4: Intended Use

    Do not use any flammable cleaning agents. Intended use The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 5 Safety precautions Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is switched off! IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 6 • Panels, tightly screwed (A). • Safety beam guard (B). The cutting action, which is dangerous to the operator, is protected by a two-handed control system (C) and safety beam guard (D). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 7 It is also possible to make alterations in the plug by exchanging "L1" and "L2". Danger! Incorrect exchanging of the connections will endanger the operator. This work must be carried out by an electrician. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 8 Safety precautions Ensure free access to mains! When not in use for a longer period switch off. (Main switch to "0"). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 9: Installation

    The machine must not be put into operation without the safety light beam. Assemble the side tables. Remove the light beam. (1. - 2.) Screw on the side tables and light beam (1. - 6.). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 10: Startup

    Plug into socket. Display (C) is pivotable. By loosing the allen head screw (D), (allen wrench is in the tool box) the display can be pivoted within the elongated hole. Tighten allen screw again. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 11 If the test rod (E, tool kit) is held into the protective field (D), an activated work cycle must be stopped immediately. We recommend you keep a record of your test results. STOP IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 12 The machine is now ready for use. The measurement is set as follows: • manually with the electric hand-wheel • by programming the cutting dimensions (A). Dimension is shown on the display in inches or cm (B). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 13: Operation

    Position the paper on the backgauge (A) and side lays left or right (B). To move paper stacks, please use the paper knock-up block (C) provided. (Run backgauge to the front for turning the paper stack). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 14 It is easier to position large stacks of paper when the airtable switched on. Setting clamping pressure: The clamp pressure can be adjusted using the adjustment knob . The clamping pressure can be read on the light panel IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 15 The safety area (B) must be free. To interrupt or stop cutting: To interrupt or stop cutting, release both actuators (A) of the two-hand control. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 16: Operating Elements

    Memory 1: A2, A3, A4, A5, Memory 2: A6, A7, B3, B4 Memory 3: Memory 4: and in inch Memory 1: 4¼“, 5 ½“, 7“, 8 ½“ Memory 2: 11“, 12“, 14“, 17“ Memory 3: Memory 4: IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 17 ) has 3 switching steps Press 1 x  brightness 3 Press 2 x  brightness 2 Press 3 x  brightness 1 Light OFF  Optical cutting line indicator  (ON/OFF) E F G IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 18 • The further the hand-wheel is turned to the right, the quicker the backgauge moves. If the hand-wheel is turned to the left the backgauge will return quicker. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 19 Exiting program-mode • Press multiple cut (yellow). Multiple cut sign and value are deleted. Calculator function • Calculate the desired measurement, e.g. 40 - 2 =  the backgauge advances immediately to 38. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 20 • Escape the program mode press MANUAL Cancel a program • Press PROG EDIT • Scroll with PROG until "Delete program no." appears • Enter Program number • Press Enter • Press Enter IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 21 • Store the measurement with enter • Calculate the desired measurement e.g. 40 - 2 =  the calculated measurement 38 flashes . • Pressing the Enter-key again, the calculated measurement is saved in the corresponding step. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 22 • Select a program, confirm with Enter • Scroll with STEP until "Load step no." appears • Enter step position e.g. 03 • Confirm with Enter • Enter a new measurement, store the measurement with IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 23 • Store the measurement with Enter • Press the multiple cut symbol • Enter the number of cuts with the + button (max. 15 cuts) followed by the multiple cut size (cutting width). • Store with Enter IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 24: Blade And Cutting Stick Replacement

    Krug & Priester, D-72336 Balingen. Danger! Risk of injury! The blade is extremely sharp. Do not extract or transport the blade without protection. Changing the blade may only be performed by trained staff. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 25 (B). (Spanner found in tool set (C)). Remove spanner Danger! Risk of injury Lower the blade by pressing both cutting buttons (1.). Keep one button pressed and turn off the main switch (2.). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 26 (A) (in the tool set). The slot must correspond to position "0" (B). Remove the special wrench and turn on the main switch until the blade returns to the home position. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 27 Loosen the grips (2.) of the blade changing tool (A) lightly and allow the blade to be taken downwards out of the machine (3.). Place the blade into the blade carrier (B) and screw it into place (4). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 28 (A) 1/12 downwards using a spanner. • If the last sheet is still not completely cut repeat this process until the last sheet is cut along the entire length. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 29 Place the blade to be exchanged with the blade changing tool (A) mounted (1.), into the blade carrier and push it up to the top and screw it into place with the grips (2.). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 30 Remove the blade changing tool (A) (2.). Lightly tighten the remaining blade screws (3.). Remove all tools and distribute paper along the entire cutting length (1.). Turn main switch to position "I" (2.). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 31 With the special wrench (A) the 3 eccentrics should be screwed down until the paper is cut along the entire length of the blade (3.) (The blade must remain parallel, not too deep into cutting stick). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 32 Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the blade depth adjustment (A) 1/12 downwards until all the paper is completely cut. Do not set too low as blade will become blunt sooner. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 33: Maintenance And Cleaning

    Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front (use special grease for cutting machines). Grease cartridge • No. 9800 933 Grease gun • No. 9004 683 IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 34 (D). If necessary inform your service personnel. • Mount the machine. With more than 5 hours of use per day, the service must be performed more often. = Greasing points on the machine. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 35: Annual Inspection / Safety Test

    The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 36: Possible Malfunctions

    Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Check the units fuse and the on-site circuit breaker! Release a cut see page 15. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 37 Push the button again. • Measurement below 9 cm. The false clamp plate must not be mounted. Remove the false clamp plate and store it in the provided holder (see page 14). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 38 Eliminate the cause, and push the safety button (A). • Backgauge blocked Safety button (B) ejects. Eliminate the cause, and push the safety button (B). Safety button for: A = Blade drive B = Backgauge drive IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 39 (B) (see page 32). Poor cutting quality or blade stays in the paper stack. • Change the blade (C) (see pages 24 - 32). IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 40 • Is the machine plugged in? (A) • Is the main switch on position "I"? (B) • Push in the green safety button! (C) • Check the units fuse and the on-site circuit breaker! IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 41 Contact your dealer. Trouble shooting-light beam Cut cannot be activated: • Remove all items obstructing the safety area (A) • (B) Green o.k. / ready for operation light beam is interrupted or error IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 42 Possible malfunctions Did none of the specified solutions help you with your problem? Contact: Service  • www.krug-priester.com • service@krug-priester.com Service IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 43: Accessories

    • No. 9800 933 Brush • No. 9001 828 Paper knock-up block • No. 9000 521 Grease gun • No. 9004 683 Side tables left and right • No. 9000 551 Included in delivery IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 44: Technical Data

    • Resolution 14 mm/minimum distance: 250 mm • Resolution 24 mm/minimum distance: 320 mm • Resolution 39 mm/minimum distance: 440 mm Ambient operating temperature 10 °C - 60 °C Air humidity (not condensating) 15 % - 95 % IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 45 The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 46 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2014/30/EG. Sound level information: The sound level is 72 db (A) as defined by EN 13023. Subject to alteration without notice. IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...

  • Page 47: Ec-Declaration Of Conformity

    BS EN ISO 13857; BS EN ISO 11204; BS EN 13023; BS EN ISO 13849-1 14.02.2022 Authorized representative for technical documentation Date Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) - Managing Director - IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
  • Page 48 Made in Germany Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) www.krug-priester.com IDEAL 7260 EN 9700241 9700181 08-2022 20230616zm...
