Summary of Contents for Blanco BFID3458X

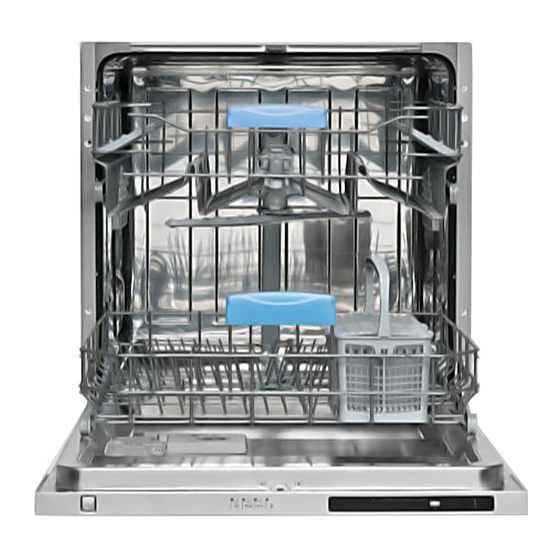

- Page 1 Dishwasher Instruction Instruction Manual Instruction Instruction Manual Manual Manual BFID3458X...
-
Page 2: Table Of Contents
CONTENTS Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… • Installing the machine ………………………………………………………….. Positioning the machine …………………………………………………….. •... - Page 3 Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Getting familiar with your machine …………………………………………… 25 Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… • Changing a programme ……………………………………………………...
- Page 4 Upper basket with racks Upper spray arm Lower basket Lower spray arm Filters Rating plate Control Panel Detergent and rinse-aid dispenser Upper basket track latch Upper Cutlery Basket Ceiling Spray Arm: It provides Turbo Drying Unit: This system provides better washing for the dishes at better drying performance for your dishes.
-
Page 5: Technical Specifications
Technical specifications Capacity 1 place settings Height 820 mm - 870 mm Width 598 mm Depth 550 mm Net Weight 38 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power 30 W Water supply pressure 0.03 MPa... -
Page 6: Safety Information And Recommendations
SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling. - Page 7 Blanco will not be responsible for any damage that might occur in your machine otherwise. The waste water from this appliance is not drinkable.
- Page 8 • Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Blanco will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
-
Page 9: Recommendations
opened at the end of the program. Do not force to close the door to avoid damaging the auto door mechanism. The door must be open during 30 minutes to get effective drying.( in models with auto door opening system ) Warning: Do not stand in front of the door after the signal sounds for the auto-open. -
Page 10: Items Not Suitable For Dishwashing
• Use the pre-wash programme only whenever necessary. • Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down. • You are recommended not to load into your machine any dishes different or more than indicated. - Page 11 Do not put your machine in any location where there is the probability for the room temperature to fall below 0°C. Before positioning, take the machine out of its packaging by following the warnings located on the package. Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.
-
Page 12: Water Inlet Hose
Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection. -
Page 13: Water Outlet Hose
Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. -
Page 14: Electrical Connection
Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur. -
Page 15: Preparing The Machine For Use
PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 16: Filling With Rinse Aid And Making The Setting
Observe the instructions on packagings when using such products. • If such detergents are in the form of tablets, never put them into the interior section or the • cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser. -
Page 17: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. - Page 18 Top basket height adjustment while it is full Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
- Page 19 Upper Cutlery Basket The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items. Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.
- Page 20 Lower Basket Folding Racks Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.
-
Page 21: Alternative Basket Loads
Alternative basket loads Lower Basket Top basket... - Page 22 Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
-
Page 23: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme items Extra Hygiene Express Rinse Programme No Auto Auto Auto Hygiene Quick (Prewash+Hygiene Daily Delicate 55’60°C ( reference ) 60°C) Programme names 60-70°C 50-60°C (P2) 30-50°C(P3) 60°C (P4) 60°C ( P5) 50°C ( P6) 40°C ( P7) ( P8 ) 70°C and temperatures... -
Page 24: Getting Familiar With Your Machine
GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button 4.) Delay Timer Button You can delay the start time of a selected program for 1-2 ….19 When the Power On/Off button is pressed, end of program hours by pressing the delay timer button of your machine. When indicator starts lighting. - Page 25 If you have dishes only in the lower basket, press the Energy save option activates door opening system at the end key ½ and select the position in which the lower lamp of the program. Auto door opening system provides required is illuminated.
-
Page 26: Switching On The Machine And Selecting A Programme
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Machine is energized when the On/Off button is pressed , two dashes appear in the program display and the end of program indicator turns on. When you select a program with the program selection button,the program you select ( P1,P2,etc )appears on the program display and the end of program... -
Page 27: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Open the door of your machine. The last selected program will appear on the screen. Keep the program selection button pressed for Discharge process starts after closing the 3 seconds. -
Page 28: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 29: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. - Page 31 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.
-
Page 32: Practical And Useful Information
If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •... - Page 33 Our Warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship. The product will be repaired or replaced at the option of Blanco, and all costs of installation, removal, cartage, freight travelling expenses and insurance are to be paid by the customer.
- Page 34 52XXXXXX R23...
