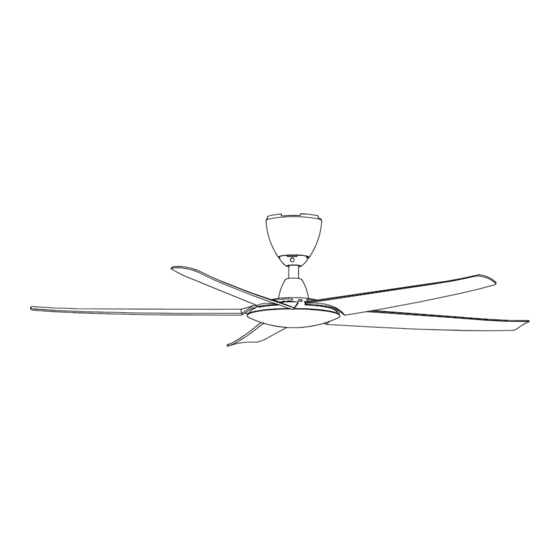

  • Page 1 Instruction Manual Ceiling Fan EX9-5B/56 EX9-5B/40 Version: 2023 V1...

  • Page 2: Table Of Contents

    Table of Contents Item Page No. 1. Safety Precautions ....................1 - 2 2. Parts & Accessories ....................3. Installation Instruction .................... 4 - 8 4. Transmitter Learning Process ................9 5. Transmitter Assembly & Operation ................ 10 5. Power Supply Connection ..................10 - 11 6.

  • Page 3: Safety Precautions

    Safety Precaution Parts & Accessories STOP using the ceiling fan when any abnormality or failure occurs. If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons. CAUTION Please take note of the following important points when installing.

  • Page 4: Installation Instruction

    Installation Instruction Installation Instruction IMPORTANT : SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT BREAKER Step 3 - Remove the Bolt, Clevis Pin, Nut, Washer and Rubber Pulley from the Downrod. FUSE BOX. Place the Rubber Pulley onto the ceiling hook and fix back the Bolt, Clevis Pin, Nut and Washer.
  • Page 5 Installation Instruction Installation Instruction Step 7 - Install the Blades on Motor with Blade Screw and Washer. Step 5 - Tie the Safety Wire across the hook as shown. IMPORTANT : Assemble the Fan Blades only after the ceiling fan is mounted on the hook.

  • Page 6: Transmitter Learning Process

    Transmitter Assembly & Operation Transmitter Learning Process IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO REGULATOR OR DIMMER SWITCH. REGULATOR OR DIMMER SWITCH. The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more Function of Transmitter fans using 1 transmitter, the below steps are required.

  • Page 7: Power Supply Connection

    Power Supply Connection Circuit Diagram Power Double Pole Supply Switch Motor Single Pole Switch MAIN PCB Neutral (Blue) Blue Live (Brown) Brown Earth (Green/Yellow) Green/Yellow Power Supply IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO 220-240V~ 50Hz REGULATOR OR DIMMER SWITCH.

  • Page 8: Maintenance

    Cleaning Cleaning your fan periodically will prolong its new appearance. Basic cleaning procedures are as follows : EX9-5B/56 1420mm (4’ 8”) EX9-5B/40 1015mm (3’ 4”) 1. Use only water and mild soap. Do not use solvents, corrosive or acidic solution.
