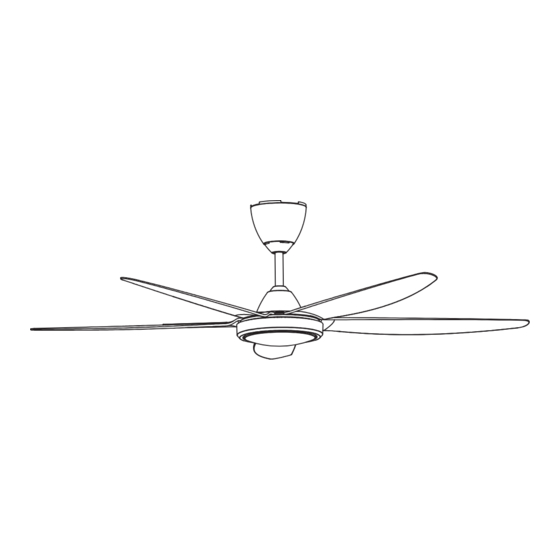

Instruction
Manual
Ceiling Fan
M1-5B/56
M1-5B/40
Version: 2022 V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1-5B/56 and is the answer not in the manual?

Questions and answers

Related Manuals for Cosa M1-5B/56

Summary of Contents for Cosa M1-5B/56

  • Page 1 Instruction Manual Ceiling Fan M1-5B/56 M1-5B/40 Version: 2022 V1...

  • Page 2: Table Of Contents

    Table of Contents Item Page No. 1. Safety Precautions ....................1 - 2 2. Parts & Accessories ....................3. Installation Instruction .................... 4 - 8 4. Transmitter Learning Process ................9 5. Transmitter Assembly & Operation ................ 10 5. Power Supply Connection ..................10 - 11 6.

  • Page 3: Safety Precautions

    Safety Precaution Parts & Accessories STOP using the ceiling fan when any abnormality or failure occurs. If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons. CAUTION Please take note of the following important points when installing.

  • Page 4: Installation Instruction

    Installation Instruction Installation Instruction IMPORTANT : SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT BREAKER Step 3 - Remove the Bolt, Clevis Pin, Nut, Washer and Rubber Pulley from the Downrod. FUSE BOX. Place the Rubber Pulley onto the ceiling hook and fix back the Bolt, Clevis Pin, Nut and Washer.
  • Page 5 Installation Instruction Installation Instruction Step 5 - Tie the Safety Wire across the hook as shown. Step 7 - Connect the Connectors from Fan and Receiver. Connect the wires from the receiver to House’s Supply Wire. Connect Earth Wire to House Supply Earth Terminal. House Supply Wires Brown (L) Brown (L)

  • Page 6: Transmitter Learning Process

    Transmitter Learning Process Installation Instruction IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO Below shows a complete installation diagram. REGULATOR OR DIMMER SWITCH. The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more fans using 1 transmitter, the below steps are required.

  • Page 7: Transmitter Assembly & Operation

    Transmitter Assembly & Operation Power Supply Connection IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO REGULATOR OR DIMMER SWITCH. REGULATOR OR DIMMER SWITCH. Function of Transmitter 1 to 6 - Fan speed control OFF - On/Off the fan 1H - Fan stops after 1hr...

  • Page 8: Maintenance

    : 1. Use only water and mild soap. Do not use solvents, corrosive or acidic solution. M1-5B/56 1420mm (4’ 8”) 2. Damp the cloth lightly. Use only soft or lint-free cloth to clean the fan. Rough fabric will M1-5B/40 1015mm (3’...
