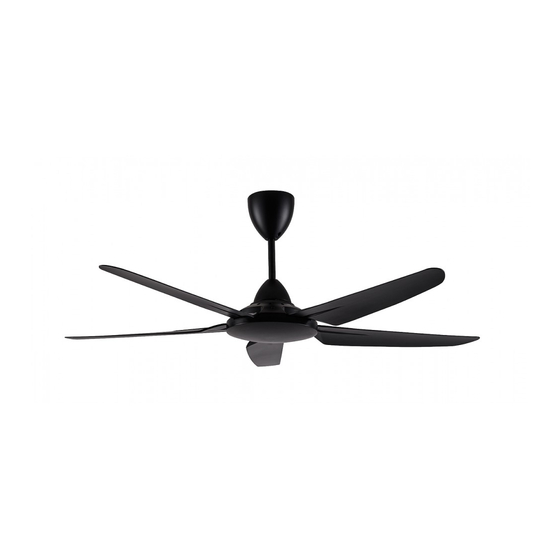

- Page 1 Instruction Manual Ceiling Fan Xpress-5B/54 Xpress-5B/40 Version: 2019 V1...
- Page 2 1 - 2 4 - 6 8 - 9 9 - 10 11 - 12 Warning Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. All field wiring must be installed in accordance with the national wiring regulation.
- Page 3 DO NOT pull out the power cord when the power is ON. This may cause serious electrical shocks which may result in fire hazards. STOP using the ceiling fan when any abnormality or failure occurs. If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
- Page 4 Green/ Yellow (E) Washer & Nut Clevis Pin Clamp the downrod with the 2 screws on the coupling to prevent shaking during operation.
- Page 5 Step 7 - Connect the Connectors from Fan and Receiver. Connect the wires from the receiver to House’s Supply Wire. House Supply Wires Brown (L) Green/Yellow (E) Blue (N) Brown (L) Blue (N) To Motor From Motor Brown (L) Brown (L) Blue (N) Blue (N) Green/Yellow (E)
- Page 6 Transmitter Learning Process The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more fans using 1 transmitter, the below steps are required. Function of Transmitter DO NOT PRESS ANY OTHER BUTTON DURING THIS PROCESS 1 - Speed 1 Step 1 2 - Speed 2...
- Page 7 Model Xpress-5B/54 Xpress-5B/40 No. of Blades Fan Width 54” 40” Thermal Motor RPM 110 - 225 110 - 230 Fuse Motor (Inside Voltage 220-240V~ 50Hz 220-240V~ 50Hz Motor Capacitor Motor) Wattage 20W - 80W 20W - 80W To Fan L...
- Page 8 Xpress-5B/54 1372mm (4’ 6”) Xpress-5B/40 1060mm (3’ 4”) If you need any technical assistance or faulty report, please contact our customer service centre at : Alpha Home Appliances Sdn. Bhd. (390258-H) Head Office : 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, Section 32, 40460 Shah Alam, Selangor.
