Summary of Contents for Heritage Bathrooms SGRC02

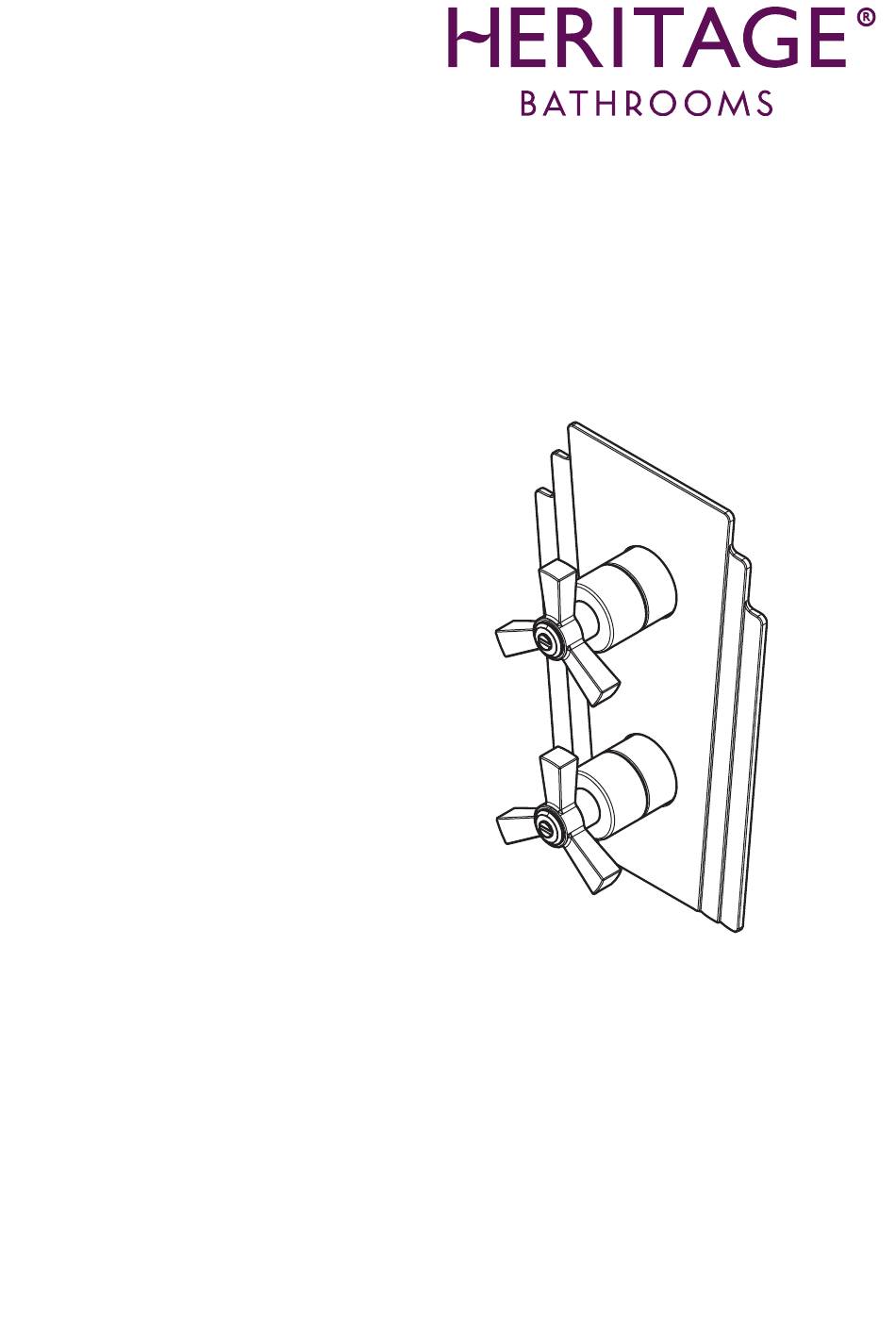

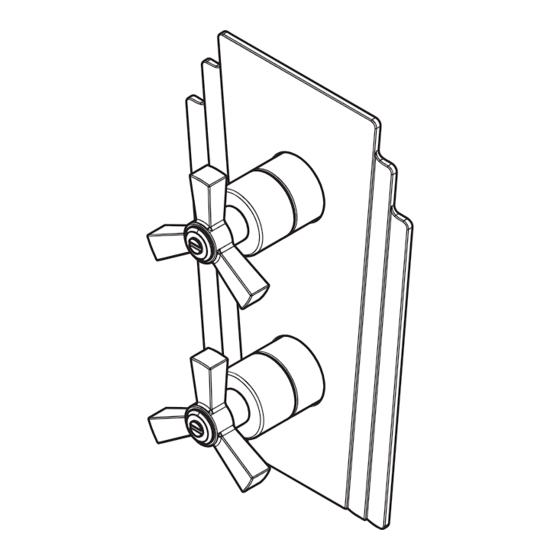

- Page 1 Installation Instructions and User Guide Thermostatic Recessed Dual Control Shower Valve with Integral Diverter Models covered: SGRC02 Please keep this booklet for future reference. Installer, when you have read these in- structions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Heritage, the UK’s market leader for classic bathroom products. To ensure this product works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need. If you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Heritage are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. BS7600 recommends the temperature of stored water should never exceed 65ºC. A stored water temperature of 60ºC is considered sufficient to meet all normal requirements and will minimise the build up of lime scale in hard water areas. -
Page 5: Product Features
Product Features 1. Two outlet diverter This outlet allows the user to divert the flow of water from one water outlet to another. E.g. Fixed rigid riser or an adjustable riser. 2. Temperature control Adjustable temperature control. Turn the handle clockwise for a cooler temperature. -
Page 6: Specifications
Specifications Inlet connections: 15mm compression with 150mm between centres. Minimum working pressure: 0.2 bar Note: This shower has been designed to deliver a high flow of water on low pressure systems, however depending on the installation, type of system and shower accessories used, a higher pressure maybe required to optimise the showering experence. -
Page 7: Pack Contents
Pack Contents 1. Concealing plate x1 2. Valve body x1 3. Handles x2 4. Shrouds x2 5. Shroud extention screws x1 6. Valve body fixings x2/2 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10. Wall outlet x1 Need help? Give us a call on 0844 701 8503 and speak to one of our trained advisers. -
Page 8: Prior To Installation
Prior to Installation Flow Regulators This shower valve is supplied with a 5 and 7 litre per minute flow regulator loose in the box which must be fitted if the shower valve Filter is installed in conjunction with an instantane- Washer ous water heater / combination boiler. -
Page 9: Installation
Installation - Shower Valve This shower valve is designed for new installations where there is no shower valve already installed. Once the shower valve is secured in the wall cavity the wall should be finished and tiled. Access is required from the Rear rear for future servicing of the shower valve Access... - Page 10 Installation - Shower Valve 4. Finish wall surface Plasterboard and tile the cavity wall ensuring there is a gap between the tiles and the shower valve 5. Fit concealing plate and handles Run a bead of waterproof silicon sealant around the inner edge of the concealing plate. Slide the concealing plate onto the shower valve and apply firm pressure to ensure to silicon sealant spreads.
-
Page 11: Wall Outlet
Installation - Wall Outlet Fitting the Wall Outlet There are two methods of fixing the wall Backnut outlet depending on the type of wall: a: With rear access once wall finished Fit the rubber washer to the back of the wall Rubber outlet, place the assembly through a seal... -
Page 12: Operating The Shower
Operating the Shower 1. Two outlet diverter This outlet allows the user to divert the flow of water from one product to another. Turn the handle one way or the other to turn the flow of water on to your chosen product. To turn the flow of water off turn the handle back to the centre. -
Page 13: Maintenance
Maintenance General Cleaning 2. Unscrew the cartridge anti-clockwise and Your fitting has a high quality finish and should remove from the valve body. be treated with care to preserve the visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way to clean your product is to wipe with a soft damp cloth. -
Page 14: Adjusting The Temperature
Adjusting the Temperature Adjusting the Temperature temperature of the water with a The shower valve has been factory set to thermometer. If the temperature is not 42ºC with equal (balanced) hot and cold correct, re-calibrate the shower valve: water supply pressures, with the hot water 1. -
Page 15: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Check showerhead, hose and Clean as necessary, refer to flow rate and filters for any blockage. Maintenance section (page 13). / or varying Partially closed stop or service Open stop or service valve. temperatures. - Page 16 Troubleshooting Symptom Cause Remedy Maximum water Maximum water temperature set Reset maximum water temperature. temperature too incorrectly. Refer to ‘Maximum Temperature hot or cold. setting’ in Maintenance section (page 13) and ‘Adjusting the Temperature’ (page 14) Outlet water Inlet filter is partially blocked. Check inlet filters for any blockages temperature too and clean as necessary.
-
Page 17: Notes
Notes please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 8503 and speak to one of our trained advisers. -
Page 18: Guarantee
Guarantee When you buy a Heritage product, you • Repair under this guarantee does not can be confident that it not only features a extend the original expiry date. The beautiful design, distinctive, classic design, but guarantee on any replacement parts or that it has also been made to the very highest product ends at the original expiry date. - Page 19 Guarantee • Need help? Expert plumbing engineers If this product does not function correctly If we can’t solve the problem over the ‘phone when first used, contact Heritage Custom- or with a spare part, then we’ll send out one er Service on 0844 701 8503 where our of our engineers to take a look.
- Page 20 Birch Coppice Business Park Dordon Tamworth Staffordshire B78 1SG Web: www.heritagebathrooms.com Email: technical@heritagebathrooms.com Tel: 0844 7018503 Part Number: FI: DIV Rear Access Issue: D1...
