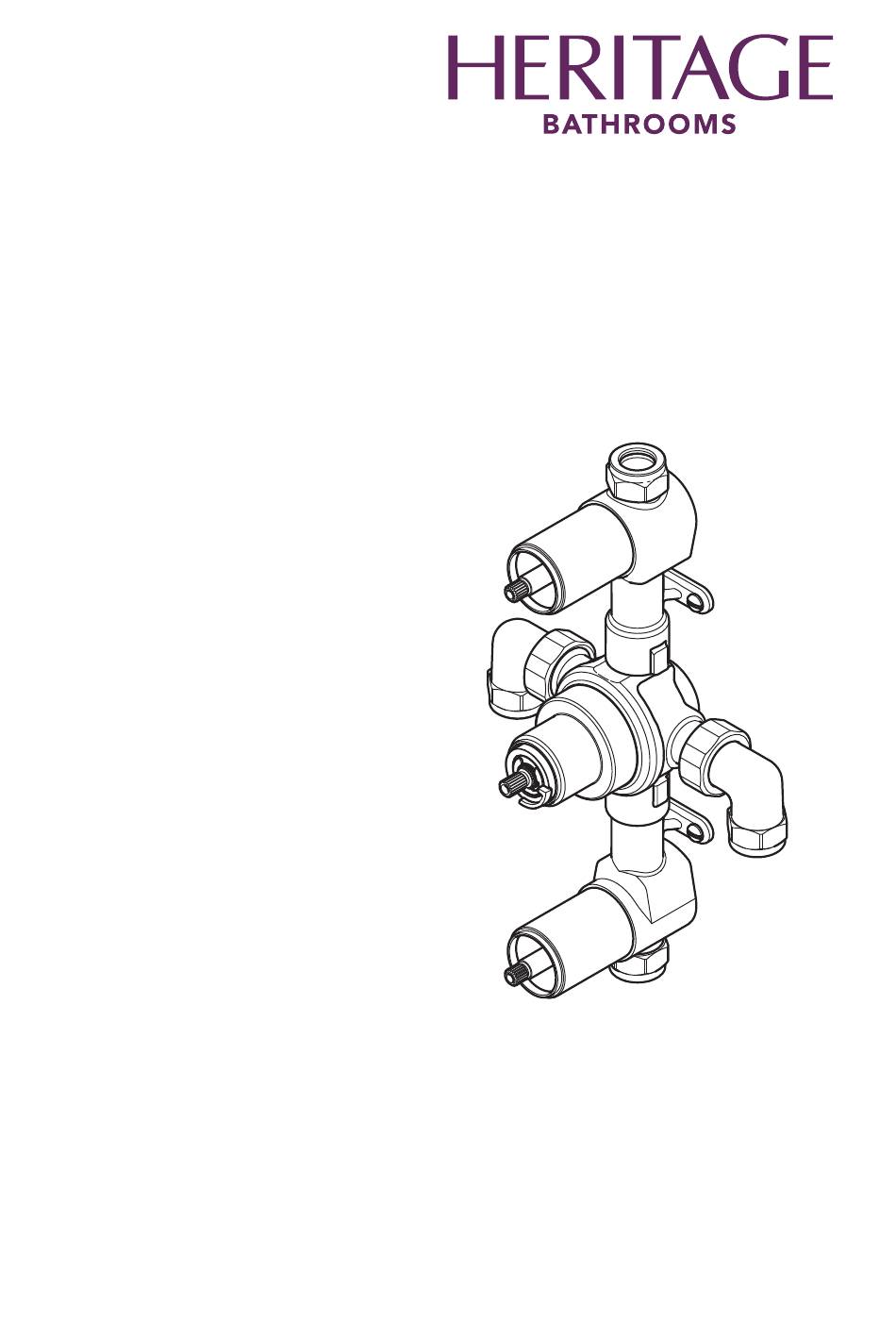

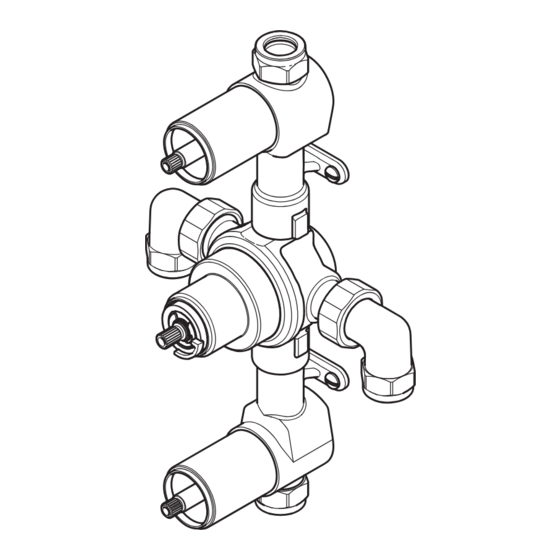

- Page 1 Installation Instructions and User Guide Thermostatic Recessed Three Control Shower Valve with Integral Twin Stopcocks Models covered: SDC05, SDA05 & SOC11 Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Heritage, the UK’s market leader for classic bathroom products. To ensure this product works to its full potential, it needs to be fi tted correctly. These fi tting instructions have been created to give you all of the information you need. If you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Heritage are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualifi... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfi es the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. BS7600 recommends the temperature of stored water should never exceed 65ºC. -
Page 5: Product Features
Note: Both stopcocks can be used independantly or together. If both stopcocks are used together the fl ow will be shared between both outlets. SDC05 shown Need help? Give us a call on 0844 701 8503 and speak to one of our trained advisers. -
Page 6: Specifi Cations
Specifi cations Inlet connections: 15mm compression with 150mm between centres. Minimum working pressure: 0.2 bar Note: This product has been designed to deliver a high fl ow of water on low pressure systems, however depending on the installation, type of system and shower accessories used a higher pressure maybe required to optimise the showering experence. -
Page 7: Pack Contents
Pack Contents - SDC05 & SDA05 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Shrouds x3 5. Handle screws x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10. - Page 8 Pack Contents - SOC11 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Extension screws x3 5. Spline adaptors x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
-
Page 9: Prior To Installation
Prior to Installation Flow Regulators This shower valve is supplied with a 5 and 7 litre per minute fl ow regulator loose in the box which must be fi tted if the shower valve is installed in conjunction with an instantaneous water heater / combination Filter boiler. -
Page 10: Installation
Installation - Shower Valve Once the shower valve has been installed Important: Water supplies to the mixer the valve fi lters and thermostatic cartride must be with hot on the left and cold on are fully accessable from the front so no the right when viewed from the front. - Page 11 Installation - Shower Valve 4. Fit concealing plate Note: The concealing plate can be used as a template by drawing around the plate and measuring in by 10mm to give suffi cient clearance. Run a bead of waterproof silicon sealant around the inner edge of the concealing plate.
-
Page 12: Wall Outlet
Installation - Wall Outlet Fitting the Wall Outlet There are two methods of fi xing the wall Backnut outlet depending on the type of wall: a: With rear access once wall fi nished Fit the rubber washer to the back of the Rubber wall outlet, place the assembly through a seal... -
Page 13: Operating The Shower
Operating the Shower 1. Single outlet stopcock This single outlet stopcock controls the on / off and fl ow of water to a single outlet e.g. Rigid riser. Turn the handle anti-clockwise to turn the flow of water on. Turn the handle clockwise to turn the flow of water off. -
Page 14: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All surfaces will wear Unscrew if not cleaned correctly, the only safe way anti-clockwise to clean your product is to wipe with a soft to remove damp cloth. -
Page 15: Adjusting The Temperature
Adjusting the Temperature Adjusting the Temperature temperature of the water with a The shower valve has been factory set to thermometer. If the temperature is not 42ºC with equal (balanced) hot and cold correct, re-calibrate the shower valve: water supply pressures, with the hot water 1. -
Page 16: Troubleshooting
Troubleshooting Symptom Cause Remedy No fl ow or low Check showerhead, hose and Clean as necessary, refer to fl ow rate and fi lters for any blockage. Maintenance section (page 14). / or varying Partially closed stop or service Open stop or service valve. temperatures. - Page 17 Troubleshooting Symptom Cause Remedy Maximum water Maximum water temperature Reset maximum water temperature too set incorrectly. temperature. Refer to ‘Maximum hot or cold. Temperature setting’ in Maintenance section (page 14) and ‘Adjusting the Temperature’ (page 15). Outlet water Inlet fi lter is partially blocked. Check inlet fi...
-
Page 18: Guarantee
Guarantee When you buy a Heritage product, you • Repair under this guarantee does not can be confident that it not only features extend the original expiry date. The a beautiful, distinctive, classic design, but guarantee on any replacement parts or that it has also been made to the very product ends at the original expiry date. - Page 19 Guarantee • Need help? Expert plumbing engineers If this product does not function correctly If we can’t solve the problem over the when first used, contact Heritage ‘phone or with a spare part, then we’ll Customer Service on 0844 701 8503 send out one of our engineers to take a where our expert team of advisors will be look.
- Page 20 Part Number: FI: SDC05/SDA05/SOC11 Issue: D1 Heritage Bathrooms Useful contact details: Birch Coppice Business Park Customer Service Tel: Dordon 0844 701 8503 Tamworth Customer Service Fax: Staffordshire 0844 701 8504 B78 1SG Web: www.heritagebathrooms.com Customer Service Email: Email: technical@heritagebathrooms technical@heritagebathrooms.com...
