- Page 1 Handheld Transmitter User guide for the Shure AD2 Axient Digital handheld transmitter. Version: 12.7 (2022-B)
-
Page 2: Table Of Contents
Updating Firmware Performance Firmware Versions Design Updating the Transmitter Power RF Mute Included Components Choice of (1) of the following Shure microphone car Safe Start tridges: Input Overload Optional Accessories Tone Generator Optional Shure microphone cartridges: Matching Audio Levels with Offset... - Page 3 Shure Incorporated Australia Warning for Wireless Certifications Information to the user 3/26...
-
Page 4: Ad2 Handheld Transmitter

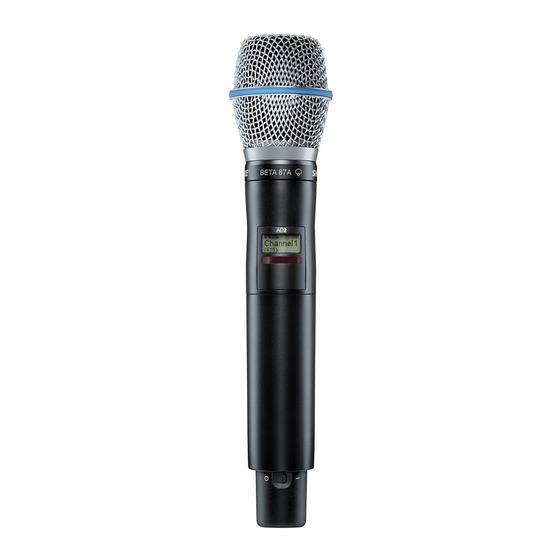

AD2 Handheld Transmitter AD series hand-held transmitters deliver impeccable audio quality and RF performance with wide-tuning, High Density (HD) mode, and encryption. The transmitter features durable metal construction, AA or Shure rechargeable battery (with dockable charging), and black or nickel finish options. -
Page 5: Choice Of (1) Of The Following Shure Microphone Cartridges
Swivel Adapter, black 90F4046 AA alkaline batteries (2) 80B8201 Battery Contact Cover WA618 Choice of (1) of the following Shure microphone cartridges: SM58 (RPW112) KSM9 Nickel (RPW188) BETA 87C (RPW122) BETA 87A (RPW120) BETA 58A (RPW 118) KSM9 Black (RPW184) - Page 6 Align with the receiver IR port during an IR Sync for automated transmitter programming. ④ Menu Navigation Buttons Use to navigate through parameter menus and change values. ⑤ Battery Compartment Requires Shure rechargeable battery or 2 AA batteries. ⑥ AA Battery Adapter Remove to accommodate a Shure rechargeable battery. ⑦ On/Off Switch Powers the unit on or off.
-
Page 7: Transmitter Controls
Shure Incorporated Transmitter Controls Use to navigate through parameter menus and change values. exit Acts as a 'back' button to return to previous menus or parameters without confirming a value change enter Enters menu screens and confirms parameter changes ∨∧... -
Page 8: Locking The Interface
② Installing batteries • Shure rechargeable battery: Place battery as shown (note polarity markings). Remove the AA adapter and stow it in the door. Close the door to secure the battery. If using AA batteries, set the battery type using the transmitter menu. -
Page 9: Shure Rechargeable Battery
Shure Incorporated If a Shure rechargeable battery is installed, selecting a battery type is not necessary and the battery type will display Shure. Navigate to the Utilities and select Battery. Use the ▼▲ buttons to select the installed battery type: ◦... -
Page 10: Aa Batteries And Transmitter Runtime
Temperature: Battery temperature reported in Celsius and Fahrenheit Important Tips for Care and Storage of Shure Rechargeable Batteries Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime. • Always store batteries and transmitters at room temperature •... -
Page 11: Installing The Battery Contact Cover
Shure Incorporated Battery Runtime (hours:minutes) Battery Indicator 2 mW 2 mW/10 <1:45 <1:30 <1:45 <2:00 <0:45 <0:45 <0:45 <0:45 <0:15 <0:15 <0:15 <0:15 Installing the Battery Contact Cover Use battery contact covers to prevent reflections from the battery contacts during broadcasts or live performances. -
Page 12: Tips For Editing Menu Parameters
Shure Incorporated Tips for Editing Menu Parameters • To access the menu options from the home screen, select enter. Select enter again to access the menu parameters. • A menu parameter will blink when editing is enabled • To increase, decrease or change a parameter, use the arrow buttons •... -
Page 13: Audio Menu
Shure Incorporated Audio Menu Offset Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver slots. Adjustment range: -12 dB to +21 dB. Mute When enabled, the power switch is configured as a mute switch for the audio: ◦... -
Page 14: Ir Sync
Shure Incorporated ◦ HW Version: Hardware version ◦ Serial Num: Serial number Reset All Restores all transmitter parameters to factory settings. IR Sync Use IR Sync to form an audio channel between the transmitter and receiver. Note: The receiver band must match the band of the transmitter. -
Page 15: Updating Firmware
When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version to ensure consistent operation. The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g., 1.2.x). -
Page 16: Safe Start
Shure Incorporated ◦ Mute: RF signal is disabled Press enter to save. Turning the transmitter off and on or replacing the battery will restore Output to On. Safe Start Power on in Safe Start mode to prevent interference with other devices. Hold the exit button while powering on your device un... -
Page 17: Matching Audio Levels With Offset
Shure Incorporated Set the frequency to 400 Hz or 1000 Hz. Select Level and use the arrow buttons adjust the value between -60 dB and 0 dB. Turn off the tone by selecting Off from the menu or by cycling the transmitter power. -
Page 18: Power
Shure Incorporated Issue See Solution... Antenna Fault Red LED Handheld transmitter shuts down during use Clean Battery Contacts Power Make sure that the receiver and transmitter are receiving sufficient voltage. Check the battery indicators and replace the trans mitter batteries if necessary. -
Page 19: Clean Battery Contacts
Shure Incorporated The red RF LED indicates RF overload. Overloads have the potential to cause interference in multiple system installations. If you are experiencing an overload, turn off the receiver to see if it is causing interference with other components. -
Page 20: Contact Customer Support
Contact our customer support to get help. Specifications Mic Offset Range 12 to 21 dB (In 1 dB steps) Battery Type Shure SB900B Rechargeable LiIon or LR6 AA batteries 1.5 V Battery Runtime @ 10 mW Shure SB900B up to 8:30 hours alkaline... -
Page 21: Frequency Range And Transmitter Output Level
350 kHz High Density Mode 125 kHz varies by region Modulation Type Shure Axient Digital Proprietary Power 2 mW, 10 mW, 35 mW See Frequency Range and Output Power table, varies by region Specific Absorption Rate (SAR) < 0.19 W/kg... - Page 22 Shure Incorporated Band Frequency Range ( MHz) RF Output Power ( mW)*** K57△ 606 to 790 2/10/35 622 to 698 2/10/35 630 to 787 2/10/35 630.125 to 697.875 2/10/35 694 to 703, 748 to 758, 803 to 806 2/10/35 630.125 to 697.875...
- Page 23 Shure Incorporated Country Code Frequency Range Code de Pays Gamme de frequences Codice di paese Gamme di frequenza Código de país Gama de frequencias Länder-Kürzel Frequenzbereich all other countries * This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.
-
Page 24: Warning
Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. - Page 25 This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. CE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// www.shure.com/en-EU/support/declarations-of-conformity.
- Page 26 Shure Incorporated Information to the user This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
