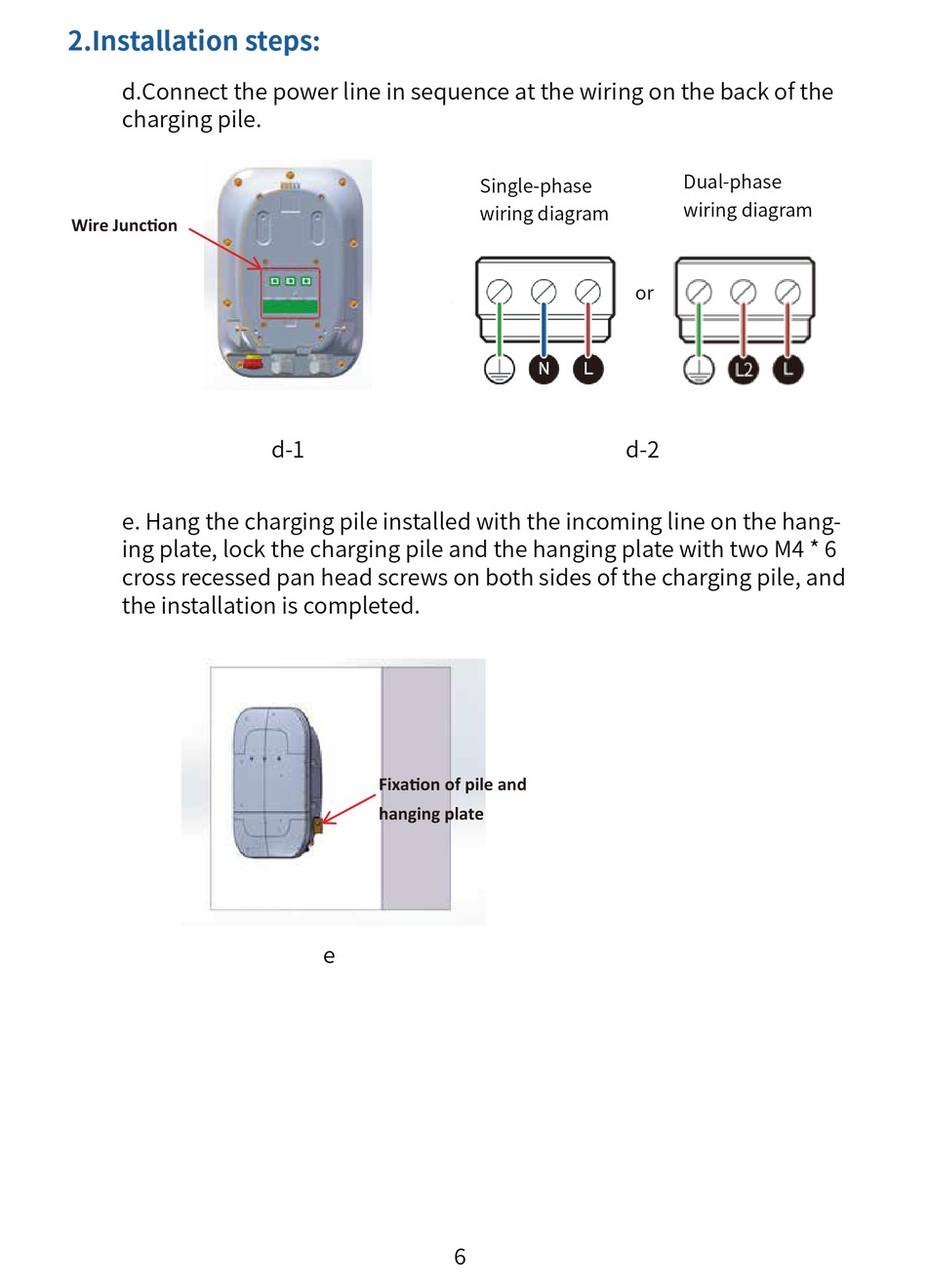

2.Installation steps:
d.Connect the power line in sequence at the wiring on the back of the
charging pile.
Wire Junc�on
e. Hang the charging pile installed with the incoming line on the hang-
ing plate, lock the charging pile and the hanging plate with two M4 * 6
cross recessed pan head screws on both sides of the charging pile, and
the installation is completed.
d-1
Fixa�on of pile and
hanging plate
e
Single-phase
wiring diagram
6
Dual-phase
wiring diagram
or
d-2
