Installation Notes:

The installation should consider the following conditions:
1. The location selection should consider the length of cable and provide the
user with convenience for charging;
2. Charging equipment should not be installed near hazardous area such as
electrical shock and flammable or explosive materials;
3. Charging equipment should not be installed in places where it is prone to
flooding;
4. The charger should be installed in a well-ventilated place;
5. The installation location should be clear of obstructions;
6. There should be enough distance of about 50cm around the charging
equipment when installed on the wall;
Install Process:

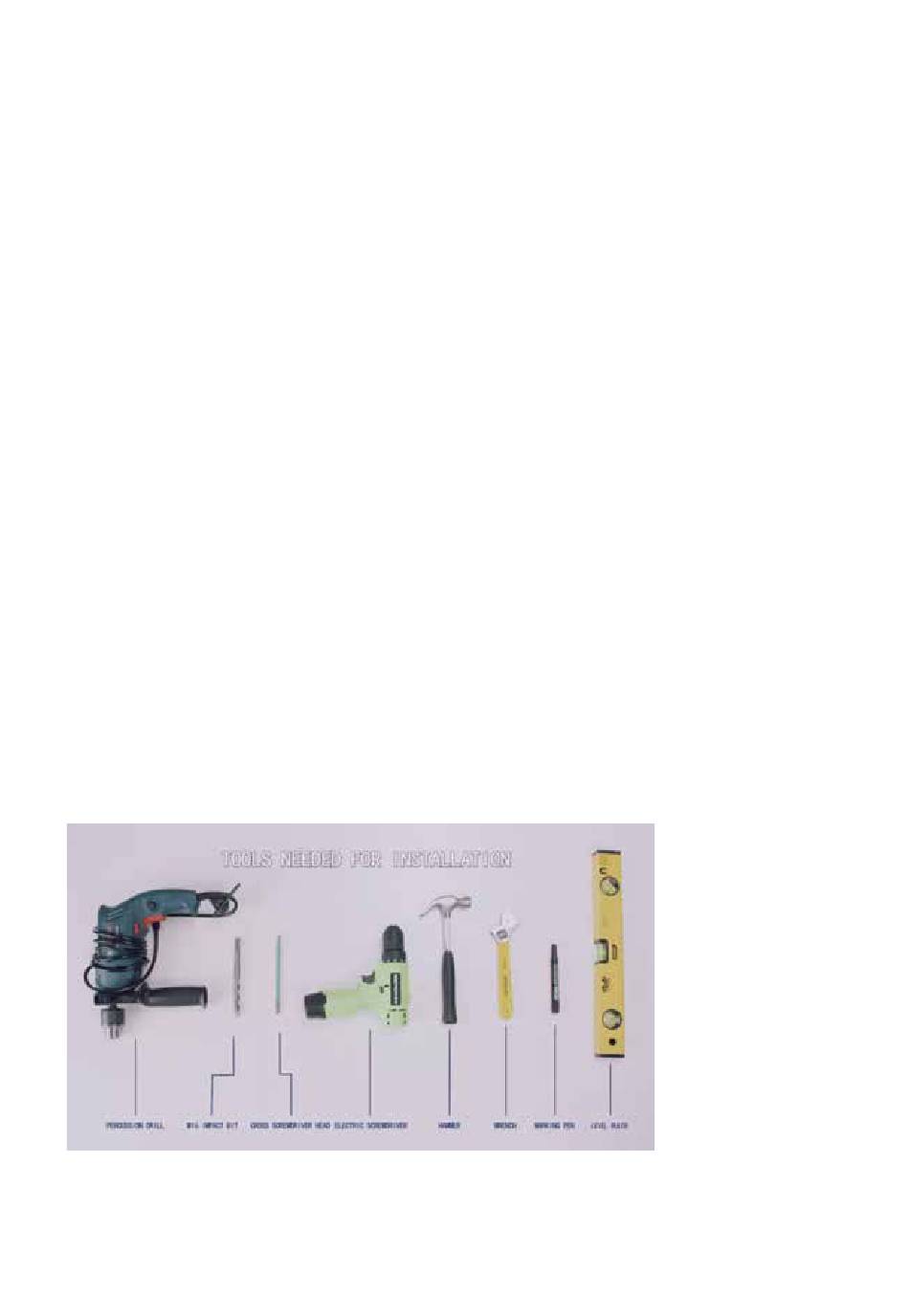

1. Installation tools:
Preparation: (impact drill M8 drill bit, electric screwdriver, gradient)
The mounting screws are already included in the fitting
