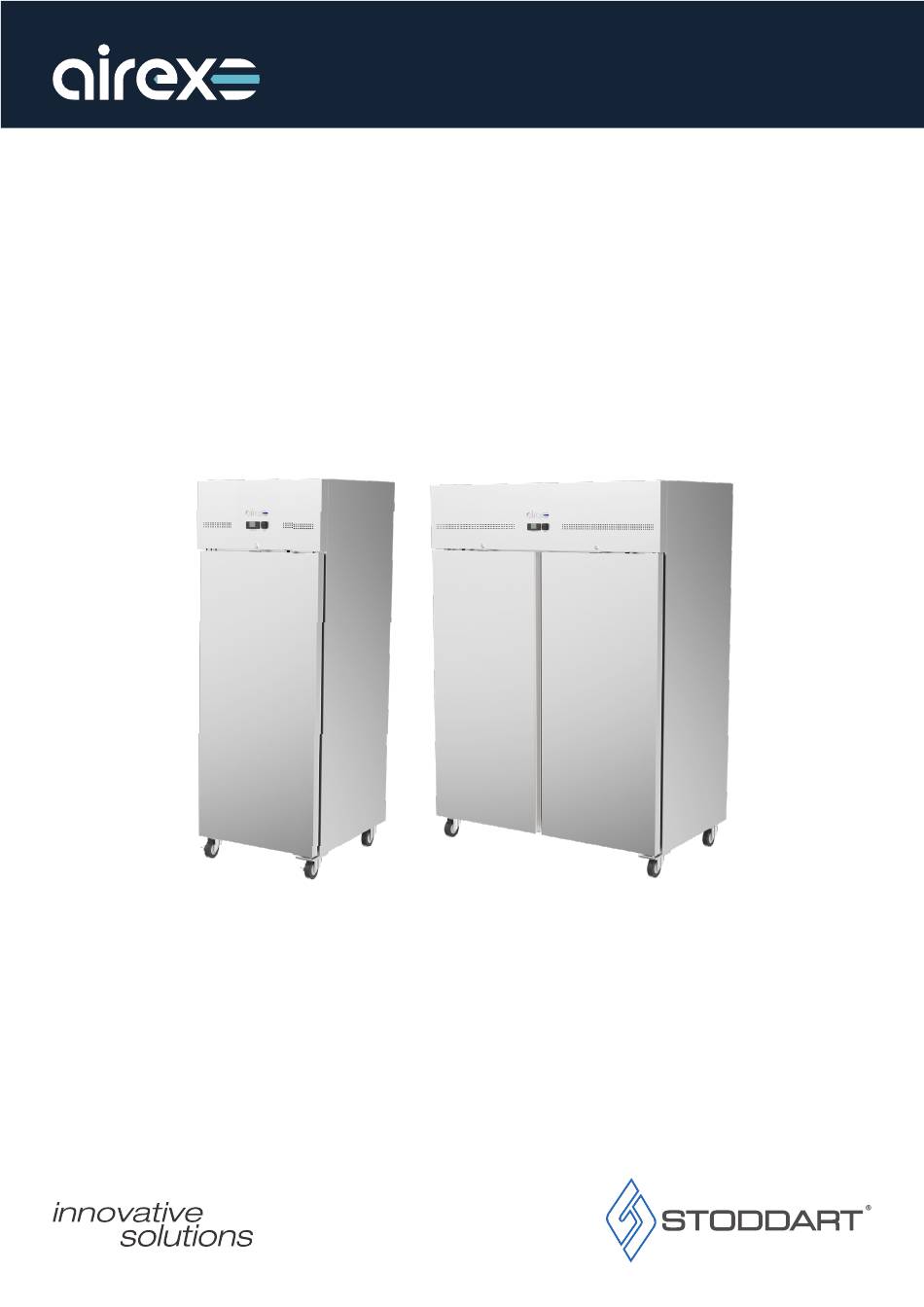

- Page 1 Upright Freezer 1 & 2 Door SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Model: AXF.URGN.1 / AXF.URGN.2 Revision: C - 20/09/2023 - 01...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 5.0 Cleaning and Maintenance 1.1 Your New Airex Product ....3 5.1 Cleaning ......13 5.1.1 Cleaning Schedule...
- Page 4 Thank you for choosing this quality Airex product. All Airex products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Airex product in accordance with these instructions, will provide many years of reliable service.
-
Page 5: Warranty And Registration
1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty. -
Page 6: Installation
2.0 Installation 2.1 Product Overview IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 0°C - 6°C CAUTION This unit includes refrigeration components. Cold surfaces can burn DO NOT touch these surfaces Digital Controller Solid Door Castors... - Page 7 2.0 Installation 2.2 Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 2.2.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 2.2.2 Unpacking •...
-
Page 8: Electrical Connection
2.0 Installation 2.3 Refrigeration The system is fully operational as soon as it leaves the factory. No addition setup is required. Warning SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT R290 This unit must be serviced in accordance with AS/NZS 1677:1998 2.3.1 Climate Classes The unit has been designed and tested to operate at climate class 4M1. -
Page 9: Adjustable Shelves
2.0 Installation 2.5 Plumbing The unit is supplied with a condensate burn-off tray. No additional drainage or plumbing is required. 2.6 Adjustable Shelves 2.6.1 Shelf Installation Note: Do not use pliers when installing shelf clips Insert the back clip of the tray slide into the upright rail Insert the front clip of the tray slide into the upright rail, then pull downward. -
Page 10: Specification
3.0 Specification 3.1 Technical Drawing 3.1.1 AXF.URGN.1 Specifications Model AXF.URGN.1 W x D x H 700 x 850 x 1990 (mm) Weight 132kg Packed Dimensions 730 x 875 x 2040 (mm) Packed Weight 147kg Net Capacity 369 Litres Operation 16°C - 20°C... -
Page 11: Initial Start-Up & Operation
4.0 Operation 4.1 Initial Start-up & Operation IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 16°C - 20°C 4.1.1 Controller 4.1.2 Initial Start Up • Before switching ON the unit, ensure the unit is installed correctly •... - Page 12 4.0 Operation 4.1.5 Defrost Cycle - Automatic • The system has an automatic defrost system which improves the energy efficiency of the unit and minimises temperature fluctuations • After the unit is first switched ON, the first defrost cycle will occur automatically after 6 hours. If the unit is NOT turned OFF, the unit will defrost automatically 4 times per day or every 6 hours •...
-
Page 13: Temperature Adjustment
4.0 Operation 4.2 Temperature Adjustment • The temperature range of this unit is 16°C - 20°C • Different modes require different temperatures • The temperature probe only measures the temperature of the water/air, NOT the food temperature DIXEL CONTROL: DISPLAY: MODE DESCRIPTION Compressor enabled... -
Page 14: Cleaning And Maintenance
5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Regular cleaning is recommenced for the unit. This will help to maintain and prolong the efficiency of the unit 5.1.2 Materials Required • Stainless Cleaner • Non Abrasive Cleaning pad •... - Page 15 5.0 Cleaning and Maintenance 5.1.6 Refrigerator Isolate the unit from the power supply Remove shelves and wash separately in a dishwasher or kitchen sink, thoroughly wipe dry after cleaning Using a good quality nylon brush remove crumbs and small food items Clean using a clean cloth dampened (not wet) with clean warm soapy water until all soil has been removed Thoroughly wipe dry with a soft cloth after cleaning, do NOT allow to air dry.
-
Page 16: Troubleshooting Procedures
5.0 Cleaning and Maintenance 5.2 Troubleshooting 5.2.1 Troubleshooting Procedures • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 17 5.0 Cleaning and Maintenance 5.3 Disposal If the appliance is no longer of use, please dispose in an environmentally correct way. Contact a qualified service technician: • To recover all refrigerant • To remove the compressor or remove the oil from the compressor The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
- Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 17...
- Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 18...
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
