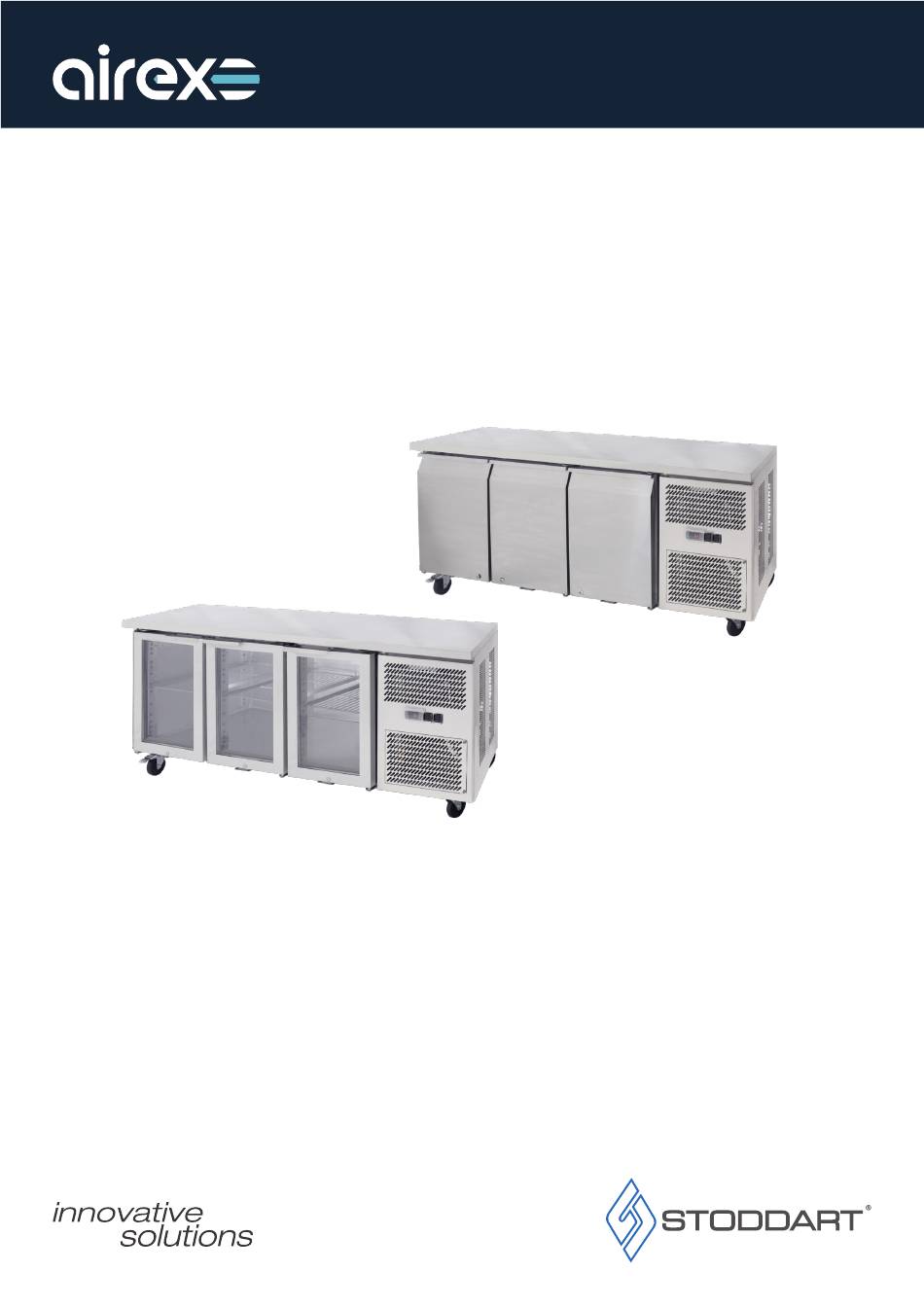

- Page 1 Undercounter Refrigeration 2 - 4 Door SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Models: AXR.UCGN.2 / AXR.UCGN.2G AXR.UCGN.3 / AXR.UCGN.3G AXR.UCGN.4 / AXR.UCGN.4G Revision: 01 - 18/08/2020 - A...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Cleaning and Maintenance Your New Airex Product ..... 3 Cleaning ......15 General Information Australia and New Zealand Warranty .
- Page 4 Thank you for choosing this quality Airex product. All Airex products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new Airex product in accordance with these instructions, will provide many years of reliable service.
-
Page 5: Warranty And Registration
Introduction Warranty & Registration Australia and New Zealand Warranty Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty. -
Page 6: Installation
Installation Product Overview IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 0°C - 6°C CAUTION This unit includes refrigeration components. Cold surfaces can burn DO NOT touch these surfaces Digital Controller Solid / Glass Door Power... - Page 7 Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) Unpacking •...
-
Page 8: Electrical Connection
Installation Refrigeration The system is fully operational as soon as it leaves the factory. No addition setup is required. Warning SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT R290 This unit must be serviced in accordance with AS/NZS 1677:1998 Climate Classes The unit has been designed and tested to operate at climate class 4. Refer to the Technical Specifications of this manual or the unit rating label for the climate class number. -
Page 9: Adjustable Shelves
Installation Plumbing The unit is supplied with a condensate burn-off tray. No additional drainage or plumbing is required. Adjustable Shelves Shelf Installation Note: Do not use pliers when installing shelf clips Insert the back clip of the tray slide into the upright rail Insert the front clip of the tray slide into the upright rail, then pull downward. -
Page 10: Specification
Specification General Drawing AXR.UCGN.2 Specifications 1360 Model AXR.UCGN.2 W x D x H (mm) 1360 x 700 x 840 Weight 92kg Capacity 196 Litres Operation 0°C - 6°C Refrigerant R290 Climate Class Max Ambient 40°C Power 220 - 240V 10A plug & lead FRONT VIEW SIDE VIEW AXR.UCGN.2G... - Page 11 Specification AXR.UCGN.3 1795 Specifications Model AXR.UCGN.3 W x D x H (mm) 1795 x 700 x 840 Weight 114kg Capacity 294 Litres Operation 0°C - 6°C Refrigerant R290 Climate Class Max Ambient 40°C Power 220 - 240V 10A plug & lead FRONT VIEW SIDE VIEW AXR.UCGN.3G...
- Page 12 Specification AXR.UCGN.4 2230 Specifications Model AXR.UCGN.4 W x D x H (mm) 2230 x 700 x 840 Weight 132kg Capacity 421 Litres Operation 0°C - 6°C Refrigerant R290 Climate Class Max Ambient 40°C Power 220 - 240V 10A plug & lead FRONT VIEW SIDE VIEW AXR.UCGN.4G...
-
Page 13: Initial Start-Up & Operation
Operation Initial Start-up & Operation IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 0°C - 6°C Controller Initial Start Up • Before switching ON the unit, ensure the unit is installed correctly •... - Page 14 Operation Defrost Cycle - Automatic • The system has an automatic defrost system which improves the energy efficiency of the unit and minimises temperature fluctuations • After the unit is first switched ON, the first defrost cycle will occur automatically after 6 hours. If the unit is NOT turned OFF, the unit will defrost automatically 4 times per day or every 6 hours •...
-
Page 15: Temperature Adjustment
Operation Temperature Adjustment • The temperature range of this unit is 0°C - 6°C. The recommended operating temperature is 2°C - 4°C • Different modes require different temperatures • The temperature probe only measures the temperature of the water/air, NOT the food temperature KEY FUNCTIONS: To display target set point;... -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... - Page 17 Cleaning and Maintenance Cleaning Schedule • Regular cleaning is recommenced for the unit. This will help to maintain and prolong the efficiency of the unit Materials Required • Stainless Cleaner • Non Abrasive Cleaning pad • Clean Sanitised Cloth • Paper Towel •...
-
Page 18: Troubleshooting Procedures
Cleaning and Maintenance Troubleshooting Troubleshooting Procedures • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 19 Cleaning and Maintenance Disposal If the appliance is no longer of use, please dispose in an environmentally correct way. Contact a qualified service technician: • To recover all refrigerant • To remove the compressor or remove the oil from the compressor The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
