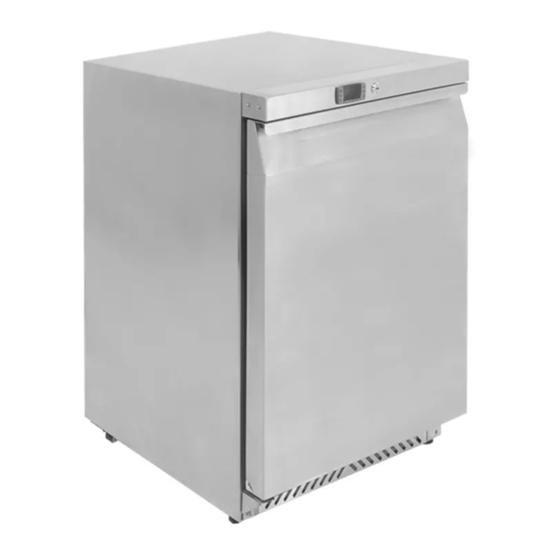

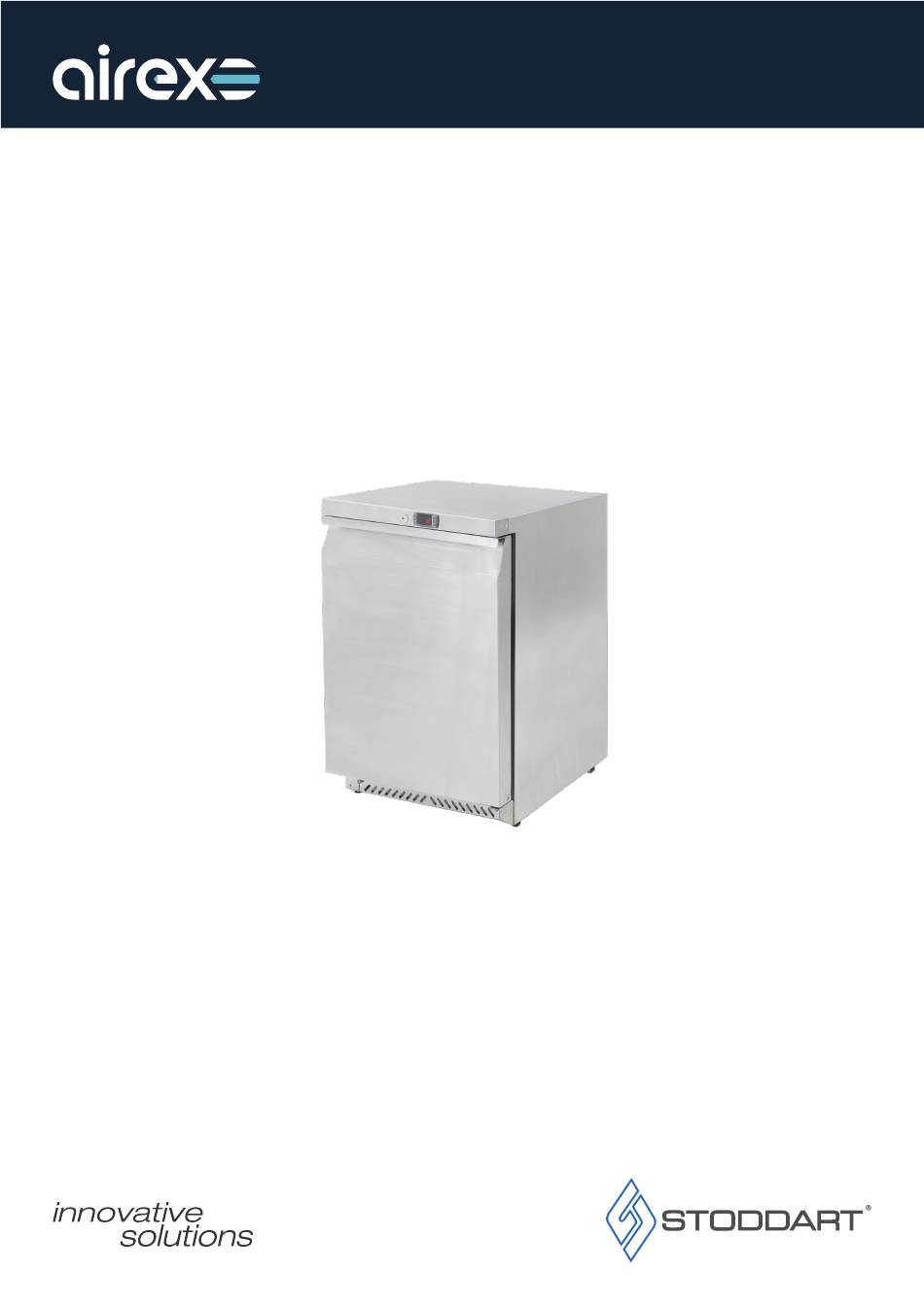

- Page 1 Undercounter Freezer 1 Door SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Model: AXF.UC.1 Revision: 01 - 21/07/2020 - A...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Cleaning and Maintenance Your New Airex Product ..... 3 Cleaning ......13 General Information Australia and New Zealand Warranty .
- Page 4 Thank you for choosing this quality Airex product. All Airex products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new Airex product in accordance with these instructions, will provide many years of reliable service.
-
Page 5: Warranty And Registration
Introduction Warranty & Registration Australia and New Zealand Warranty Warranty Period Stoddart 24 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase. To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information Warranty Registration To register your new product, go to the Stoddart warranty page: http://www.stoddart.com.au/warranty-registration General Precautions... -
Page 6: Product Overview
Installation Product Overview IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 16°C - 20°C CAUTION This unit includes refrigeration components. Cold surfaces can burn DO NOT touch these surfaces Digital Controller Door Lock Solid Door... - Page 7 Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) Unpacking •...
-
Page 8: Electrical Connection
Installation Refrigeration The system is fully operational as soon as it leaves the factory. No addition setup is required. Warning SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT R600a This unit must be serviced in accordance with AS/NZS 1677:1998 Climate Classes The unit has been designed and tested to operate at climate class 4. Refer to the Technical Specifications of this manual or the unit rating label for the climate class number. -
Page 9: Adjustable Shelves
Installation Plumbing The unit is supplied with a condensate burn-off tray. No additional drainage or plumbing is required. Adjustable Shelves Shelf Installation Note: Do not use pliers when installing shelf clips The shelf support clip needs to be facing up, insert the for shelf clips into the vertical rails Push the shelf clips down (ensure all four shelf clips (four clips per shelf) are positioned at the same height) Lower the shelf over the shelf clips Due to continuous product research and development,... -
Page 10: General Drawing
Specification General Drawing AXF.UC.1 Specifications Model AXF.UC.1 W x D x H (mm) 595 x 600 x 840 Weight 46kg Capacity 125 Litres Operation 16°C - 18°C Refrigerant R600a Climate Class Max Ambient 32°C Power 220 - 240V 10A plug & lead TOP VIEW FRONT VIEW SIDE VIEW... -
Page 11: Initial Start-Up & Operation
Operation Initial Start-up & Operation IMPORTANT This unit is not designed to cool down hot/warm product. It only maintains the product at the controlled 16°C - 20°C Controller Initial Start Up • Before switching ON the unit, ensure the unit is installed correctly •... - Page 12 Operation Defrost Cycle - Automatic • The system has an automatic defrost system which improves the energy efficiency of the unit and minimises temperature fluctuations • After the unit is first switched ON, the first defrost cycle will occur automatically after 6 hours. If the unit is NOT turned OFF, the unit will defrost automatically 4 times per day or every 6 hours •...
-
Page 13: Temperature Adjustment
Operation Temperature Adjustment • The temperature range of this unit is 16°C - 20°C • Different modes require different temperatures • The temperature probe only measures the temperature of the water/air, NOT the food temperature KEY FUNCTIONS: To display target set point; in programming mode it selects a parameter or confirm an operation. (DEF) To start a manual defrost. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... - Page 15 Cleaning and Maintenance Cleaning Schedule • Regular cleaning is recommenced for the unit. This will help to maintain and prolong the efficiency of the unit Materials Required • Stainless Cleaner • Non Abrasive Cleaning pad • Clean Sanitised Cloth • Paper Towel •...
-
Page 16: Troubleshooting Procedures
Cleaning and Maintenance Troubleshooting Troubleshooting Procedures • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 17 Cleaning and Maintenance Disposal If the appliance is no longer of use, please dispose in an environmentally correct way. Contact a qualified service technician: • To recover all refrigerant • To remove the compressor or remove the oil from the compressor The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
- Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 17...
- Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 18...
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
