QiLocks Qi731 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Qi731
DIGITAL
COMBINATION
LOCK

Advertisement

loading
Need help?

Need help?

Do you have a question about the Qi731 and is the answer not in the manual?

Questions and answers

Related Manuals for QiLocks Qi731

Summary of Contents for QiLocks Qi731

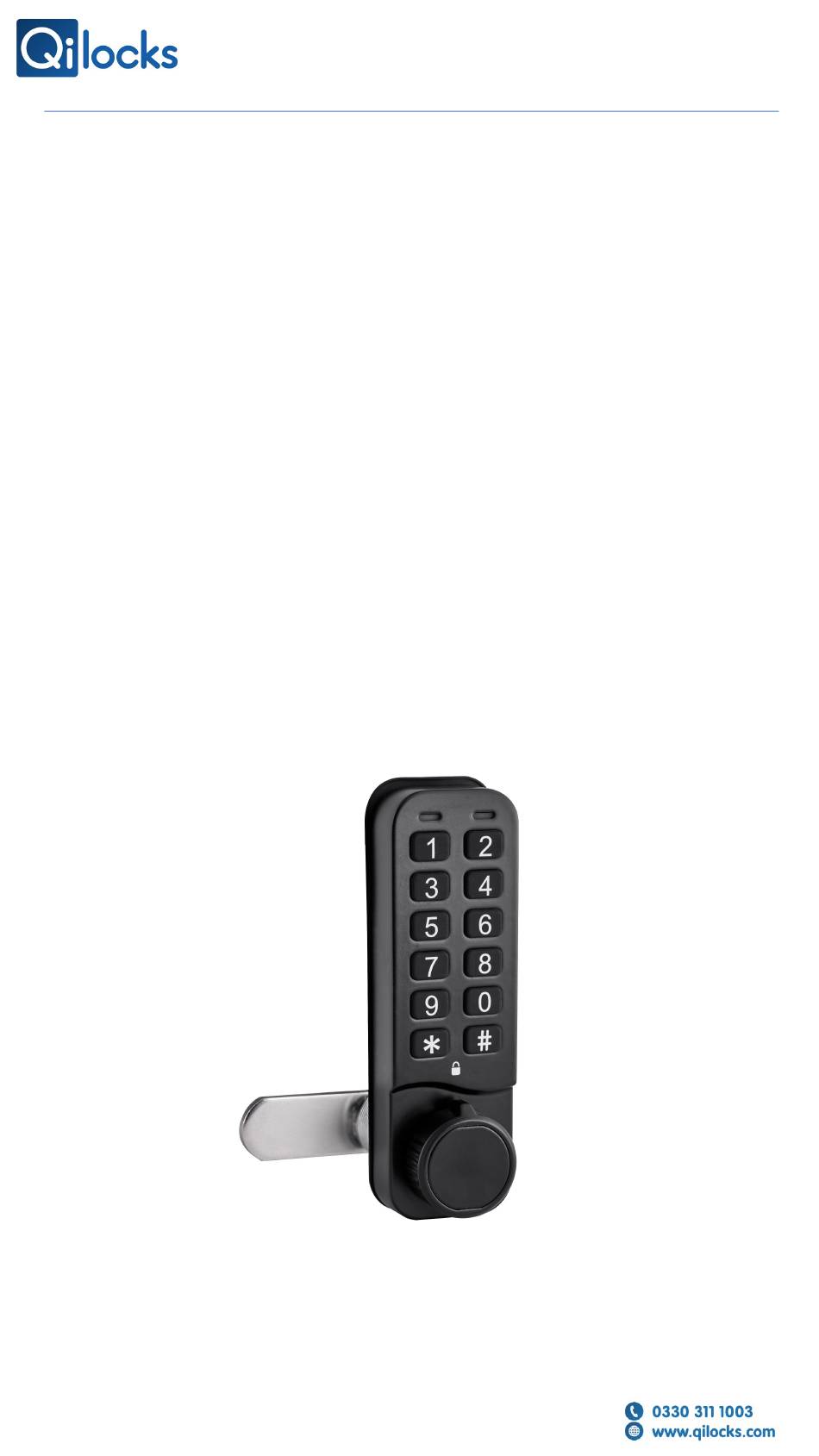

  • Page 1 Qi731 DIGITAL COMBINATION LOCK...

  • Page 2: Technical Drawing

    MK731 Digital Combination Lock FEATURES Metal Lock Switch between Private and Horizontal & Vertical Models Public mode easily Different Colour options Easy to installation (available upon request) Rector fit existing Punch Hole Easy to set / Change Code (19 x 16.1mm mechanical locks) Master Key for Emergency Meets IP55 rating Opening...
  • Page 3 MK731 Digital Combination Lock Operator Instructions The lock has a 10 button keypad , a button and a # button. The lock has three code levels that allow you to perform the following actions: Master code(8 digit code) Sub-master code(8 digit code) User code(4 digit code) Default Settings Master code = 20050330 (8 digit code)
  • Page 4 Setup New locks operate with the default user and master codes. A new user and master code must be programmed to prevent the default codes from operating the lock and reducing lock security. Master Code Functions: 1)Open: Enter master code (The user code will be deleted when using master code when the lock is in public mode) 2) Programming Master Code...
  • Page 5 Sub-Master Code Functions: 1)Open Enter sub-master code (The user code will be deleted when using sub-master code when the lock in public mode) 2) Change the Sub-master Code Press *---current sub-master code --- # --- 04--#--new sub-master code - -- # 3) Set/Change the User Code (Private Mode) Press--*--current sub-master code ---#---02--#-- new user code --- # User Code Function:...

  • Page 6: Additional Functions

    Additional Functions Occupied Status Indicator (Public Mode) – deactivated by default When activated the green light will flash every 6 seconds to indicate the locker is in use Activate: Press *--Master code--#--13--# Deactivate: Press *--Master code--#--14--# Password protection – deactivated by default Entering incorrect codes 5 times will cause the lock to shutdown for 5 minutes Automatically locked in Private Mode...
  • Page 7 Qi LOCKS LIMITED Unit 14 Stephenson Court Priory Business Park Bedford MK44 3WJ 0330 311 1003 sales@qilocks.com www.qilocks.com...
  • Page 8 Qi731H 20. 50 48. 55 96. 40 M AKE Secur i t y Technol ogy C o. , Lt d. TI TLE N AM E D ATE 0- 5: ± 0. 05; 5- 15: ± 0. 1 2022. 05. 19 M 2262 0205 143 15- 30: ±...
  • Page 9 Qi731LH 30. 50 96. 40 58. 55 M AKE Secur i t y Technol ogy C o. , Lt d. TI TLE N AM E D ATE 0- 5: ± 0. 05; 5- 15: ± 0. 1 2022. 05. 19 M 2262 0305 150 15- 30: ±...
  • Page 10 Qi731LV 31. 40 12. 50 30. 50 58. 55 21. 05 M AKE Secur i t y Technol ogy C o. , Lt d. TI TLE N AM E D ATE 0- 5: ± 0. 05; 5- 15: ± 0. 1 2022.
  • Page 11 Qi731V 12. 50 20. 50 48. 55 31. 40 M AKE Secur i t y Technol ogy C o. , Lt d. TI TLE N AM E D ATE 0- 5: ± 0. 05; 5- 15: ± 0. 1 2022. 05. 19 M 2262 0205 142 15- 30: ±...
