Summary of Contents for tempmate c1
-
Page 2: Table Of Contents
2. Device Description ....................................4 3. Display ........................................5 4. Operation and Use ....................................6 Configuration....................................6 Start logger ....................................6 Set mark .......................................7 Temporary evaluation ................................8 Stop logger ....................................8 Evaluation ......................................8 5. Important Notes ....................................9 6. Main Technical Specifications tempmate.®-C1 ........................10 7. Contact Information...................................12 1. Intended Use The tempmate.®-C1 is a single-use temperature data logger specifically designed to monitor temperature du- ring transportation of products that must be stored at extremely low temperatures. Any use or operation that requires specific requirements and standards not spe- cifically mentioned in the data sheet must be validated and tested at the customer‘s own responsibility. -
Page 3: Device Description

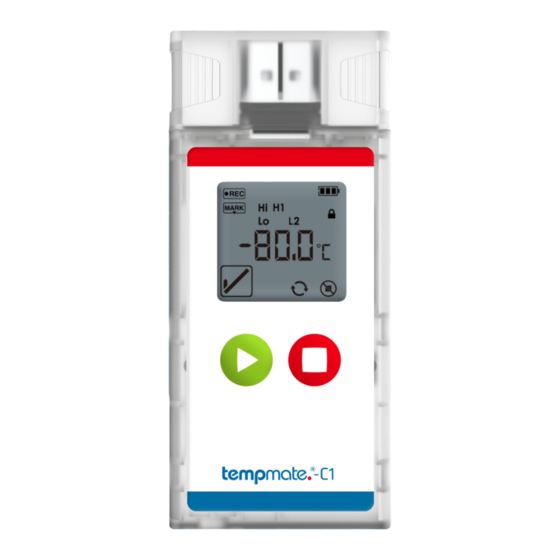

empower your supply chain. 2. Device Description 3. Display USB Port 1 Recording Status 2 Mark 3 Battery Level 4 Alarm Level 5 Password Protection 6 Measurement Value 7 Temperature Unit, Time Unit Start Button 8 Max. Value, Min. Value, Average Value 9 Alarm Status 10 Start Delay 11 Reuse – can be used for several campaigns 12 Stop Button Invalid Stop Button Menu navigation To scroll through the menu, press the green start button several times in quick succession. The display changes from the current temperature display first to the maximum recorded temperature value, then to the minimum and finally to the average value of the current recording. Pressing the button again takes you back to the current temperature display. To display the remaining usage time of the device, press the red stop button. The effective recording time depends on the selected measuring interval. Important: The total running time of 90 days with 24 hours each will be deducted per hour after the start V1.0-08/2023-EN ·... -
Page 4: Operation And Use
4. Operation and Use STEP 1 Configuration *optional Alternative start modes This step is only necessary if you want to adjust the pre-installed configuration to your application. Start via software (optional) Download the free tempbase.-Cryo software. This setting can be made in the tempbase.-Cryo software. https://www.tempmate.com/de/download/ (see STEP 1) Install the tempbase.-Cryo software on your PC. The start is triggered automatically as soon as the device is disconnected from the PC. Remove the cap and connect the unbooted logger to your PC. Open the tempbase.-Cryo software. The configuration screen is displayed directly. Important: A manual start is not possible with this configuration. Make the desired settings and save them via the menu item „Save Parameter“ (1) onto your device. Remove the logger from your PC and replace the cap securely. Timed start: (optional) This setting can be made in the tempbase.-Cryo software. (see STEP 1) The device will start according to the time set in the configuration software. Important: A manual start is not possible in this configuration. Important: When setting a start delay, the display shows a countdown of the selected time period. *Example STEP 3 Set mark Press the green start button twice in quick succession . As soon as the device records the marking, the symbol appears. . Once the symbol disappears, the marking process is completed. STEP 2 Start logger (manually) Important: Only one mark is possible per measuring interval. -
Page 5: Temporary Evaluation
Save your report and remove the logger from your PC again. Once the report is generated, the display will show The logger can now be disconnected from the PC. Important: If you connect the logger to your PC in the started mode, the recording will continue also in this moment. In order to be able to assign any fluctuations in your measurement results, we advise you to set a Important: Always make sure that this step is performed before restarting the device. If the device is restarted, mark before and after the temporary readout (see STEP 3). all old data will be overwritten. 5. Important Notes STEP 5 Stop Logger (manual) If the icon is displayed on the screen, the logger needs to be reconfigured Press and hold the red stop button for 5 seconds. When is displayed on the screen, it means that the battery level of the logger is too low to record The display switches off after a successful stop. for more than another 10 days. If the icon is displayed, the logger‘s battery is too low to record. Important: In the stopped state, a short press of any key is sufficient to view the max., min. and average value The configuration of your device cannot be changed during recording. of the last recording. Always dispose of batteries according to your country‘s regulations. Do not place the device in corrosive liquids or expose it to direct heat. Important: The device stops automatically when the memory is full. Alternative stop modes Stop by Software (optional) Open the tempbase.-Cryo software and connect your unstopped tempmate.®-C1 to your PC. (see STEP 1) Select the „Stop recording“ menu item to stop the device. V1.0-08/2023-EN · Technical Changes and Errors excepted... -
Page 6: Main Technical Specifications Tempmate.®-C1
Main Technical Specifications tempmate.®-C1 Model Dry Ice / Low Temperature Data Logger Part Number TC1-000 Usage Single-Use / Multi Start/Stop within 90 days possible Temperature Range -90°C to +70°C Accuracy ±0.5°C (-30°C to +70°C) ±1.0°C (others) Resolution 0.1°C 20.000 Readings using PDF & CSV (default) Memory Capacity 35.000 Readings using PDF only (optional) Connection Indication Battery 3.6V Lithium Battery Runtime Max. 90 days Dimensions 96mm(L) * 44mm(W) * 15mm(H) IP Protection IP65 Mark Max. 9 points Alarm Max. 6 points... -
Page 7: Contact Information
Contact Information Do you have any questions? Please contact us - our experienced team will be happy to support you. sales@tempmate.com +49 7131 6354 0 V1.0-08/2023-EN · Technical Changes and Errors excepted... - Page 8 Wannenäckerstr. 41 74078 Heilbronn, Germany Tel. +49-7131-6354-0 sales@tempmate.com www.tempmate.com...
