Summary of Contents for WaterTech SORBMAXPRO

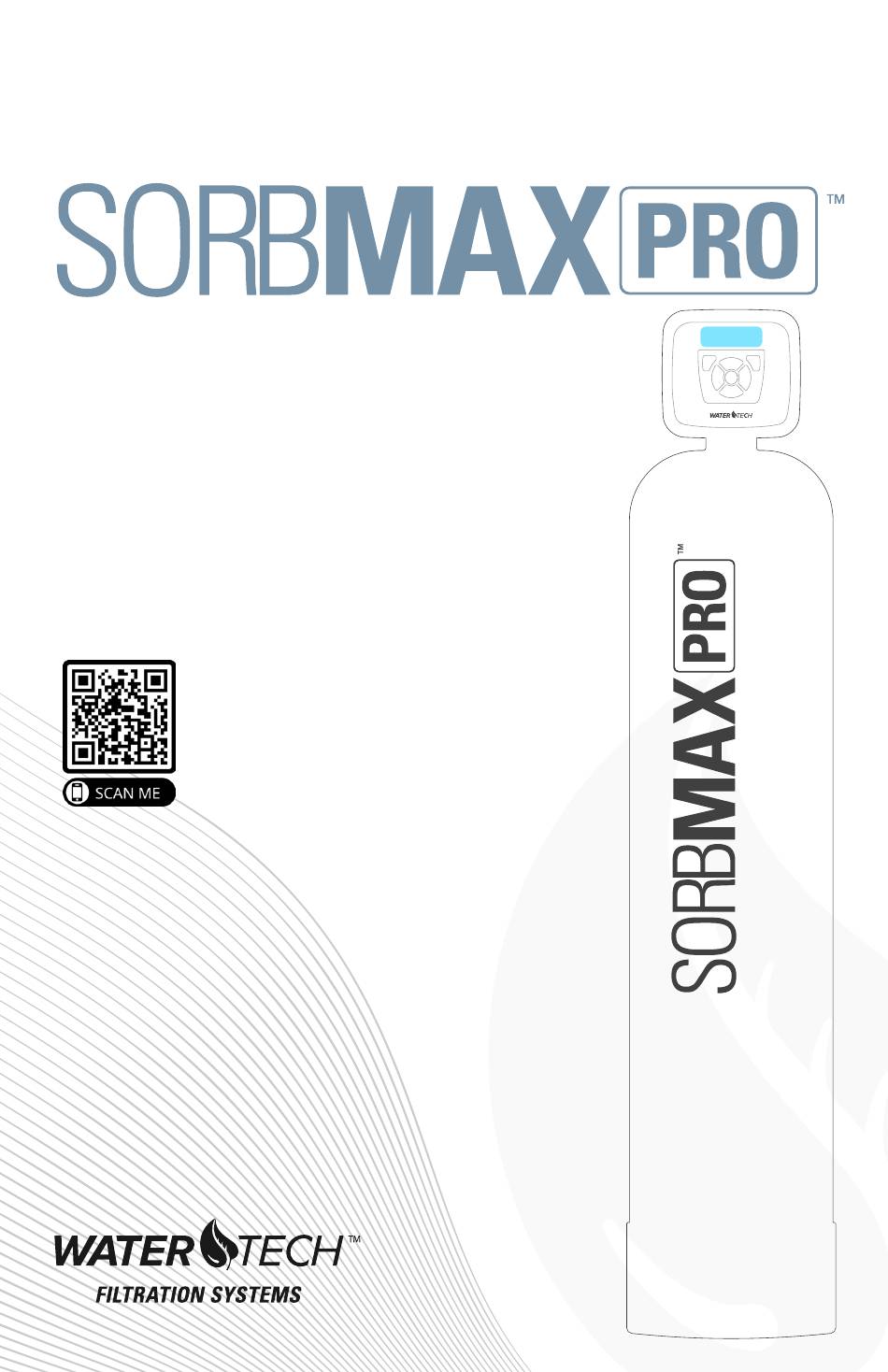

- Page 1 OWNERS MANUAL Whole House Water Conditioner With Triton Electronic Control Valve Activate your warranty by registering your product at watertech.com or call 469-521-1180.
-
Page 2: Do's And Don'ts
• bypass your system in the event of a water or plumbing related emergency. • contact your WaterTech Dealer if you have any questions about the operation of your system or water quality issues. • enjoy all the benefits of your treated water! DO NOT •... -
Page 3: Setting The Valve
If the word “ERROR” persists, afer a soft reset, and a number is alternately flashing on the display, contact an authorized WaterTech dealer for service help. This indicates that the valve was not able to function properly. This is a rarely encountered malfunction. -
Page 4: Starting Up The System
STARTING UP THE SYSTEM FLUSHING AND CONDITIONING Did you connect the drain line securely to the valve? STEP 1. Make sure the system is in the “Bypass” position before turning the main water back on. See page 9. Make sure the drain line provided is connected securely to the control valve and is properly located over a drain. -
Page 5: Maintenance
2. Check to see if your system is in bypass (see Bypass Illustrations on page 9) 3. Check to see if the drain line (see Drain Line Connection on page 7) has a kink that may be restricting flow during backwash. Correct, if necessary, or contact your WaterTech Dealer. 4. Place system in manual regeneration. -
Page 6: General Operation
DISPLAYS & PROGRAMMING INSTRUCTIONS GENERAL OPERATION: When the system is in operation, the TIME display will be shown. The user can view the Days Remaining and Flow Rate displays by pressing INFO once, then pressing the RIGHT button. System operation is not affected by pressing these buttons. DAYS REMAINING is the number of days left before the system goes through a regeneration cycle. -
Page 7: Plumbing Connection
PLUMBING CONNECTION Typical plumbing installation Raw water to outside faucets water in Check local codes for minimum run between unit and water heater Conditioned water in Triton Bypass Valve Cold IMPORTANT: Brass or Plastic yoke assembly (not shown) is required to connect piping to the bypass valve and is available in either NPT or solvent. -
Page 8: Drain Line Connection
DRAIN LINE CONNECTION Drain elbow Drain line Locking clip Locking clip Air gap CAUTION: Never connect drain line directly into drain, sewer line or trap. Always allow an air gap of at least 25mm (1 inch) or 2 pipe diameters between the drain line and waste water to prevent the possibility of sewage being back siphoned. -
Page 9: Bypass Valve Operation
BYPASS VALVE OPERATION The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance. The 1" full flow bypass valve incorporates four positions including a diagnostic position that allows service personnel to work on a pressurized system while still providing untreated bypass water to the facility or residence. - Page 10 BYPASS VALVE ILLUSTRATIONS FIGURE 1. FIGURE 2. NORMAL OPERATION BYPASS OPERATION Treated Supply Supply Supply water exits water enters water exits water enters FIGURE 3. FIGURE 4. DIAGNOSTIC MODE SHUT OFF MODE POSITION Supply Supply No water Supplywater is shut off water exits water enters exits...
- Page 11 If, upon factory inspection, the control valve body or PC board is found to be defective, WaterTech Industries will furnish repair or replacement (at WTI option) of the control valve body and/or the PC board. All internal mechanical components are warranted from manufacturers defect for a period of five (5) years from the date of installation.
- Page 12 The registered owner must contact Water Tech for return instructions and return the defective component, freight prepaid, with proof-of-purchase, within the applicable warranty period. PRODUCT MUST BE REGISTERED TO ACTIVATE WARRANTY VISIT WWW.WATERTECH.COM OR CALL 469-521-1180 241 International Parkway #280 Flower Mound, TX 75022...
