Summary of Contents for WaterTech Infinity Protector INF-PRO1
- Page 1 INSTALLATION & OPERATION MANUAL CERTIFIED WATE R PROTECTION...

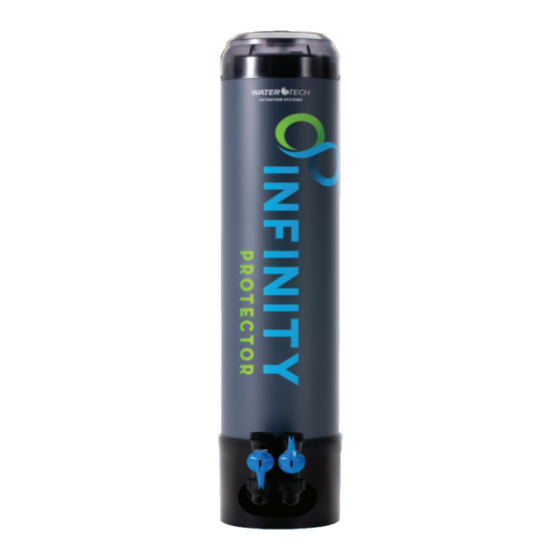

- Page 2 INFINITY PROTECTOR PRODUCT FEATURES & PRECAUTIONS MODEL: INF-PRO1 Certified Safety & Performance to Reduce: Also Addresses Chlorine & Chloramines Lead Pharmaceuticals & Contaminants PFAS (PFOA/PFOS) Volatile Organic Compounds (VOCs) Sediment Cysts (Giardia & Crypto) *Internal data only. Level of reduction has not been verified by IAPMO R&T PRECAUTIONS Filter is only to be used with cold water.
-
Page 3: Where To Install
INSTALLATION OF INFINITY WHERE TO INSTALL CITY WATER SERVICE CITY WATER INLET WATER METER WELL WATER PRESSURE SERVICE TANK RELIEF VALVE MUST BE INSTALLED PUMP WELL INLET... - Page 4 INSTALLATION OF INFINITY PRODUCTS & PARTS DIAGRAM PARTS Filter housing (10-00-001) Bottom Inlet/Outlet cap assembly (10-00-002) Vertical elbow (10-00-003) 3/8” PEX Drain valve assembly with shut-off (10-00-004) Flow Meter Assembly (10-00-005) Bypass manifold (10-00-006) Straight or 90-degree Angled In/Out 1” MNPT plumbing connectors Connection to (10-00-007) Power Supply...
- Page 5 INSTALLATION OF INFINITY SIMPLE ASSEMBLY INSTRUCTIONS NOTE: Additional parts box inside filter housing tank. STEP 1 STEP 2 STEP 3 Connect #3 to #2 on the bottom of the Filter Housing #1. Connect #5 to #3; Flow Meter Assembly Connect #6 Bypass to #5 HAND TIGHTEN ONLY should be placed on the Outlet Side.
-
Page 6: Filter Cartridge Installation
INSTALLATION OF INFINITY FILTER CARTRIDGE INSTALLATION STEP 1 STEP 2 STEP 3 Push down the top cap with both hands. Remove the retaining ring by carefully grasping the handle Remove the Top Cap from the housing assembly by pulling and pulling inward, then upward. The retaining ring should the cap out of the top of the tank, by lifting up on the top slide completely out of the groove. -
Page 7: Filter Cartridge Replacement
FILTER CARTRIDGE REPLACEMENT Easy to understand LED Filter Replacement Notifications The Real-time Dynamic LED System on the Umbrella Cap monitors water and ow rate and provides a visual color-coded noti cation, letting you know when the lter has reached certi ed capacity level at 100,000 gallons and to Replace the Filter. - Page 8 FILTER CARTRIDGE NO TOOLS REPLACEMENT REQUIRED STEP 1 STEP 2 STEP 3 1. Remove Umbrella Cap on the top of the vessel. Replace Turn off the water supply to the system by shutting off the Install a 3/8” PEX tubing hose to the provided inlet and outlet valves on the bypass.
- Page 9 FILTER CARTRIDGE NO TOOLS REPLACEMENT REQUIRED STEP 13 STEP 14 STEP 15 Press down on the filter cartridge so that the double O-ring Reposition the Top Cap into its original location. Reattach the top tank Snap Ring. seal moves into place within the bottom, center opening. STEP 16 STEP 17 STEP 18...
-
Page 10: Specifications
CERTIFIED WATER FILTER SYSTEM SPECIFICATIONS SIZE & NAME AND PEAK FLOW & CHLORINE/CHLORAMINE PRESSURE DROP MICRON RATED CAPACITY & FLOW RATE PART NUMBER % REDUCTION OF LEAD TASTE AND ODOR REDUCTION CAPACITY (*) SPEC RATING >300,000 gallons @ 15 GPM (1,135,533 Liters @ 56.8 lpm) with greater than Lead Reduction and PFOA/PFOS 8 GPM (30.2lpm) @... -
Page 11: Product Warranty Registration
4. WaterTech assumes no liability for the determination of the proper equipment necessary to meet your requirements, and we do not authorize others to assume such obligations for us. 5. WaterTech assumes no liability and extend no warranties, expressed or implied, for the use of this product with a non-potable water source or a water source which does not meet the conditions for use described in the owner’s guide or performance data sheet for the product. - Page 12 WaterTech 800 Freeport Pkwy, #150 | Coppell, TX 75019 469-521-1180 CustomerSupport@WaterTech.com...
