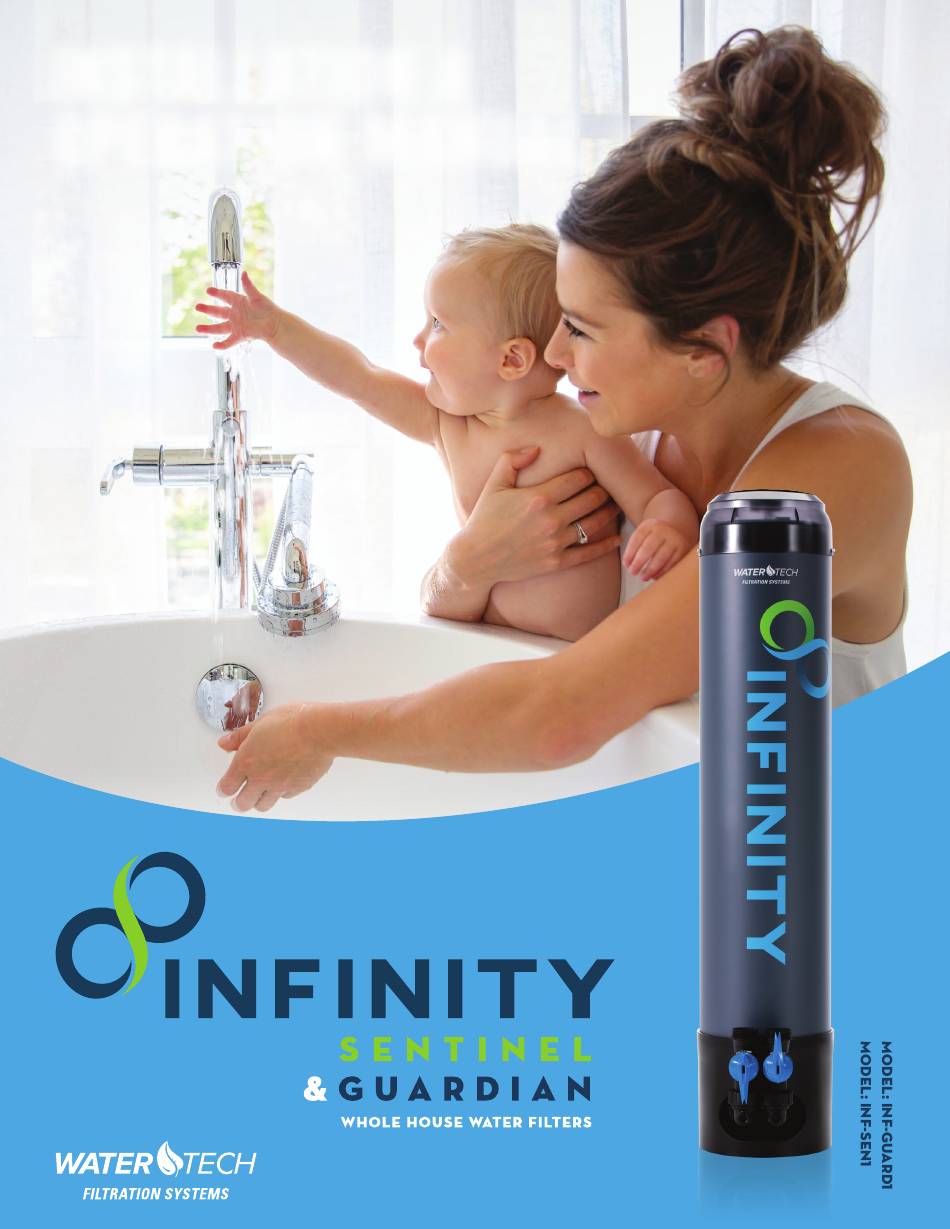

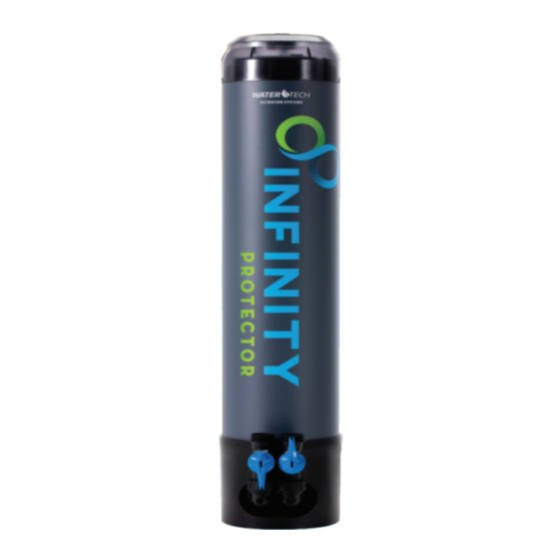

- Page 1 INSTALLATION & OPERATION MANUAL...
- Page 2 INFINITY SENTINEL & GUARDIAN PRODUCT FEATURES & PRECAUTIONS MODEL: INF-SEN1 MODEL: INF-GUARD1 SENTINEL Addresses: GUARDIAN Addresses: Sediment Sediment Volatile Organic Compounds (VOC’s) Volatile Organic Compounds (VOC’s) Trihalomethane Trihalomethane Chlorine Taste & Odor Chlorine Taste & Odor Chloramines Pharmaceuiticals PRECAUTIONS Filter is only to be used with cold water.
-
Page 3: Where To Install
INSTALLATION OF INFINITY WHERE TO INSTALL CITY WATER SERVICE CITY WATER INLET WATER METER WELL WATER PRESSURE SERVICE TANK RELIEF VALVE MUST BE INSTALLED PUMP WELL INLET... - Page 4 1” MNPT plumbing connectors (10-00-007) Umbrella Cap (10-00-009) Top Cap (10-00-010) Retaining Ring (10-00-011) Replacement Filter (INF-SEN1-FX) (INF-GUARD1-FX) IMPORTANT: Bypass Orientation INLET OUTLET Flow direction arrows on bypass are incorrect for this filter application. Plumb unit opposite of arrows. TEFLON TAPE THREADS Do Not Overtighten The system and installation must comply with state and local laws and regulations.
- Page 5 INSTALLATION OF INFINITY SIMPLE ASSEMBLY INSTRUCTIONS NOTE: Additional parts box inside filter housing tank. STEP 1 STEP 2 STEP 4 OPTION A Connect #3 to #2 on the bottom of the Filter Housing #1. Connect #6 Bypass to #5 Use #7 (Straight In/Out 1” MNPT) for HAND TIGHTEN ONLY HAND TIGHTEN ONLY connecting your plumbing to the system.
-
Page 6: Filter Cartridge Installation
INSTALLATION OF INFINITY FILTER CARTRIDGE INSTALLATION STEP 1 STEP 2 STEP 3 Push down the top cap with both hands. Remove the retaining ring by carefully grasping the handle Remove the Top Cap from the housing assembly by pulling and pulling inward, then upward. The retaining ring should the cap out of the top of the tank, by lifting up on the top slide completely out of the groove. -
Page 7: Filter Cartridge Replacement
FILTER CARTRIDGE REPLACEMENT NOTE: Due to unknown water quality and water usage, it is recommended to replace filter annually for a household of 4 people. SENTINEL GUARDIAN Filter Replacement Filter Replacement Part Number: Part Numbers: INF-SEN1-FX INF-GUARD1-FX... - Page 8 FILTER CARTRIDGE NO TOOLS REPLACEMENT REQUIRED STEP 1 STEP 2 Turn off the water supply to the system by shutting off the Install a 3/8” PEX tubing hose to the provided inlet and outlet valves on the bypass. John Guest fitting and shut-off that connects to the ®...
- Page 9 FILTER CARTRIDGE NO TOOLS REPLACEMENT REQUIRED STEP 12 STEP 13 STEP 14 Press down on the filter cartridge so that the double O-ring Reposition the Top Cap into its original location. Reattach the top tank Snap Ring. seal moves into place within the bottom, center opening. STEP 15 STEP 16 STEP 17...
- Page 10 Nominal 3 micron rated filter to treat >250,000 gallons (946,353 Liters) of water @ 15 gpm (56.78 8” x 40”, 3.0 5 psid @ 15 GPM INF-SEN1 LPM) with greater than 90% reduction, estimated capacity using 2ppm of free chlorine. Infinity Guardian Nominal 3 micron Chloramine rated filter to treat >50,000 gallons (189,271 Liters) of water @ 7...
-
Page 11: Warranty
4. WaterTech assumes no liability for the determination of the proper equipment necessary to meet your requirements, and we do not authorize others to assume such obligations for us. 5. WaterTech assumes no liability and extend no warranties, expressed or implied, for the use of this product with a non-potable water source or a water source which does not meet the conditions for use described in Section 8.a (see below). - Page 12 WaterTech 800 Freeport Pkwy, #150 | Coppell, TX 75019 469-521-1180 CustomerSupport@WaterTech.com...
