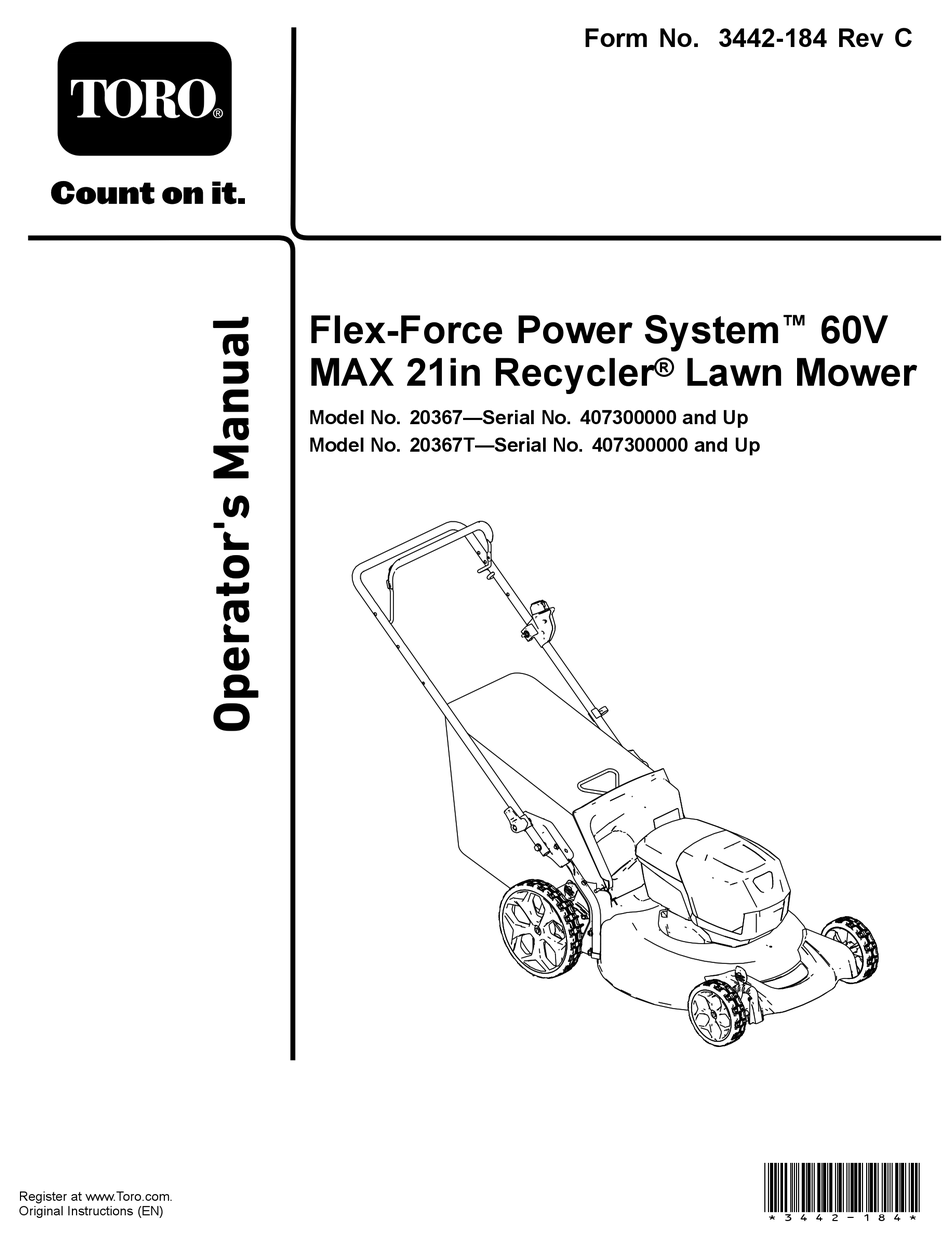

- Page 1 Form No. 3442-184 Rev C Flex-Force Power System ™ MAX 21in Recycler ® Lawn Mower Model No. 20367—Serial No. 407300000 and Up Model No. 20367T—Serial No. 407300000 and Up *3442-184* Register at www.Toro.com. Original Instructions (EN)
- Page 2 It is not designed for cutting brush or for agricultural uses. It is designed to use Toro Flex-Force lithium-ion battery pack Models g000502 Figure 2 88640 (provided with Model 20367) and 88660 or Safety-alert symbol 88675;...
-
Page 3: Table Of Contents
Replace any damaged or unreadable labels. Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire. Plugging the battery charger into an outlet that is not 120 V can cause a fire or electric shock. - Page 4 Charge the battery pack with only the battery unattended or before changing accessories. charger specified by Toro. A charger suitable for 1 type of battery pack may create a risk of fire Do not force the machine—Allow the machine to when used with another battery pack.
- Page 5 68°C (154°F) or incinerate before adjusting, servicing, cleaning, or storing it. Replace the battery pack with a genuine Toro the machine. battery pack only; using another type of battery Do not attempt to repair the machine except as pack may cause a fire or explosion.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. Model 88640 decal140-3811 140-3811 1. Warning—read the 4. Cutting/dismember Operator's Manual. - Page 7 decal137-9463 137-9463 1. The battery pack is charging. 2. The battery pack is fully charged. 3. The battery pack is over or under the appropriate temperature range. 4. Battery pack charging fault decal94-8072 94-8072 decal137-9461 137-9461 1. Battery charge status decal139-8986 139-8986...
- Page 8 decal144-3175 144-3175 1. Read the Operator’s 3. To shut off the machine, Manual. release the bar. 2. To start the machine, squeeze the bar to the handle and press the button.
-
Page 9: Setup
Setup Important: The battery pack is not fully charged when it is purchased. Before using the machine for the first time, refer to Charging the Battery Pack (page 16). Mounting the Battery Assembling the Grass Bag Charger (Optional) No Parts Required Parts needed for this procedure: Procedure Mounting hardware (not included) -
Page 10: Unfolding The Handle
Unfolding the Handle No Parts Required Procedure WARNING Unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cable(s) when folding or unfolding the handle. • Ensure that the cable(s) are routed to the outside of the handle. •... -
Page 11: Product Overview
Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety... -
Page 12: Before Operation
Operation Before Operation Installing the Battery Pack Important: Use the battery pack only in temperatures that are within the appropriate range; refer Specifications (page 11). Make sure that the vents on the battery are clear of any dust and debris. Lift up the battery-compartment lid (A of Figure Line up the cavity in the battery pack with the tongue on the machine and slide the battery pack into the... -
Page 13: Adjusting The Cutting Height
Adjusting the Cutting Height WARNING Adjusting the height-of-cut could bring your hands into contact with a moving blade and result in serious injury. • Shut off the motor, remove the battery, and wait for all moving parts to stop before adjusting the cutting height. -
Page 14: During Operation
During Operation Starting the Machine Ensure that the battery pack is charged and installed in the machine; refer to Installing the Battery Pack (page 12). Insert the electric-start button into the electric starter switch (A of Figure 10). Squeeze the blade-control bar and hold it to the handle (B of Figure 10). -
Page 15: Shutting Off The Machine
• For best performance, install a new Toro blade before the cutting season begins or when necessary. Cutting Grass •... -
Page 16: After Operation
After Operation Green Battery pack is charging blinking Green Battery pack is charged Charging the Battery Pack Battery pack and/or battery charger is over or under the appropriate temperature range Important: The battery pack is not fully charged Battery pack charging fault* when you purchase it. -
Page 17: Cleaning Under The Machine
Cleaning under the Machine Folding the Handle Service Interval: After each use WARNING Folding or unfolding the handle improperly Cleaning under the Machine can damage the cables, causing an unsafe For best results, clean under the machine soon after operating condition. you have completed mowing. -
Page 18: Storing The Machine In The Vertical-Stow Position
Storing the Machine in the Vertical-Stow Position You can store your machine in the vertical position to minimize storage space. WARNING Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. -
Page 19: Maintenance
Maintenance Remove the electric-start button and battery pack from the machine before maintaining or cleaning the machine. Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. Use only the manufacturer’s recommended replacement parts and accessories. -
Page 20: Preparing The Battery Pack For Recycling
If you are located outside of the US and Canada, please contact your authorized • Do not store the machine with the battery pack Toro distributor. installed. • Clean all foreign material from the product. • When not in use, store the machine, electric-start button, battery pack, and battery charger out of the reach of children. -
Page 21: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The machine does not start. - Page 22 Problem Possible Cause Corrective Action The machine is producing a beeping 1. The battery pack is not charged. 1. Remove the battery pack from the sound. machine and charge it. 2. The machine is in an unsafe position 2. Ensure that the machine is not at an for operation.
- Page 23 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
