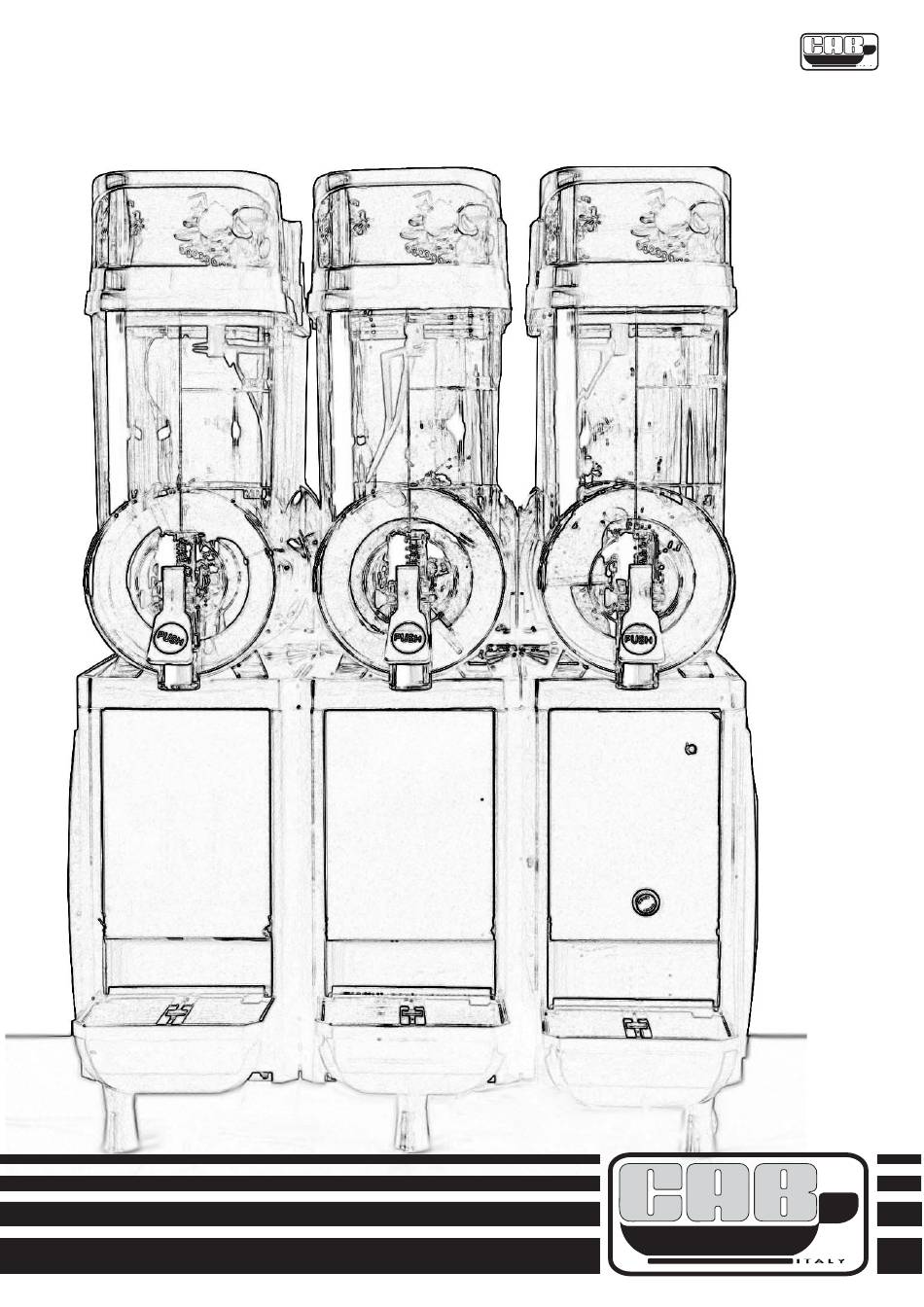

- Page 1 SERVICE MANUAL MODEL Manual n° 151010 Ott 2010 FABY 3 http:\\www .cabspa.com - Mail: info@cabspa.com - P.o. Box +39 081 5261111 C.A.B. - Via Campana, 233 - Pozzuoli (NA) 80078 - I T A L Y S.p.A.
- Page 2 INSTRUCTION MANUAL Before using the machine please read this manual carefully. Please note that non-compliance to the manual releases the manufacturer from any responsibility. The machine must not be used for purposes other than the ones shown in this manual. Any improper use of the machine will nullify warranty conditions.
- Page 3 GENERAL USE OF THE MACHINE Pic. 4 Pic. 5 8 inches 8 inches Place machine on a flat surface. Leave at least 8 inches on all sides for air circulation to avoid overheating. Optimum room temperature range: 77° F - 90° F. The slush machines are equipped with air-cooled condenser and require correct ventilation.
-
Page 4: Installation Of The Machine
INSTALLATION OF THE MACHINE Pic. 8 Pic. 9 Pic. 10 S L U S H ADJUSTMENT W H E E L N O R M A L M E D I U M M A X I M U M Adjustment for slush consistency Remove the mini door for slush adjustment (see pict. - Page 5 INSTALLATION OF THE MACHINE Pic. 12 Pic. 11 Pic. 13 lift the upper lid gently and put it on one side of the machines drip tray panel by using the appropriate hook (see pict. 11, 12 & 13). Never turn machine on without product in bowl or with only water in bowl. Pic.
-
Page 6: Control Panel
CONTROL PANEL To operate on the Pic. 17 machine's switches open the cover for control panel with the lock key. After settings of the m a c h i n e ' s d e s i r e d functions please lock the panel and keep the key in a safe place (see... -
Page 7: Cleaning Operation
CLEANING OPERATION Pic. 24 Pic. 25 Turn power off. Drain product. Fill bowl with tepid water, and wait 15 minutes (see Pict.24 & 25). To continue cleaning operation empty the bowl again. For an easy removal of the bowl. Please follow instructions shown in Pictures 26 &... - Page 8 CLEANING OPERATION Pic. 28 Pic. 29 To remove spiral blade put fingers on the plate part of the spiral and pull it onwards gently as shown in Pict. 28 & 29. Pic. 30 Pic. 31 Once the spiral blade is removed Remove bowl gasket from the back part completely remove the suction cap of the evaporator tube (see Pict.
- Page 9 CLEANING OPERATION How to remove and clean the tap components Pic. 32 Pic. 33 1 - Pull out the pin for handle fixing (see 2 - Pull the handle from its place (see Pict. 32). Pict. 33). Pic. 34 Pic. 35 3 - Unthread the main tap pin by pulling 4 - Repeat the same operation for the it downwards (see Pict.34)
- Page 10 REASSEMBLY OF THE COMPONENTS Reassembly of the parts removed during the cleaning. Before reassebling of parts, clean the evaporapor tube and drip trays & grids without using abrasive cleaners. Before reassemblyng the bowl gasket rinse it with water in order to facilitate the assembly of the bowl.
- Page 11 REASSEMBLY OF THE TAP Before reassembling of the tap components lubricate the tap siege as indicated in Pict. 41 and lubricate the seals as indicated in Pict.43. . Pic. 41 Pic. 42 Insert the tap spring and tap pin as indicated in Pic. 41 and 42. When inserting the main tap pin please Pic.
- Page 12 REASSEMBLY OF THE BOWL ATTENTION . Before reassemble of the bowl be sure that the bowl gasket is still in its position. If necessary fix again the bowl gasket without removing the spiral blade. Pic. 46 Pic. 47 Insert the bowl making sure that the back hole of the bowl is fixed perfectly in the bowl gasket site.
-
Page 13: General Maintenance
GENERAL MAINTENANCE To obtain the best performance of the machine it is important to clean the external filter every day. Remove the filter and clean it as shown in Pict. 49. Although the exinsting of the external filter do not forget to clean the condenser periodically (every month is the optimal time). - Page 14 FIX CLAMPS and HANDLE LOCK FOR LID HOW TO FIX THE CLAMPS Screw the small clumping plates on the outsides of the two bowls (see Pict. 56). Fix clamps as shown in Pict. 59 & 60. Close the clamp with the lock . Pic.
- Page 15 GENERAL EXPLOSE...
- Page 16 GEAR MOTOR EXPLOSE...
-
Page 17: Spare Parts List
6.16 F083/9 START CONDENSER x Compress. Faby3 115V/60HZ 2.00 F304/N/1 COMPLETE SPIRAL BLACK 6.17 F081/7 RELAIS x Compress. Faby 3 115V/60Hz 2.05 F026/2 SUCTION CAP GASKET NEW 6.18 F082/8 CLIXON x Compre ss. Faby 3 115V/60Hz FEV4N COMPLETE EVAPORATOR BLACK SUPPORT 6.19... -
Page 18: Electrical Table
ELECTRICAL TABLE... -
Page 19: Troubleshooting
TROUBLESHOOTING FOR TECHNICIAN USE MECHANICAL PART PLUG IS NOT IN INSERT PLUG MACHINE THE MACHINE IS NOT ON SWITCH MAIN POWER SWITCH ON NOT STARTING: FEEDER CABLE IS BROKEN REPLACE FEEDER CABLE RED LIGHT ON CONTROL PANEL IS ON SEE PAG. 14 FUSE 16A IS BURNT REPLACE FUSE 16A MAIN POWER SWITCH IS BROKEN... - Page 20 GENERAL INDEX Introduction Description pag. 1 Shipment and transit pag. 1 General use of the machine pag. 2 Installation of the machine Adjustment for slush consistency pag. 3 Lift upper lid pag. 4 Pre-mix product and refill the machine pag. 4 Control panel pag.
- Page 21 NOTE:...
