  • Page 1 Operator's Manual PCB Separator MAESTRO 2M...
  • Page 2 Edition: 10/2017 - Part No. 9008885 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instructions ............................ 4 Safety Marking ............................5 Environment ............................. 5 Specification ............................6 Installation .............................. 7 Unpacking and Setting-up the Device ...................... 7 Connecting the Device ..........................7 3.2.1 Earthing Connection ...........................

  • Page 4: Introduction

    Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws your attention to an exceptionally grave, impending danger to your health or life. Warning! Indicates a hazardous situation that could lead to injuries or material damage. Attention! Draws attention to possible dangers, material damage or loss of quality.

  • Page 5: Safety Marking

    Introduction Always have service work done in a qualified workshop, where the personnel have the technical knowledge and • tools required to do the necessary work. • There are various warning stickers on the device. They draw your attention to dangers. Warning stickers must therefore not be removed, as then you and other people cannot be aware of dangers and may be injured.

  • Page 6: Specification

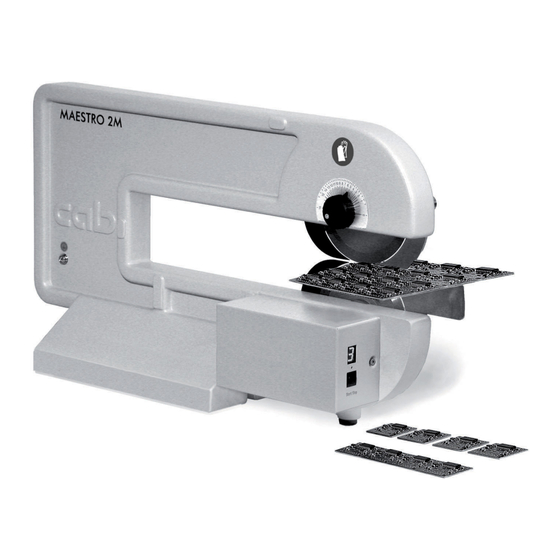

    The lower blade of the MAESTRO 2M is motor driven. The PCB is placed before the blades which then take hold of the PCB, drawing it between them and thereby separating it. The machine can be used for a long period of time without tiring the operator, and is therefore particularly suitable for processing large quantities of PCB's.

  • Page 7: Installation

    Installation Unpacking and Setting-up the Device  Lift the device out of the box.  Check device for damage which may have occurred during transport.  Set up device on a level surface.  Check delivery for completeness. Contents of delivery: •...

  • Page 8: Height Adjustment Of The Upper Blade

    Installation Height Adjustment of the Upper Blade Notice! To avoid possible damage on the blades during transport the upper blade (4) is fixed in the "Park position" so that there is a maximum distance to the lower blade.  Set the upper blade into the working position before switching on the machine. Fig. 4 Height adjustment of the upper blade There is a scale (1) on the frame where you can see the height adjustment in steps of 1/10 mm.

  • Page 9: Adjustment Of The Stop Of The Upper Blade

    Installation Adjustment of the Stop of the Upper Blade Notice! The lower stop of the upper blade adjustment is already adjusted by delivery.  After a long operation time, while working at strongly varying temperatures or else after replacing a blade, it is recommended to re-adjust the lower stop.

  • Page 10: Operation

    Operation Switching on the Machine  Switch the machine on. The mains power switch (1) is situated at the rear of the machine in the mains module. After switching on the display (2) of the control panel shows "0". Fig. 7 Operation Setting the Speed of Separation Notice!

  • Page 11: Error Treatment

    Operation Error Treatment The device has an overload protection which will switch the motor off. Error Message Cause Remedy Display "F" Overload The cutter drive will perform a short backward movement and will then switch off within 0.5 s of •...

  • Page 12: Blade Replacement

    Blade Replacement Danger!  Unplug power cord before starting maintenance operation. Warning! Risk of hand injury !  Wear protective gloves while handling the blades. Fig. 9 Blade replacement Replacement of the Upper Blade Spare Part: 8930509.001 Circular Blade 1. Raise the upper blade to the Park position. 2.

  • Page 13: Licences

    Description: PCB Separator Device: MAESTRO 2M Applied EU-Directives and Standards: Directive 2006/42/EC on machinery • EN ISO 12100:2010 •...

  • Page 14: Fcc

    Licences NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 15: Index

    Index Circular blade ........12 Connecting .........7 Contents of delivery ......7 Earthing ..........7 Environment ........4 Error messages ........ 11 Error treatment ......... 11 Important information......4 Intended use ........4 Lower Blade Replacement .......12 Power supply ........4 Power switch ........10 Protective gloves ......10, 12 Recycling ..........5 Replacement blades ......12 Safety instructions ......4...
