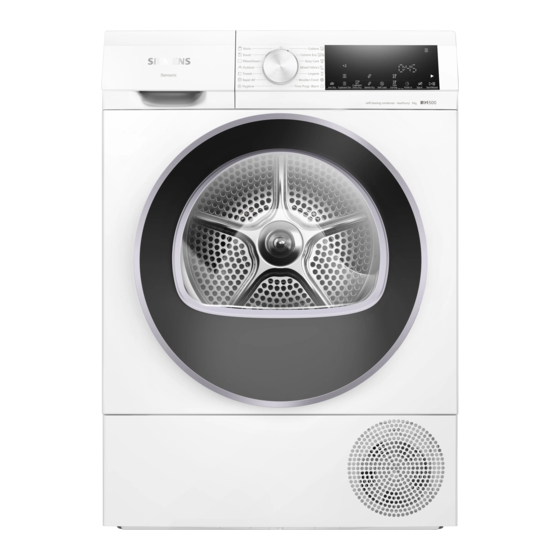

- Page 1 Tumble dryer WQ45G200HK User manual and installation instructions Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 9 Programmes ...... 26 1.1 General information.... 4 9.1 Automatic programmes... 26 1.2 Intended use...... 4 9.2 Timed programmes .... 27 1.3 Restriction on user group.. 4 10 Accessories...... 28 1.4 Safe installation ...... - Page 3 15.3 Running the basic appli- ance care programme .. 36 15.4 Running the intensive appli- ance care programme .. 37 16 Cleaning and servicing ... 38 16.1 Tips on cleaning and care .. 38 16.2 Moisture sensor..... 38 16.3 Condensation container fil- ter ..........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶...
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. ▶ Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. ▶ Keep the area around the appliance clean during operation. WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en ▶ Rinse the laundry thoroughly with warm water and detergent be- fore drying it in the machine. ▶ Do not use the appliance if industrial chemicals have been used to clean the laundry beforehand. WARNING ‒ Risk of fire! If drying is interrupted early, the laundry is not cooled sufficiently and may ignite. - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact ATTENTION! with the appliance. The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de-... -
Page 12: Energy Saving Mode
en Installation and connection After drying, clean the fluff filter 4.2 Scope of delivery → Page 30. After unpacking all parts, check for a If the fluff filter is dirty, this reduces any damage in transit and complete- the air flow in the appliance, ex- ness of the delivery. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location In a washer-dryer Only use the ori- ATTENTION! stack ginal connection If the appliance is tilted at an angle set from the greater than 40°, residual water may dryer manufac- leak out of the appliance and cause turer when set-... - Page 14 en Installation and connection hose to drain away excess condens- Pull out the condensation hose ation directly into the waste water from the connecting piece. system. Notes ¡ Operate this appliance using the water drain hose provided. If you connect the water drain hose → Page 14, you do not have to regularly empty the condensation container → Page 32.
- Page 15 Installation and connection en Push the water drain hose as far Insert the stopper into the recess as it will go into the connecting in the top. piece. Insert the condensation container Empty the condensation container → Page 32. → Page 32. Connect the appliance to the water outlet.
-
Page 16: Aligning The Appliance
en Installation and connection 4.5 Aligning the appliance Note: You can use the Y-distrib- In order to reduce vibrations and utor → Page 28 noises, align the appliance correctly. to connect the To align the appliance, turn the ap- ▶ water drain hose pliance feet. Check that the appli- of an additional ance is level using a spirit level. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Condensation container → Page 32 Fluff filter → Page 30... -
Page 18: Control Panel
en Familiarising yourself with your appliance 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 26 Programme selector → Page 29 Display → Page 19 Buttons → Page 22... -
Page 19: Display
Display en 6 Display The display shows the current settings, options or relevant information. Example: Display Display Designation Description 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. 1:25 Timed programme The timed programme is set. → "Timed programmes", Page 27 Recommended The maximum load capacity for the selec-... -
Page 20: Buttons
en Display Display Designation Description Dryness level: Iron The dryness level is activated. → "Buttons", Page 23 Dryness level: The dryness level is activated. Cupboard Dry → "Buttons", Page 23 Dryness level: The dryness level is activated. Cupboard Dry → "Buttons", Page 22 Plus Dryness level ad- The adjusted dryness level is activated. - Page 21 Display en Display Designation Description Dryness level: Programme status Cupboard Dry Anti-crease Programme status Pause Programme status End of pro- Programme status gramme Example...
- Page 22 en Buttons 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start/Reload ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause 3 sec. ¡ Activate Activate or deactivate the childproof lock. ¡ Deactivate Disable the control panel to prevent unwanted or accidental operation.
- Page 23 Buttons en Button Selection Description Cupboard Dry Cupboard Dry ¡ Selecting Cupboard ¡ Dry activates the dry- ¡ +1 ness level. ¡ +2 The dryness level ¡ +3 defines how damp or dry the laundry is after the programme ends. → "Dryness level", Page 25 ¡...
- Page 24 en Buttons Button Selection Description Finish in ¡ Programme end time ¡ Set the programme end time. ¡ Programme duration The programme dura- tion is already in- cluded in the set num- ber of hours. Once the programme has started, the pro- gramme duration is displayed.
-
Page 25: Changing The Dryness Level
Dryness level en 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Cupboard Multi-layered, thick laundry The laundry is dry. Extra Dry that does not dry readily. -
Page 26: Programmes
en Programmes 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 27: Timed Programmes
Programmes en Programme Description Max. load (kg) Pillow/Down Dry pillows stuffed with down or synthetic One pillow fibres. Note: Once the programme has ended, shake the pillows to distribute the stuffing and eliminate any pockets of moisture. Shirts Suitable for shirts and blouses made of cotton, linen, synthetics or blended fab- rics. -
Page 28: Accessories
en Accessories 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 46. Order number Connection kit To save space, stack the WZ27410 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 29: Laundry
Laundry en 12.2 Setting a programme 11 Laundry Turn the programme selector and set the required programme. 11.1 Preparing the laundry → "Programmes", Page 26 If required, adjust the programme ATTENTION! settings. Objects remaining in the laundry may damage the laundry and the drum. 12.3 Loading laundry Remove all items from any pock- ▶... -
Page 30: Cancelling The Programme
en operation The cooling process starts auto- Requirements matically after approximately 30 ¡ The display shows the following seconds and cools down the laun- after drying: "End" dry while the drum is rotating. If ¡ or the display shows the following you want to avoid or cancel the during operation: cooling process, open the door. - Page 31 operation en Disconnect the two-part fluff filter. Clean the two fluff filters thoroughly under warm, running water and then dry them off. Open the two fluff filters. Close the two fluff filters and put them together. Remove the fluff. Insert the two-part fluff filter. Close the door.
-
Page 32: Condensation Container
en operation Empty the condensation container. 12.10 Condensation con- tainer Condensation forms during drying, which your appliance uses for auto- matic cleaning. By default, the con- densation is collected in the appli- ance's condensation container. Note: Operate this appliance using the water drain hose provided. If you connect the water drain hose → Page 14, you do not have to regu- larly empty the condensation con-... -
Page 33: Childproof Lock
Childproof lock en 13 Childproof lock Secure your appliance against being operated unintentionally using the controls. 13.1 Activating the childproof lock Press and hold the two 3 sec. ▶ buttons for approx. 3 seconds. a The display shows a The control elements are locked. a The childproof lock remains active even after the appliance has been switched off and in the event of a... -
Page 34: Basic Settings
en Basic settings 14 Basic settings You can configure the basic settings for your appliance to meet your needs. 14.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 35: Changing The Basic Set- Tings
Appliance care en Requirements 14.2 Changing the basic set- ¡ The drum is empty. tings ¡ The appliance is switched off. Set the programme selector to po- Clean the fluff filter. sition 1. → "Cleaning the fluff filter", Page 30 Pull out the condensation con- tainer horizontally and empty it. -
Page 36: Calling Up The Appliance Care Programme
en Appliance care Clean the filter in the condensation peatedly until you have run the ba- container. sic appliance care programme through to the end. 15.2 Calling up the appliance Requirements care programme ¡ The appliance care programme is ready. Requirement: The appliance care → "Preparing for appliance care", programme is ready. -
Page 37: Running The Intensive Appli- Ance Care Programme
Appliance care en ATTENTION! The functionality of 15.4 Running the intensive the appliance may be impaired if appliance care pro- you use the wrong quantity of fab- gramme ric softener, detergent, care product or cleaning agent. You can run the intensive appliance Follow the dosage recommenda- ▶... -
Page 38: Cleaning And Servicing
en Cleaning and servicing a The appliance care programme 16.2 Moisture sensor continues. The moisture sensor in this appliance a "End" appears on the display and measures how damp the laundry is a signal tone sounds once the ap- during the drying cycle. The appli- pliance care programme has ance changes the duration of the ended. -
Page 39: Condensation Container Filter
Cleaning and servicing en Remove the filter. 16.3 Condensation container filter During drying, fluff from the laundry gets into the condensation. The filter in the condensation container pro- tects the appliance from fluff. Clean the filter for the condensation tank. The filter is cleaned automatically when the condensation container is emptied. -
Page 40: Troubleshooting
en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting Appliance paused, but Cooling process active. the drum is rotating. Not a fault – no action required. ▶ Creasing. The load is too large. Observe the maximum load capacity of the ▶ → "Programmes", Page 26. The laundry lies in the drum for too long after drying. Remove the laundry from the drum as soon as the drying programme has finished.
- Page 42 en Troubleshooting Fault Cause and troubleshooting Condensation in the Ensure that the water drain hose is connected cor- ▶ condensation tank rectly. even though the water → "Connecting the water drain hose", Page 14 drain hose is connec- ted. The programme does Childproof lock is activated. not start.
- Page 43 Troubleshooting en Fault Cause and troubleshooting Automatic self-cleaning function rinses the appliance's heat exchanger. Not a fault. Do not pull out the condensation tank. Do not cancel the programme. Water is leaking from Appliance is not correctly aligned. the appliance. → "Aligning the appliance", Page 16 ▶...
- Page 44 en Troubleshooting Fault Cause and troubleshooting Odours have formed Stubborn dirt in the appliance or an extended appli- in the appliance. ance downtime of more than one month. Run the intensive appliance care programme. ▶ → "Appliance care", Page 35...
-
Page 45: Transportation, Storage And Disposal
Transportation, storage and disposal en Empty the condensation container 18 Transportation, stor- → Page 32. age and disposal Insert the condensation container → Page 32. Disconnect the appliance's mains 18.1 Preparing the appliance plug from the power supply. for transportation a The appliance is now ready to be transported. -
Page 46: Customer Service
en Customer Service Information about current disposal ¡ On the rear of the appliance. methods are available from your Make a note of your appliance's de- specialist dealer or local authority. tails and the Customer Service tele- phone number to find them again This appliance is la- quickly. -
Page 47: Consumption Values
Consumption values en 20 Consumption values The specified values are indicative amount of laundry being loaded, en- only and were determined in accord- vironmental conditions and the activ- ance with the applicable standard ation of additional functions. IEC61121. The expected programme dura- The actual values may deviate from tion/"Ready in"... - Page 48 en Technical data Mains voltage 220-240 V, Ambient temper- ¡ Minimum: 50 Hz ature 5 °C ¡ Maximum: Minimum in- 35 °C stallation protec- tion Length of the 145 cm power cord Nominal power 800 W...
- Page 52 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY siemens-home.bsh-group.cn Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG *9001805485* 9001805485 (021221)
