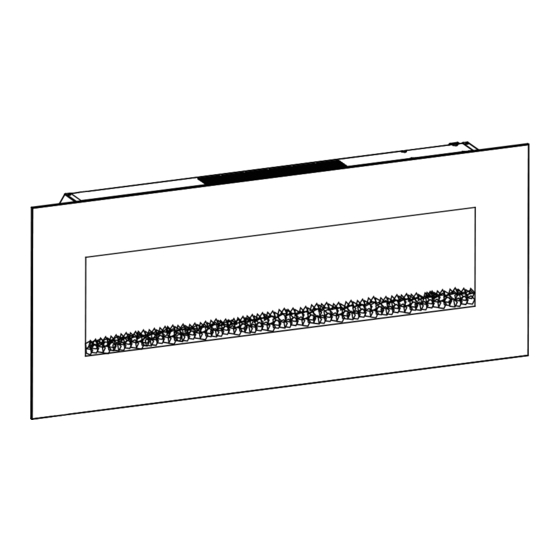

- Page 1 INSTRUCTION MANUAL Electric Wall Mounted Fire This product is only suitable for well insulated spaces or occasional use. www.firedupcorporation.com/manual...
-
Page 2: Table Of Contents
Read ALL the instructions before use. These instructions are for your safety. Please read through them thoroughly before use and retain for future reference. Failure to follow them could cause injury and/or property damage. CONTENTS SECTION 01 Cautions 03-06 Introduction Handling SECTION 02 Unpacking &... -
Page 3: Cautions
CAUTIONS DO’S • Read ALL the instructions before using this product. • Only use this product for its intended use as described in this manual. • Always use the product in accordance with this guide. If in doubt obtain expert advice. •... - Page 4 • Never use aerosols or steam cleaners on or around the fire. • Never route the supply cord under carpeting and never cover the cord with throw rugs, runners, etc. Arrange the cord away from traffic areas and where it will not be tripped over.
- Page 5 IMPORTANT! • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 6 • CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. • This heater is hot when in use. To avoid burns, do not touch hot surfaces such as surfaces around the grille in front of the heater.
-
Page 7: Introduction
INTRODUCTION Thank you for choosing this product. It is designed to meet the most stringent quality, performance, and safety requirements. This guide aims to improve your understand- ing and appreciation of your new product by providing simple and informative instructions. HANDLING Before continuing any further with the installation of this product please read the following:... -
Page 8: Installing The Fire
MOUNTING ON TO A WALL The fire can be mounted to a wall. The following procedure and dimensions are important. Min. 60 cm Min. 600mm Min. 5 cm 24 in. Min. 50mm 2 in. Min. 5 cm Min. 50mm 2 in. Min. - Page 9 Cont... 6. Carefully lift fire and align slot with top bracket 7. Slot fire onto top bracket 8. Align hole on the bottom bracket to the bottom of fire and mark the hole on the wall 9. Drill 6mm diameter hole approximately 35mm deep 10.
-
Page 10: Fuel Bed
Fuel Bed 1. Remove the 4 x screws from the back of the frame 2. Remove the frame 3. Arrange the fuel bed using the logs and crystals provided 4. Replace the frame and screw back into place... -
Page 11: Remote Control & Control Panel
Remote control Power Temperature Up Temperature Down Brightness Heater Time Setting Timer Flame Effect Control panel The control panel can be located as shown. Power Heater Display Temperature Down Temperature Flame Effect ON/OFF Switch... -
Page 12: Operation
OPERATION - Manual On/Off switch must be switched on for the fire to work. The switch is in the ON position when the side with the ‘I’ marking is ‘pressed in’ Brightness setting cannot be changed without the remote control OPERATION - Remote control Ensure the switch is in the ON position before using the remote. - Page 13 Flame effect & colour Pressing the flame effect button will turn the flame off. Pressing the flame effect button again will turn the flame back on. Brightness settings The brightness of the flame can be changed between three settings using the ttin brightness button .
- Page 14 Set day & time To show the day and time, press and hold the time setting button for 2 secs. Press the time setting button again to set the DAY. The DAY will flash on the display. Select the day using the + or - buttons. Press the time setting button again and the HOUR will flash.
- Page 15 Set timers The timer setting allows for two ON/OFF periods (M1 and M2) to be set for each day of the week. Press and hold the timer mode button for 2 secs. to begin setting the timer. The setting for the 1st period ON time (M1) for Monday will be shown.
-
Page 16: Plug Replacement
PLUG REPLACEMENT (for products fitted with BS plug) This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 Amp and approved to BS1362. -
Page 17: Technical Parameters
TECHNICAL PARAMETERS L 193/88 Official Journal of the European Union 21.7.2015 Table 2 Information requirements for electric local space heaters Model identifier(s): EFS0043 Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat out... -
Page 18: Specification, Conformity & Environment
SPECIFICATION Supply Voltage 220-240V~50-60Hz Rated Power 1500-1800W Fuse Rating 13 Amp Class CONFORMITY WITH DIRECTIVES Conforms with relevant European Directives ENVIRONMENTAL PROTECTION • (WEEE) Waste Electrical and Electronic Equipment Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. -
Page 20: Guarantee & Contacts
This product guarantee does not affect your statutory rights. CUSTOMER HELPLINE 03300 882 069 customer.support@firedupcorporation.com Fired Up Corporation Ltd. Fired Up Buildings St Thomas Road www.firedupcorporation.com Huddersfield HD1 3LF...
