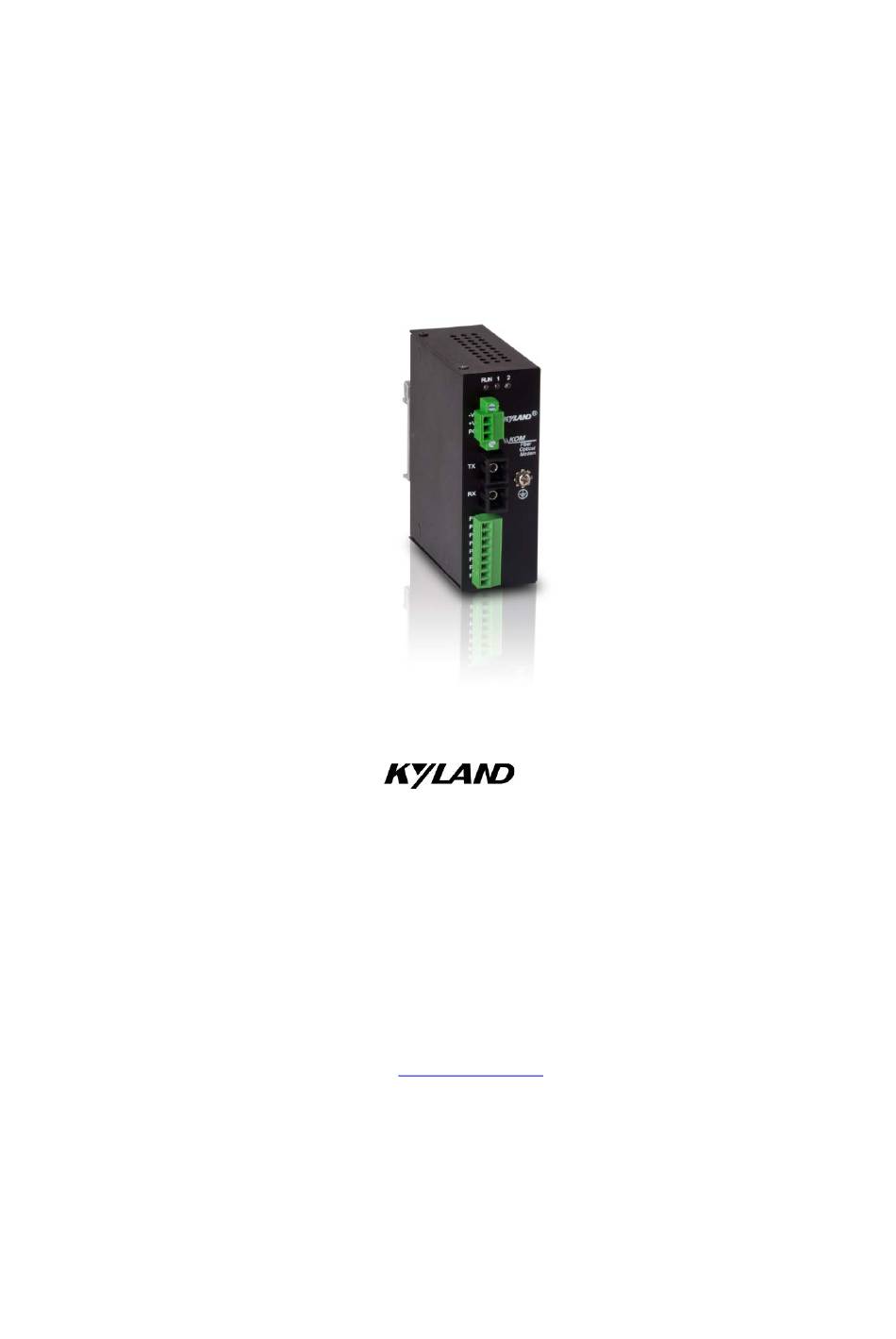

- Page 1 KOM200 Data Media Converter Hardware Installation Manual Kyland Technology Co., LTD. Publication Date: Date: Sep. 2012 Version: V4.1 Customer Service Hotline: (+8610) 88796676 FAX: (+8610) 88796678 Website: http://www.kyland.ru E-mail: support@kyland.ru No.: 1.12.02.2002-1...
- Page 2 KOM200 Data Media Converter Hardware Installation Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as accurate and as updated as possible. This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
- Page 3 Please keep the equipment clean; if necessary, wipe the equipment with soft cotton cloth. In the following cases, please immediately shut down your power supply and contact your Kyland representative: Water gets into the equipment; Equipment damage or shell damage;...
-
Page 4: Table Of Contents
Contents 1 Product Overview ..................4 2 Structure and Interface ................5 2.1 Front Panel .................... 5 3 Mounting ...................... 6 3.1 Dimension Drawing ................6 3.2 Mounting and Dismounting Steps ............6 4 Cable Connection ..................7 4.1 Fiber Port ....................7 4.2 Data Port .................... -
Page 5: Product Overview
Both transmission ends are perfectly insulated, immune to EMI, ground loop interference, and lightning damage. KOM200 series can be installed on a DIN rail. The media converter provides one fiber port and one data port (integrated three-line serial ports). -
Page 6: Structure And Interface
2 Structure and Interface 2.1 Front Panel Figure 1 Front Panel Table 1 Description of Front Panel No. Identifier Description Running LED Data receiving LED Data sending LED Power terminal block, 3-pin 3.81mm-spacing plug-in -v +v PG terminal block TX RX Fiber port P1 P2 P3 P4 P5 P6 P7 Data port (3 serial ports), 8-pin 3.81mm-spacing plug-in... -
Page 7: Mounting
3 Mounting 3.1 Dimension Drawing Figure 2 Dimensions for DIN-Rail Mounting (Unit: mm) 3.2 Mounting and Dismounting Steps Mounting Step 1: Select the mounting position for the device and guarantee adequate space and heat dissipation for it. Step 2: Insert the lower edge of the DIN rail into the bend of the lower hooks of the DIN rail connecting seat. -
Page 8: Cable Connection
Step 2: Push the device downward until the DIN rail is detached from the connecting seat completely. Figure 4 Removing KOM200 from DIN Rail 4 Cable Connection 4.1 Fiber Port The fiber port adopts FC/SC/ST connector. Each fiber port includes one TX port and one RX port, as shown in Figure 5.The fiber port supports... -
Page 9: Data Port
Caution: A laser is used to transmit signals in fiber cables. The laser meets the requirements of level 1 laser products. Routine operation is not harmful to your eyes, but do not look directly at the fiber port. Data Port KOM200 communicates with other... - Page 10 The pin definitions of data port vary with product models. Table 2 shows the pin definitions of KOM200-232/422 data port. Table 2 Pin Definition of KOM200-232/422 Data Port Definition Not used Transmit Data (TXD) of line-2 RS232 serial port...
-
Page 11: Grounding
Receive Data (RXD0) of line-1 RS232 serial port Transmit Data (TXD0) of line-1 RS232 serial port Note: For KOM200-485/232A, line-1 RS232 serial port is used independently, while line-2 RS232 and line-2 RS485 data serial ports are multiplexed; that is, either line-2 RS232 or line-2 RS485 data serial port can be used at one time. -
Page 12: Power
Figure 7 GND 4.4 Power According to power input requirements, connect the power cable with the 3-pin 3.81mm-spacing plug-in terminal block. Note: 0.75mm <Cross-sectional area of the power cable<2.5mm Grounding resistance: <5Ω 3-pin 3.81mm-spacing power terminal block Figure 8 lists the pin number of 3-pin 3.81mm-spacing power terminal block. -
Page 13: Leds
Positive power supply Protection ground Wiring and mounting Step 1: Remove the power terminal block from the device. Step 2: Insert the power cable into the power terminal block according to terminal Table 5 lists the definitions of 3-pin 3.81mm power block to fix the power cable. -
Page 14: Product Configuration Information
No data transmission. 6 Product Configuration Information Table 7 lists the models supported by KOM200. Table 7 KOM200 Configuration Model Interface Power One fiber port SM (MM) FC/ST/SC 12DCW KOM200-1S/M-232/422 connector, one-line RS232 serial port, 48 DC one-line RS422 serial port... - Page 15 Weight: 0.3kg Power consumption: <3W Environmental Limits Operating temperature: -40℃ to +85℃ Storage temperature: -40℃ to +85℃ Ambient relative humidity: 5% to 95% (non-condensing) Warranty 5 years For more information about KYLAND products, please visit our website: http://www.kyland.ru/...
